Запчасти Case IH MAGNUM 340 (37.120.AF[05]) - BRACKET, STABILIZER, HEAVY DUTY AXLE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

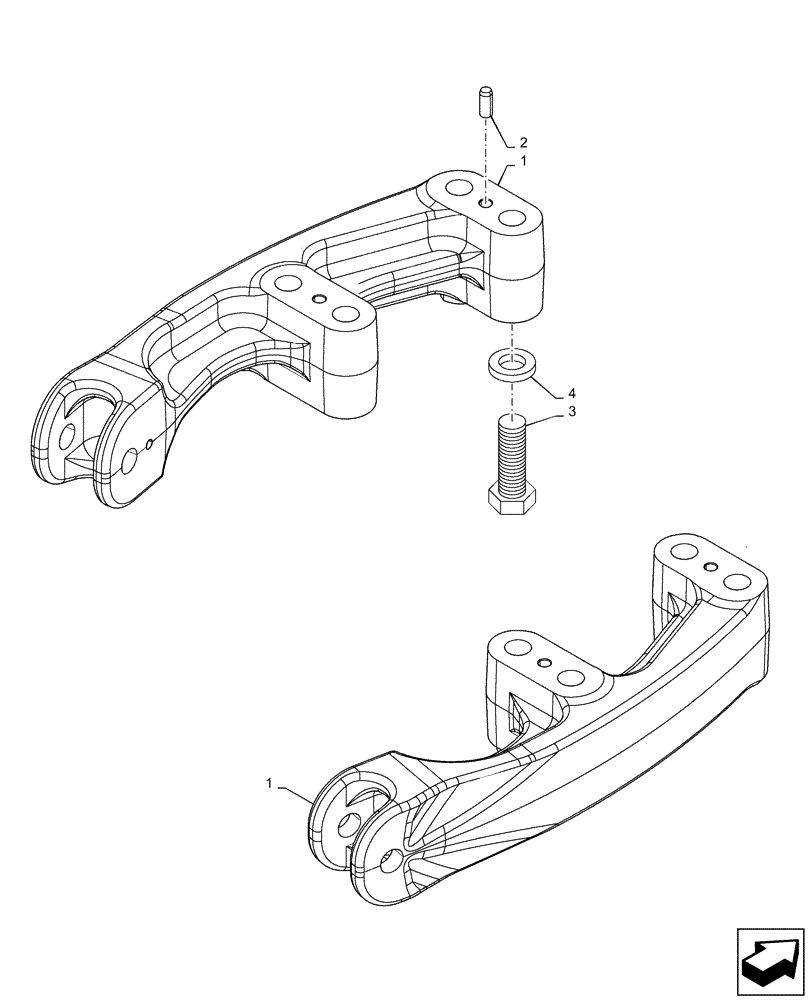

Схема запчастей Case IH MAGNUM 340 - (37.120.AF[05]) - BRACKET, STABILIZER, HEAVY DUTY AXLE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
4
1
1
2
3

Артикул

Название

Примечание

Количество

1

84559813

BRACKET

Stabilizer Mounting, HD Axle

2шт.

2

86978768

DOWEL,M12 x 30mm L

4шт.

3

827-24140

BOLT,Hex, M24 x 3 x 140mm, Cl 10.9

8шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

8шт.

Выбрано товаров: 4
