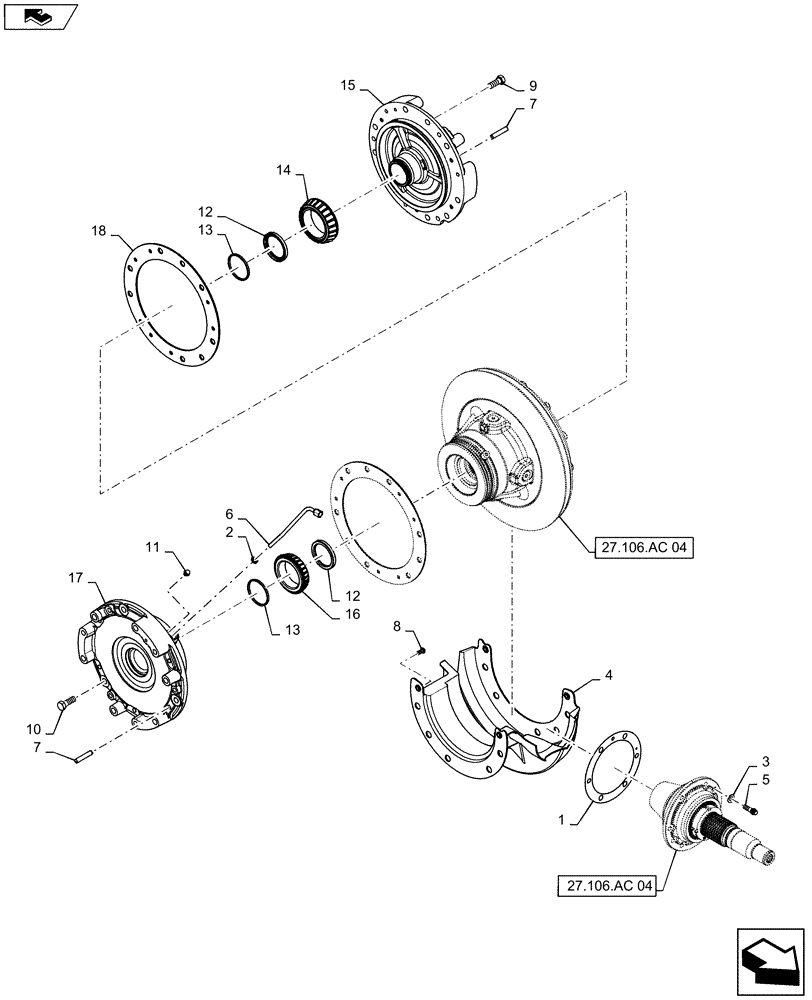

Запчасти Case IH MAGNUM 340 (27.106.AC[03]) - POWERSHIFT - TRANSMISSION DIFFERENTIAL ASSY - 315 - 340 (27) - REAR AXLE SYSTEM

1

87497809

SHIM KIT

Pinion Setting

1шт.

2

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

3

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

6шт.

4

84379827

SHIELD

Bevel Ring Gear

1шт.

5

566-12035

12 PT SCREW,Flg, M12 x 35mm, Cl 12.9

6шт.

6

409738A1

TUBE

Diff Lock Presssure

1шт.

7

136433A1

DOWEL,M12 x 65mm, HDN

10шт.

8

84405128

HEX SOC SCREW,M10 x 1.5 x 20mm, Cl 10.9

4шт.

9

628-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

3шт.

10

628-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

3шт.

11

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

1шт.

12

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

Oil

2шт.

13

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

Diff

2шт.

14

67250C1

ROLLER BEARING,89.99mm ID x 35mm W

1шт.

15

84142455

CARRIER

LH

1шт.

16

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

17

47572487

BEARING CARRIER

RH

1шт.

18

84374129

SHIM KIT

Diff Setting

1шт.
