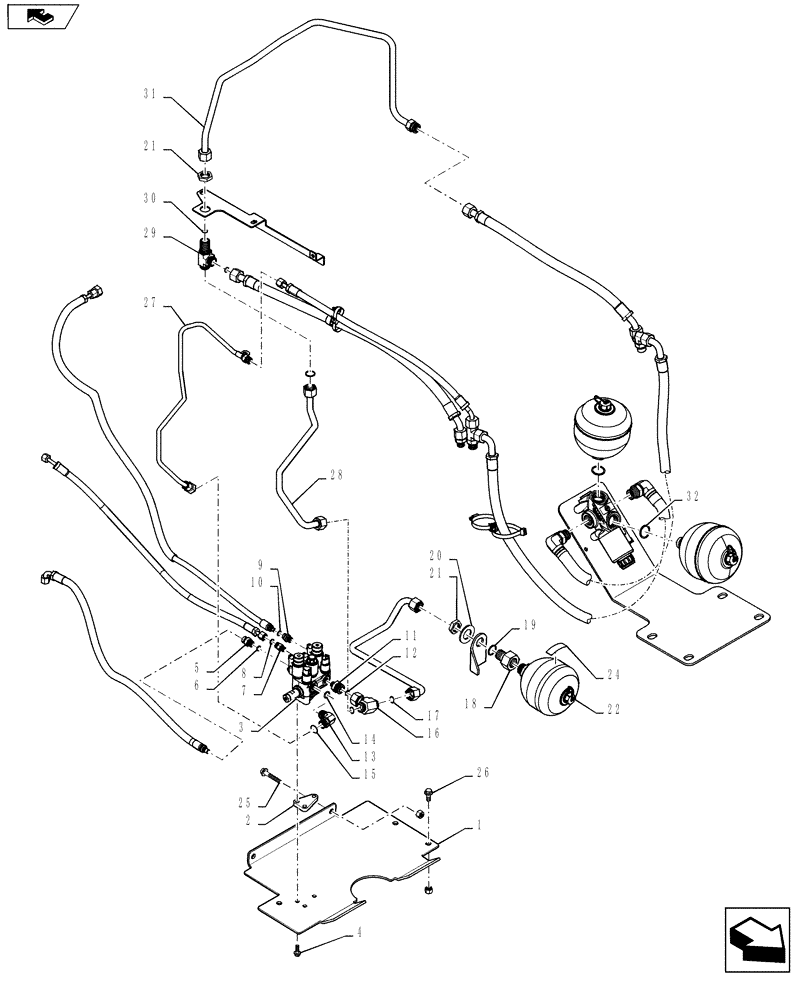

Запчасти Case IH MAGNUM 340 (25.122.AL[03]) - DANA AXLE - HYDRAULIC SYSTEM, CLASS V, SUSPENDED MFD AXLE-MAGNUM 290,315,340 (25) - FRONT AXLE SYSTEM

1

84281150

BRACKET

Valve Mounting

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE, Valve Spacer

1шт.

3

87668716

VALVE

Assembly, Suspended Axle Control

1шт.

4

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

3шт.

5

87331075

HYD CONNECTOR,M18 x 1.5 Male ORB x -08 Fem STC

Inc. 6

1шт.

6

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

87602611

HYD CONNECTOR,M16 x 1.5 Male ORB x -06 Fem STC

Inc. 8

1шт.

8

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

9

223971A1

CHECK VALVE,11/16" - 16 ORFS x M14 x 1.5 ORB

Trailer Brake Load Sense, Inc. 10

1шт.

10

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11

87493695

FITTING

Inc. 12

1шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

700-385

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Inc. 14, 15

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

16

87328818

TEE

Inc. 17

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

18

87704070

ADAPTER

Inc. 19

1шт.

19

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

20

495-11138

WASHER,1 1/4", SAE

1шт.

21

701-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

22

87497534

ACCUMULATOR

2 Liter

1шт.

23

87493290

TUBE,0.75" OD

1шт.

24

82029752

DECAL

1шт.

25

844-12070

BOLT,Hvy Hex, M12 x 70mm, Cl 8.8

2шт.

26

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

27

84257242

TUBE

Suspended Axle Valve, Port A

1шт.

28

84257243

TUBE

Suspended Axle Valve, Port B

1шт.

29

87017595

UNION TEE

Inc. 30

1шт.

30

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

31

84349580

TUBE

Suspended Axle Valve, Port B, Upper

1шт.

32

84160815

SEALING RING

SEALRING

1шт.
