Запчасти Case IH MAGNUM 340 (25.122.AB[02]) - VAR - 429199 CNH CYLINDER, AXLE SUSPENSION, CLASS 5 (25) - FRONT AXLE SYSTEM

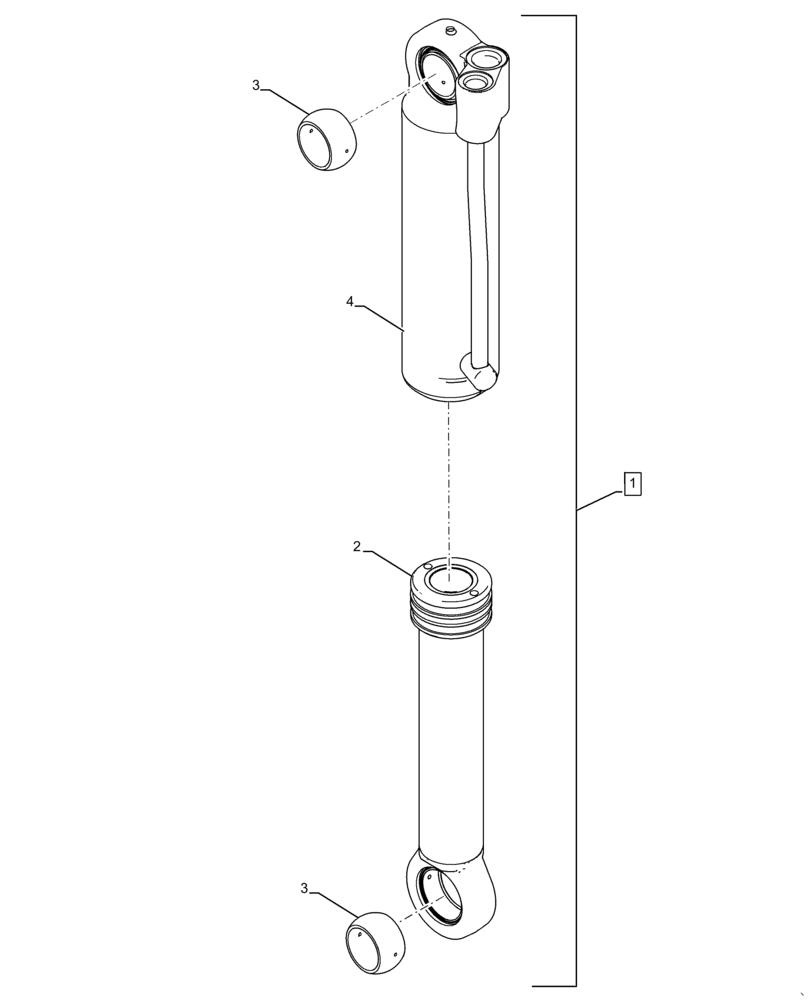

Схема запчастей Case IH MAGNUM 340 - (25.122.AB[02]) - VAR - 429199 CNH CYLINDER, AXLE SUSPENSION, CLASS 5 (25) - FRONT AXLE SYSTEM
3
4
2
1
3

Артикул

Название

Примечание

Количество

1

87696280

CYLINDER

HYD, SUSP, CL 5 RH. Incl 2 - 4

1шт.

1

87696281

CYLINDER,Double Acting, 63mm Rod, 219mm Stroke

HYD, SUSP, CL 5 LH. Incl 2 - 4

1шт.

2

84184318

PISTON ROD

ASSY

1шт.

3

84184319

SPHERICAL BEARING,45mm ID x 88mm OD x 32mm W

BEARING, SPHERICAL ASSY, HYDRAULIC CYLINDER

2шт.

4

84184320

HYDRAULIC CYLINDER

ASSY LH

1шт.

4

84184321

HYDRAULIC CYLINDER

ASSY RH

1шт.

Выбрано товаров: 6
