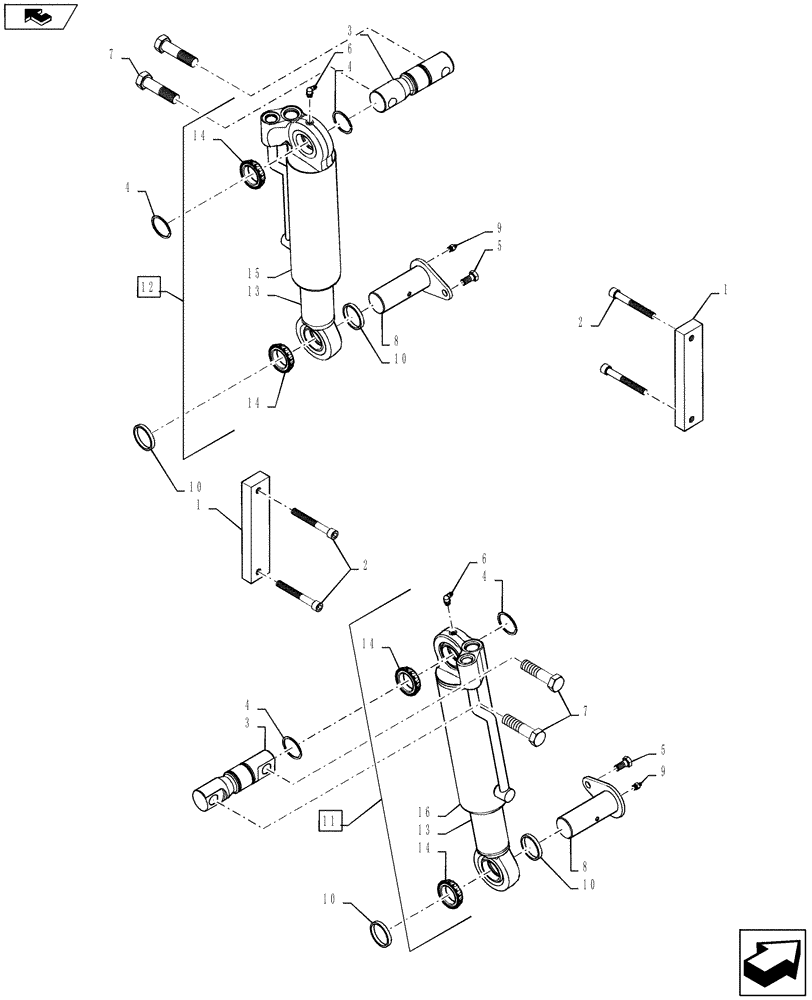

Запчасти Case IH MAGNUM 340 (25.100.BB[06]) - VAR - 429199 DANA FRONT AXLE SUSPENSION CYLINDERS, CLASS 5 (25) - FRONT AXLE SYSTEM

1

84154322

PLATE

Roller Guide

2шт.

2

863-12100

HEX SOC SCREW,M12 x 100mm, Cl 12.9

4шт.

3

87695275

PIN

Upper Cylinder Mount

2шт.

4

101-11177

SNAP RING,#177, 1.657", Ext

4шт.

5

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

6

716472R91

LUBE NIPPLE,90 Degree, M10 x 1

2шт.

7

827-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

4шт.

8

87696365

PIN,45mm OD x 118mm L

Suspended Cylinders

2шт.

9

933781R1

LUBE NIPPLE,M10 x 1

2шт.

10

87696368

SPACER

Cylinder Rod Pin

4шт.

11

87696280

CYLINDER

Right Hand, Incl 13, 14, 16; Seals Included with Rod Assy

1шт.

12

87696281

CYLINDER,Double Acting, 63mm Rod, 219mm Stroke

Left Hand, Incl 13 - 15; Seals Included with Rod Assy

1шт.

12

87696281R

REMAN-HYD CYLINDER

MAGNUM 260, MAGNUM 290, MAGNUM 235, MAGNUM 315, MAGNUM 340, All TRACTOR TIER 4A, Left Hand, Rod Assy

1шт.

12

87696281C

CORE-HYD CYLINDER

Return Number

1шт.

13

84184318

PISTON ROD

1шт.

14

84184319

SPHERICAL BEARING,45mm ID x 88mm OD x 32mm W

Incl Snap Ring NSS

2шт.

15

84184320

HYDRAULIC CYLINDER

Left Hand

1шт.

16

84184321

HYDRAULIC CYLINDER

Right Hand

1шт.
