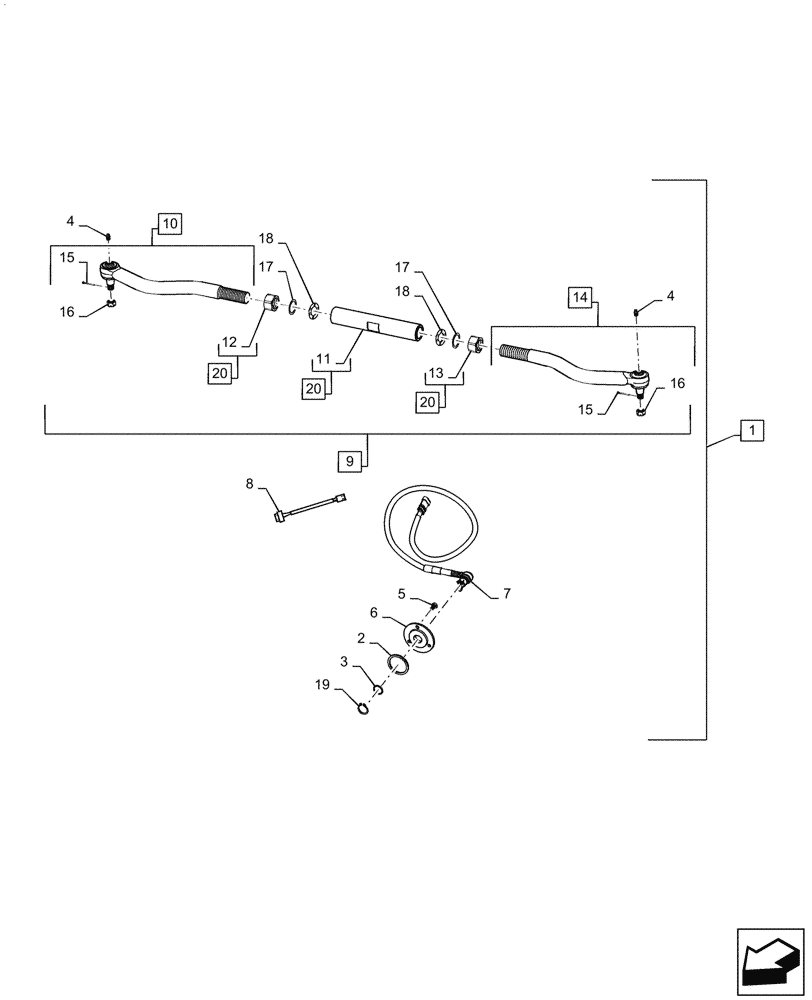

Запчасти Case IH MAGNUM 340 (25.100.AD[09]) - VAR - 420277, 429199 DANA TIE-ROD AND STEERING SENSOR, CLASS 5 (25) - FRONT AXLE SYSTEM

1

87714059

AXLE

Complete With Differential And Planetaries, Remaining parts on Figure 25.100.AD 08

1шт.

87714059R

REMAN-AXLE DIFFERENT

MAGNUM 235, MAGNUM 260, MAGNUM 290, MAGNUM 315, MAGNUM 340, All TIER 4A

1шт.

87714059C

CORE-AXLE, MFD

Return Number

1шт.

2

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

3

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

4

87563868

FITTING,M8 x 1.17mm

2шт.

5

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

Sensor Cover

3шт.

6

87674585

COVER

Steer Sensor cable

1шт.

7

87674584

HARNESS

Steer Sensor

1шт.

8

87674613

CABLE EXTENSION

Jumper, Steer Sensor

1шт.

9

87674614

STEERING TIE-ROD

Assy

1шт.

10

87674615

TIE-ROD

Bar, Right, Inc. 15, 16

1шт.

11

NSS

NOT SOLD SEPARAT

TIE ROD, Tube

1шт.

12

NSS

NOT SOLD SEPARAT

NUT, Jam, Right hand Thread

1шт.

13

NSS

NOT SOLD SEPARAT

NUT, Jam, Left Hand Thread

1шт.

14

87674617

TIE-ROD

Bar, Left, Inc. 15, 16

1шт.

15

733-4040

COTTER PIN,M4 x 40

2шт.

16

87455806

NUT

2шт.

17

87715331

SPACER

2шт.

18

87715330

SEAL

2шт.

19

370016

SNAP RING,M17, Ext

Steer Sensor cable

1шт.

20

84228391

ROD

Inc. 11 - 13

1шт.

21

47745781

PIPE PLUG

Magnetic Drain Plug (Not Illustrated)

1шт.
