Запчасти Case IH MAGNUM 340 (21.113.AB[03]) - HD REAR AXLE (21) - TRANSMISSION

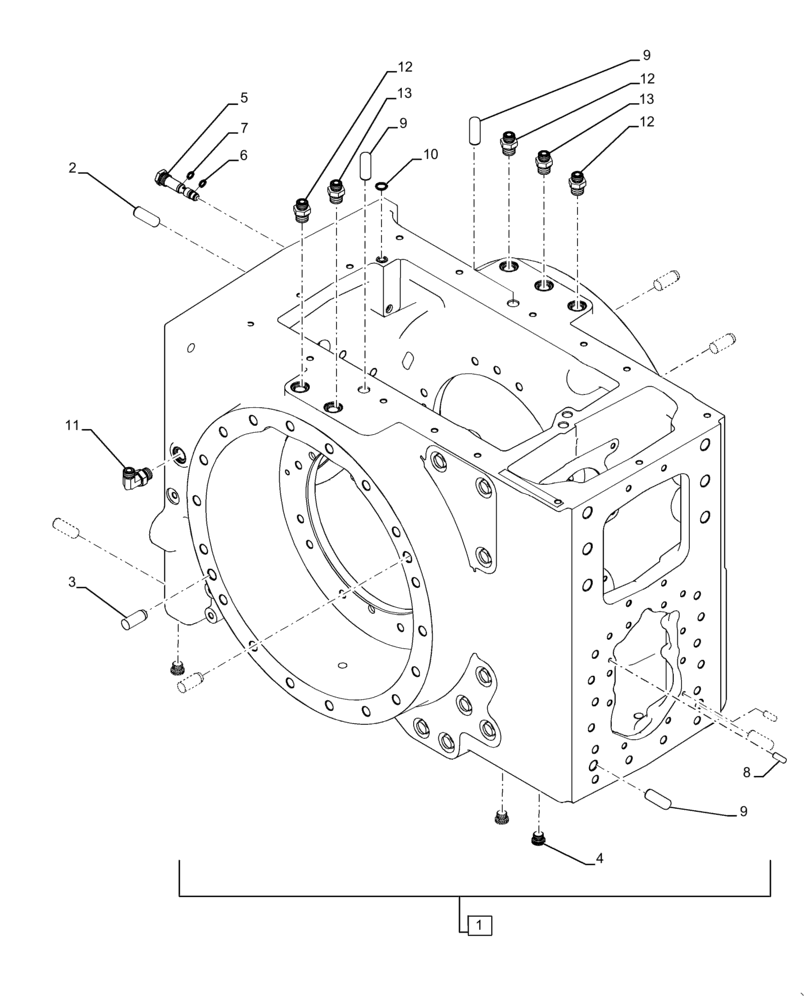

Схема запчастей Case IH MAGNUM 340 - (21.113.AB[03]) - HD REAR AXLE (21) - TRANSMISSION
12
13
9
13
11
6
3
1
9
9
12
10
8
12
7
5
2
4

Артикул

Название

Примечание

Количество

1

47814431

HOUSING

HD Rear Housing Incl 2 - 9

1шт.

2

837-16040

DOWEL,M16 x 40

2шт.

3

87742360

DOWEL,M20 x 50mm, HDN

4шт.

4

86598046

PLUG,M18 x 1.5 ORB

3шт.

5

411075A1

FITTING

Diff Lock Pressure

1шт.

6

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

1шт.

7

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

8

837-10020

DOWEL,M10 x 20

2шт.

9

37-11232

DOWEL,3/4" x 2"

4шт.

10

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

11

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

12

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

3шт.

13

87349824

HYD CONNECTOR,10mm Tube OD, Male, 11/16"-16 ORFS x M22 x 1.5 ORB

2шт.

Выбрано товаров: 13
