Запчасти Case IH MAGNUM 340 (48.138.AB[09]) - AXLE ASSY, REAR IDLER, WIDE - ASN ZFRF03277 (48) - TRACKS & TRACK SUSPENSION

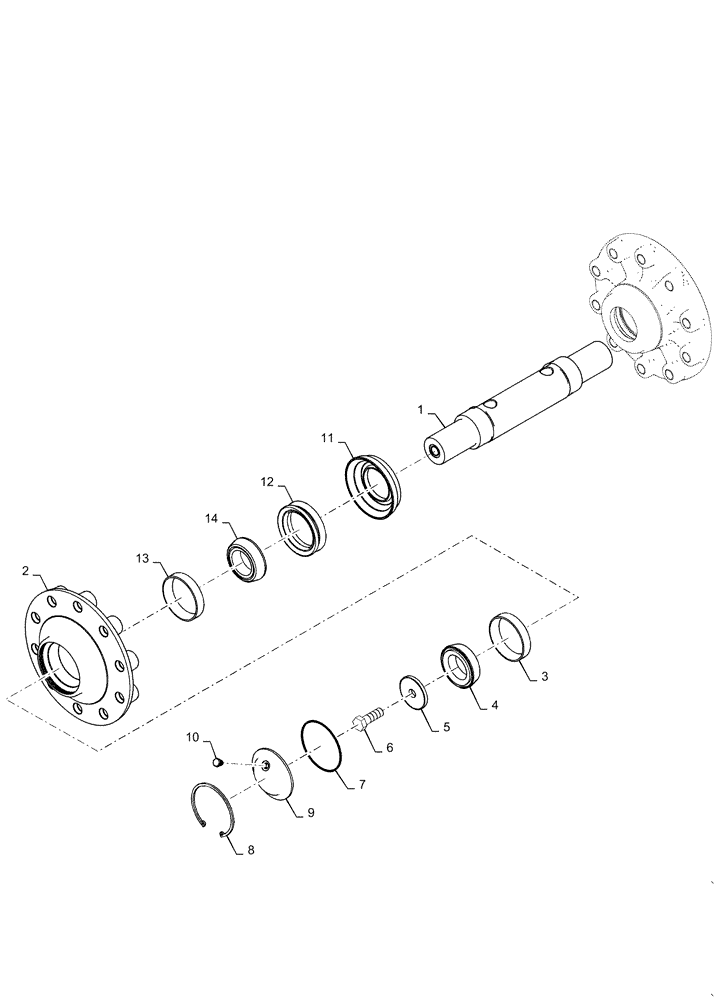

Схема запчастей Case IH MAGNUM 340 - (48.138.AB[09]) - AXLE ASSY, REAR IDLER, WIDE - ASN ZFRF03277 (48) - TRACKS & TRACK SUSPENSION
11
12
7
4
13
9
5
8
2
10
3
14
6
1

Артикул

Название

Примечание

Количество

1

84478718

IDLE SHAFT

Rear

1шт.

2

84478720

HUB

Idler

2шт.

3

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

Outer

2шт.

4

371884A1

BEARING CONE,63.5mm ID x 30.24mm W

Outer

2шт.

5

87387720

RETAINER

82mm ID x 78mm OD

2шт.

6

84303553

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

M20 x 60mm

2шт.

7

238-5426

O-RING,0.275" Thk x 4.625" ID, -426, Cl 5, 75 Duro

2шт.

8

370014

SNAP RING,M130, Internal

2шт.

9

87408174

CAP

Idler Hub, Steel

2шт.

9

47608296

COVER

Idler Hub, Clear

2шт.

10

246406A1

PLUG,M12 x 1.5 ORB

U/W Steel Hub Caps

2шт.

10

86598043

PLUG,M12 x 1.5 ORB

U/W Clear Hub Caps

2шт.

11

84223192

CUP

Seal

2шт.

12

84198542

SEAL,96mm ID x 125.35mm OD x 33mm W

Oil, Idler

2шт.

13

87750407

BEARING CUP,122.24mm OD x 29.72mm W

Inner

2шт.

14

87750406

BEARING CONE,66.68mm ID x 38.35mm W

Inner

2шт.

Выбрано товаров: 16
