Запчасти Case IH MAGNUM 340 (48.138.AB[04]) - AXLE ASSY, REAR IDLER, NARROW - BSN ZFRF03277 (48) - TRACKS & TRACK SUSPENSION

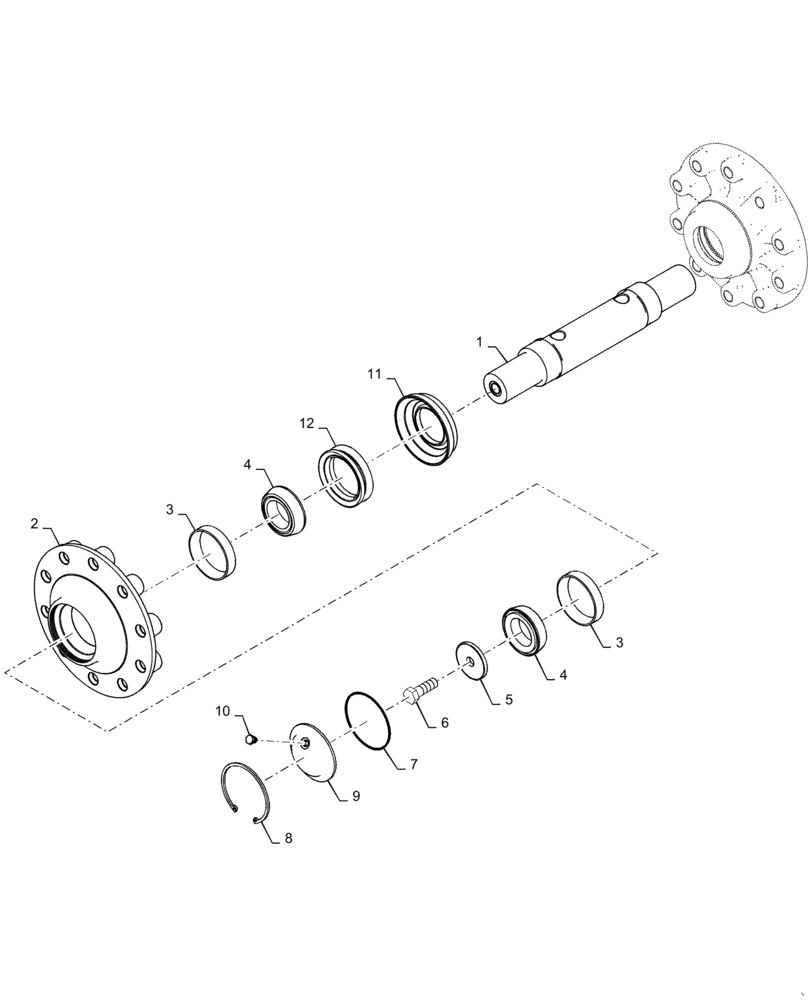

Схема запчастей Case IH MAGNUM 340 - (48.138.AB[04]) - AXLE ASSY, REAR IDLER, NARROW - BSN ZFRF03277 (48) - TRACKS & TRACK SUSPENSION
12
9
6
4
8
3
5
2
3
7
11
4
1
10

Артикул

Название

Примечание

Количество

1

84532229

IDLE SHAFT

Rear

1шт.

2

84532250

HUB

Idler

2шт.

3

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

Bore 112.71mm, Width 23.81mm

4шт.

4

371884A1

BEARING CONE,63.5mm ID x 30.24mm W

4шт.

5

87387720

RETAINER

82mm ID x 78mm OD

2шт.

6

84303553

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

M20 x 60mm

2шт.

7

238-5426

O-RING,0.275" Thk x 4.625" ID, -426, Cl 5, 75 Duro

2шт.

8

370014

SNAP RING,M130, Internal

2шт.

9

87408174

CAP

Idler Hub, Steel

2шт.

9

47608296

COVER

Idler Hub, Clear

2шт.

10

246406A1

PLUG,M12 x 1.5 ORB

U/W Steel Hub Caps

2шт.

10

86598043

PLUG,M12 x 1.5 ORB

U/W Clear Hub Caps

2шт.

11

87304016

CUP,86mm ID x 154mm OD x 35.8mm Thk

Seal

2шт.

12

84573723

SEAL

Oil Idler

2шт.

Выбрано товаров: 14
