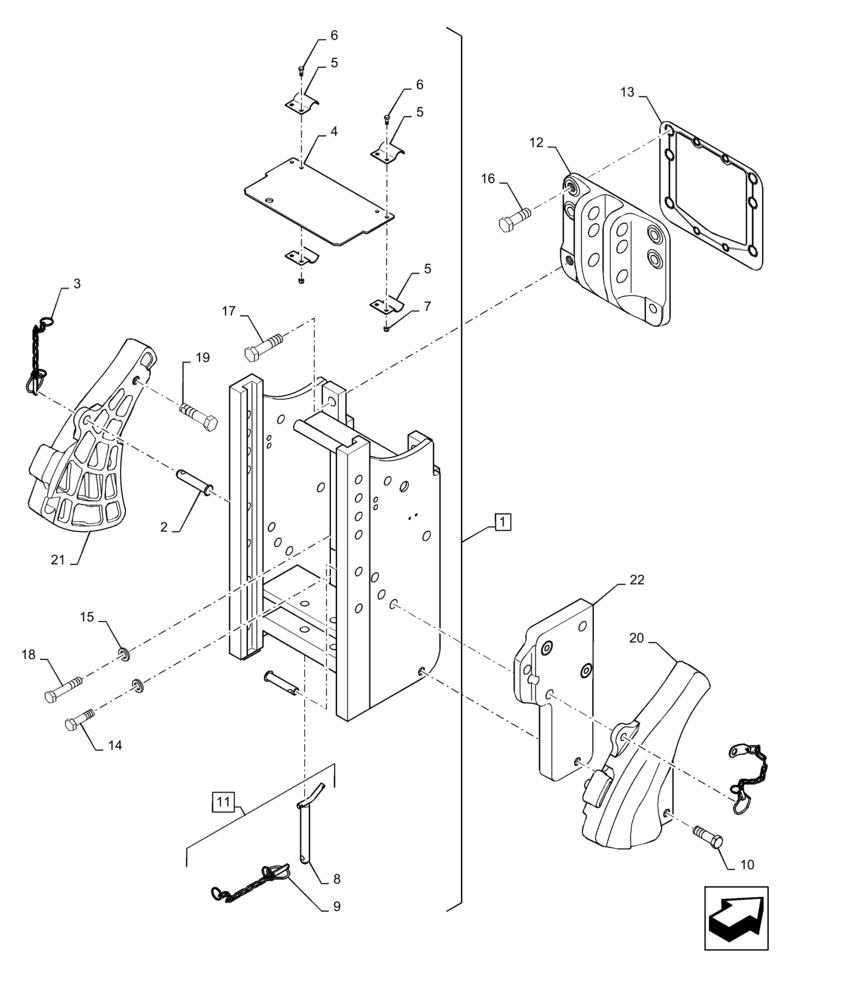

Запчасти Case IH MAGNUM 340 (37.100.AF[06]) - VAR - 429384 - TRAILER HITCH, MANUAL PIN, ITALY ONLY (CBM) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87601701

FRAME ASSY

Incl 4 - 9, 11

1шт.

2

449067A1

PIN,19mm OD x 96mm L

Cam Sway Limit Holder

2шт.

3

449060A1

PIN,19mm OD x 149mm L

Pin Retainer

2шт.

4

449062A1

GUARD ASSY.

Movable PTO

1шт.

5

449066A1

PLATE

PTO Guard Holder

4шт.

6

615-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

7

832-10406

NUT,M6 x 1, Cl 8

4шт.

8

450465A1

PIN

Drawbar Retaining

1шт.

9

449060A1

PIN,19mm OD x 149mm L

Pin Retainer

1шт.

10

87612751

BOLT,Hex, M16 x 40mm, Cl 8.8

M16 x 40mm

6шт.

11

449061A1

PIN ASSY.

Incl 8, 9

2шт.

12

377206A4

HITCH BRACKET

3 Point Link To Trans Housing

1шт.

13

379145A2

GASKET,0.79mm Thk

Upper Link Cover

1шт.

14

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

6шт.

15

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

16

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

4шт.

17

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

2шт.

18

828-16085

BOLT,Hex, M16 x 2 x 85mm, Cl 10.9

2шт.

19

804-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

2шт.

20

293792A5

CAM

Right Hand

1шт.

21

293789A5

CAM

Left Hand

1шт.

22

87616858

SPACER

Cam Limiter

2шт.
