Запчасти Case IH MAGNUM 340 (27.100.AD[02]) - VAR - 429330 - , HYDRAULIC LUBE LINES (27) - REAR AXLE SYSTEM

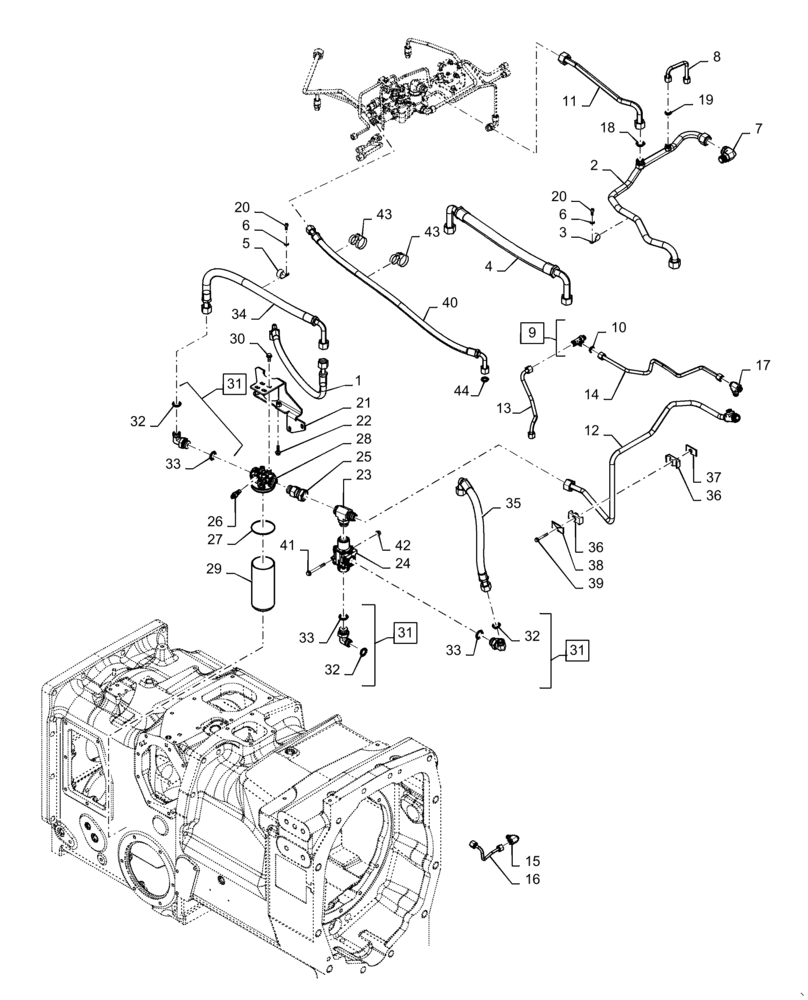

Схема запчастей Case IH MAGNUM 340 - (27.100.AD[02]) - VAR - 429330 - , HYDRAULIC LUBE LINES (27) - REAR AXLE SYSTEM
32
37
38
14
33
43
31
7
13
12
6
39
32
3
11
31
17
44
9
43
29
23
20
33
25
27
18
22
2
31
30
40
5
35
42
15
24
36
36
10
21
20
33
4
19
1
6
26
16
32
28
41
34
8

Артикул

Название

Примечание

Количество

1

84355281

HOSE,15.88mm ID x 700mm L, SAE 100R1

Lube Relief

1шт.

2

84474358

HYD TUBE

Master Clutch Lube

1шт.

3

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

4

84354805

HOSE,25.4mm ID x 680mm L, SAE 100R16

Pump To Filter Inlet

1шт.

5

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

7

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

8

87319223

TUBE,0.50" OD

Range Lube

1шт.

9

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 10

1шт.

10

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

11

84474361

HYD TUBE

Brake Lube Supply

1шт.

12

84340738

TUBE

Oil Cooler Return

1шт.

13

451060A3

TUBE

Odd/Even Lube

1шт.

14

437336A3

HYD TUBE

Dropbox Lube

1шт.

15

700-401

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

16

282278A1

HYD TUBE,0.375" OD, 120, 50 mm Length

Drop Box Rear Bearing Lube

1шт.

17

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

20

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

21

84547851

BRACKET

Filter And Valve Mounting

1шт.

22

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

23

700-404

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

24

84577551

VALVE

Thermostatic Cooler Bypass, Serial Range: -ZGR_03001

1шт.

24

47972636

VALVE

Thermostatic Cooler Bypass, Start Serial: ZGR_03002

1шт.

24

47976594

SERVICE KIT

Thermostatic Cooler Bypass Valve

1шт.

25

84340192

HYD CONNECTOR

M33 x 2" ORB 1-7/16 - 12 Swivel

1шт.

26

1957801C1

PRESSURE SWITCH

Hydraulic Filter

1шт.

27

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

Ring, Friction

1шт.

28

47608787

FILTER HEAD

Filter ABR

1шт.

29

84202794

HYDRAULIC OIL FILTER,Spin On, 9.41"

1шт.

30

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

31

86579698

90 ELBOW,1 3/16"-12 ORFS x M33 x 2 ORB

Incl 32,33

3шт.

32

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

3шт.

33

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

34

84331762

HOSE,19.05mm ID x 800mm L, SAE 100R16

Filter To Filter

1шт.

35

84592181

HOSE

Charge Pump To Bypass Valve

1шт.

36

87000140

CLAMP,Tube, 19.05mm

2 Hole 19.05-19.05mm

1шт.

37

384871A1

PLATE

Hose Clamp Weld

1шт.

38

1347127C1

PLATE

Tube Clamp

1шт.

39

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

40

47627942

HOSE

PTO Lube

1шт.

41

844-10090

BOLT,Hvy Hex, M10 x 90mm, Cl 8.8

2шт.

42

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

2шт.

43

86991000

CLAMP

Dual Tie

2шт.

44

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Выбрано товаров: 46
