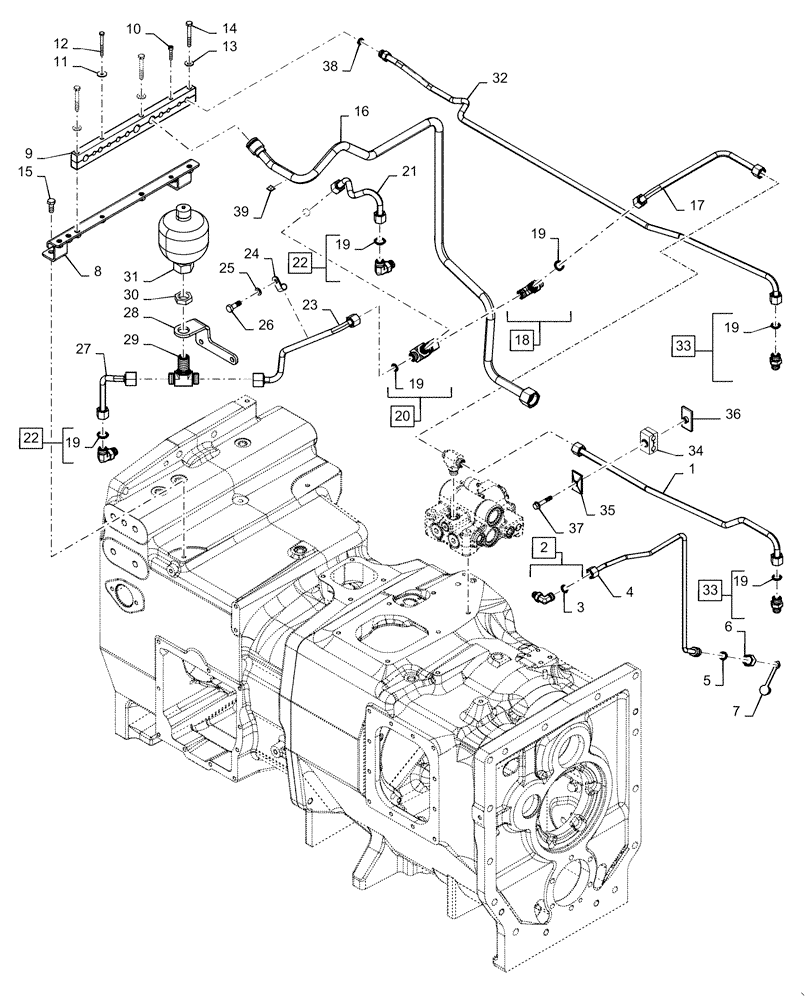

Запчасти Case IH MAGNUM 340 (21.506.BE[01]) - TRANSMISSION - PST - REGULATING SYSTEM (21) - TRANSMISSION

1

84425627

HYD TUBE

PTO / Diff Lock Valve Supply HD

1шт.

2

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 3

1шт.

3

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1.78 x 9.25mm

1шт.

4

84359041

TUBE

Master Clutch Diagnostic From Inching Range Valve

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

322529A1

COUPLING

Diagnostic

1шт.

7

143349A1

DUST CAP

Diagnostic Coupling Cover

1шт.

8

87435455

BRACKET

Tube Clamp Support

1шт.

9

87430951

BAR

HYD Tube Clamp On Speed Housing

1шт.

10

864-6030

HEX SOC SCREW,M6 x 30mm, Cl 8.8

1шт.

11

495-81107

WASHER,.281" x 7/8" x .060"

1шт.

12

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

1шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

14

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

15

615-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

16

84547854

TUBE

Oil Cooler Supply From Cooler Bypass Valve

1шт.

17

433589A1

TUBE

Transmission Regulated Supply

1шт.

18

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 19

1шт.

19

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

7шт.

20

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 19

1шт.

21

308172A1

TUBE,0.5" OD, 158, 37 mm Length

Range Regulated Supply 1/2 To Inching Range Valve

1шт.

22

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 19

2шт.

23

87560257

TUBE,0.5" OD

From Accumulator To Tee

1шт.

24

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

25

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

26

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

1шт.

27

87405121

HYD TUBE,.5" OD

TCV Regulated Supply Lower; From PWM Valve

1шт.

28

86988829

BRACKET

Accumulator Mounting

1шт.

29

701-454

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

1шт.

30

701-919

BHD LOCK NUT,1" - 14

1шт.

31

87730802

ACCUMULATOR,0.75L

PWM Trans Control

1шт.

32

47691933

HYD TUBE

Front Diff Lock Supply

1шт.

33

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 19

2шт.

34

87705202

CLAMP,12.7mm OD Tube x 12.7mm OD Tube

2 Hole 12.7-12.7mm

1шт.

35

384870A1

PLATE

Hose Clamp Cover

1шт.

36

384871A1

PLATE

Hose Clamp Weld

1шт.

37

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

38

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

39

84216688

RUBBER BUTTON

Rubber, Square

2шт.
