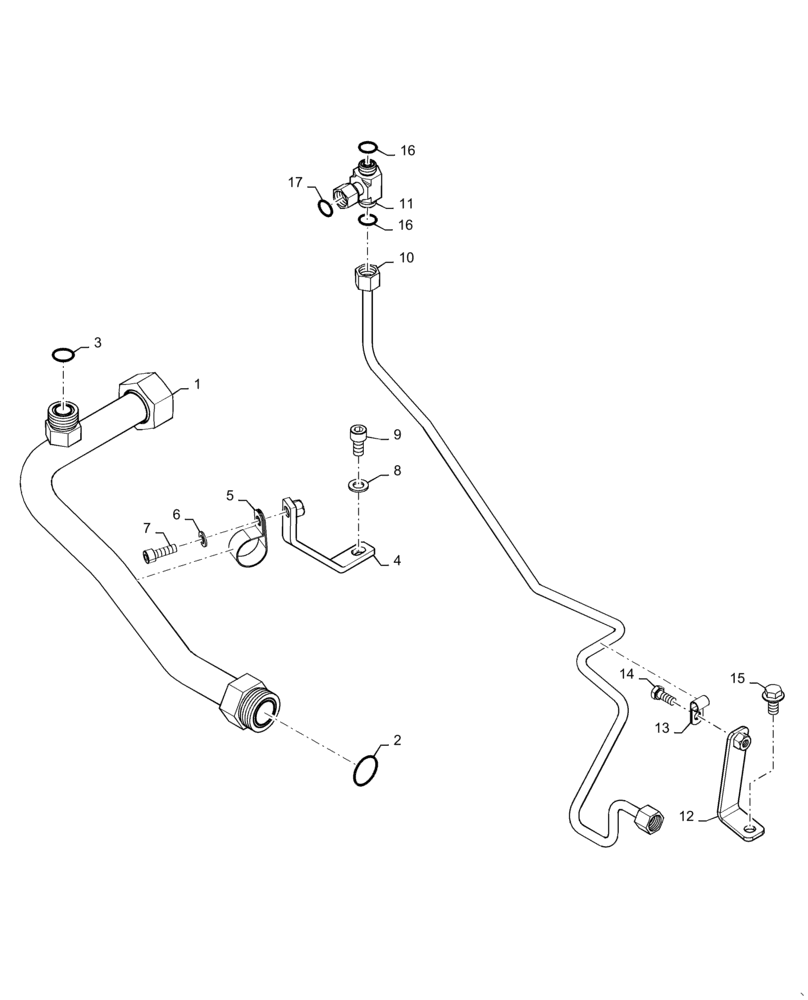

Запчасти Case IH MAGNUM 340 (21.135.AQ[09]) - HIGH PRESSURE CIRCUIT (21) - TRANSMISSION

1

47614566

TUBE

Aux Manifold Return

1шт.

2

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

47614727

BRACKET

Tube Clamp

1шт.

5

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

7

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

9

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

1шт.

10

47649315

HYD TUBE

Aux Manual Load Sense HD

1шт.

11

86591334

TEE,11/16"-16 ORFS x 11/16"-16 Fem

Union Tee

1шт.

12

84522250

BRACKET

Load Sense Tube Clamp

1шт.

13

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

15

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

17

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
