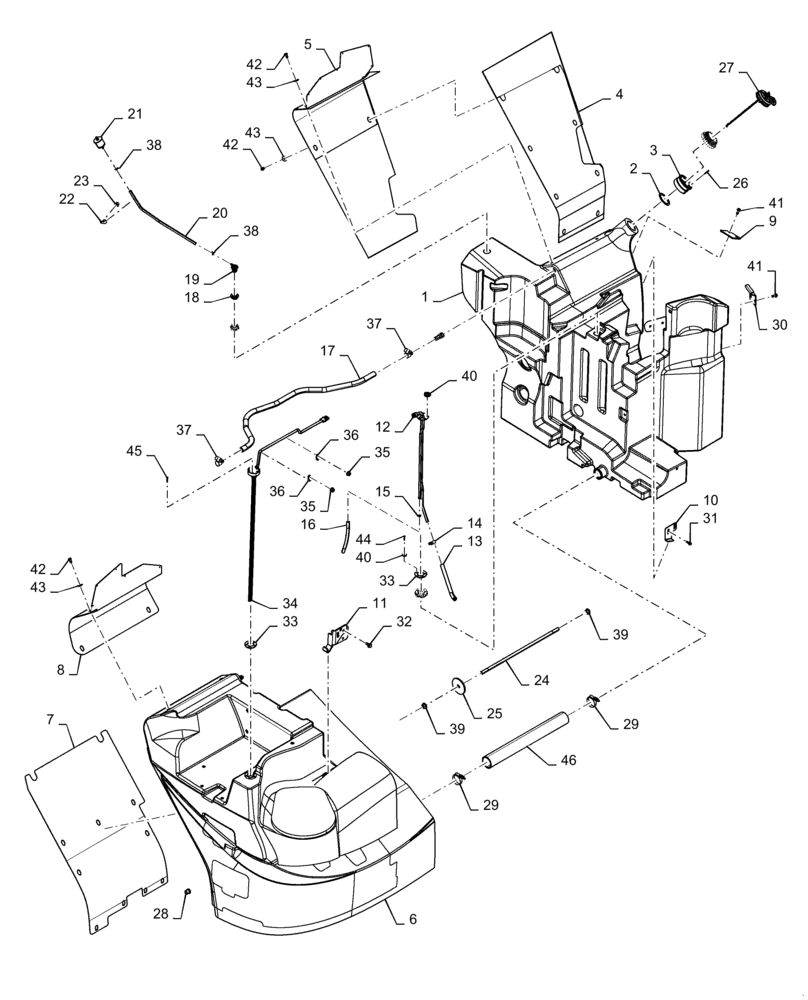

Запчасти Case IH MAGNUM 340 (10.216.AI[03]) - FUEL TANK & ASSOCIATED PARTS (10) - ENGINE

1

47558689

FUEL TANK

LH Track T4B

1шт.

2

47396773

GASKET

Fuel Cap Adapter

1шт.

3

47396772

ADAPTER

Fuel Cap

1шт.

4

47700464

PLATE

Protection, LH Fuel Tank

1шт.

5

47704479

GUARD

LH Mudguard Weldment

1шт.

6

47695935

FUEL TANK

RH Track T4B

1шт.

7

47700461

PLATE

Protection, RH Fuel Tank

1шт.

8

47704470

GUARD

RH Mudguard Weldment

1шт.

9

47434203

PLATE

Fuel Tank Hold Down

1шт.

10

47508404

BRACKET

Fuel Tank Hold Down

1шт.

11

47371495

BRACKET

Fuel Tank Hold Down

1шт.

12

47437558

PIPE

Fuel Supply / Return

1шт.

13

84467774

HOSE

Fuel, Supply

1шт.

14

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

1шт.

15

1348264C1

HOSE CLAMP

Spring Steel

1шт.

16

84361222

HOSE

Radiator, Deaeration

1шт.

17

84466028

HOSE

Tank Air Cross Over

1шт.

18

255094A1

GROMMET

Fuel Tank Roll Over Valve

1шт.

19

275800A1

VALVE STEM

Roll Over Fuel Tank

1шт.

20

275801A1

FUEL HOSE

Fuel Tank Rollover Valve Vent

1шт.

21

87433010

BREATHER

Fuel Tank Vent

1шт.

22

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

23

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

24

47710549

THREADED ROD

RH Tank Support

1шт.

25

47488731

PLATE

Fuel Tank Support

1шт.

26

47429101

SELF-TAP SCREW

6-20 X 3/4"

1шт.

27

47421724

LOCKABLE FUEL CAP

1шт.

28

84466043

DRAIN PLUG

Fuel Tank Drain

1шт.

29

L115548

CLAMP,57.15mm - 79.38mm

2.25 / 3.125 Constant Torque

2шт.

30

47809747

BRACKET

Hold Down Rear

2шт.

31

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

32

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

33

87537695

GASKET

Fuel Sender

2шт.

34

47457712

SENDER UNIT

Fuel Tank Level 35.5 Inch

1шт.

35

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

36

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

37

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

38

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

39

825-2416

FLANGE NUT,M16 x 2, Flg, Cl 8

3шт.

40

86509828

LOCK WASHER,M5

10шт.

41

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

6шт.

42

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

23шт.

43

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

23шт.

44

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

5шт.

45

440-11020

SCREW,Cross Pan Hd, #10-24 x 1 1/4"

5шт.

46

84271159

HOSE,63.5mm ID x 639mm L, SAE 30R6

Straight Cross Over Tube

1шт.

47

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Not Illustrated

2шт.
