(88.100.44[08]) - DIA KIT, TRACTOR, 12 INCH (305MM) FRONT DUAL MFD SPACER KIT

Запчасти Case IH MAGNUM 340 (88.100.44[08]) - DIA KIT, TRACTOR, 12 INCH (305MM) FRONT DUAL MFD SPACER KIT (88) - ACCESSORIES

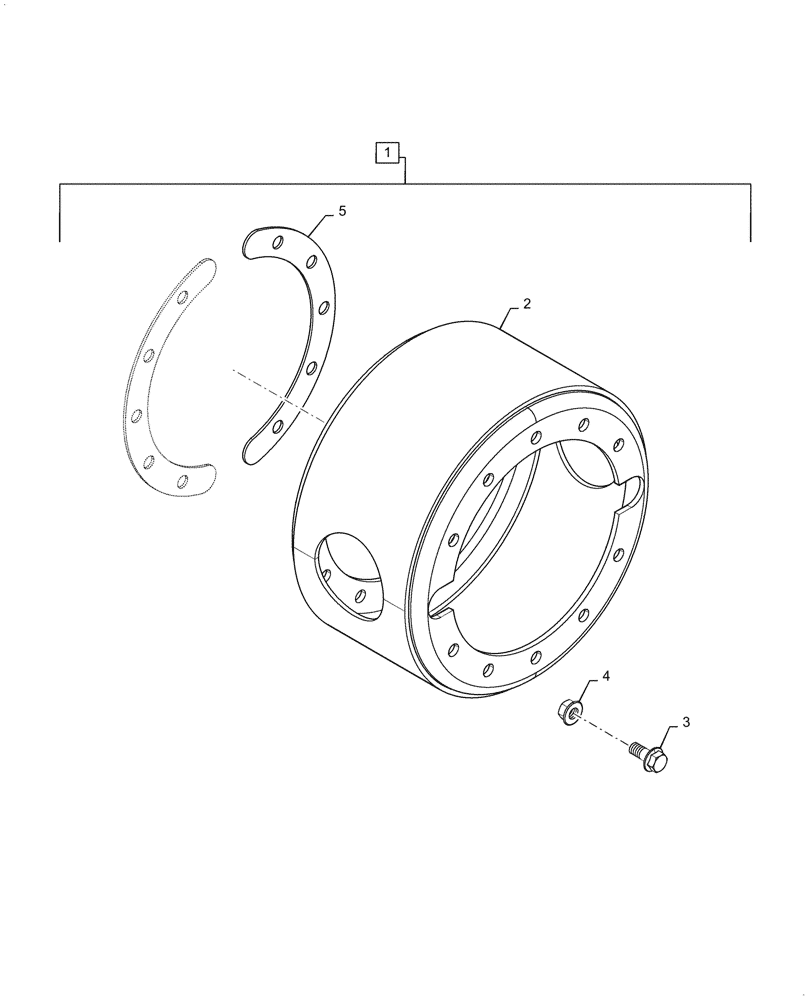

Схема запчастей Case IH MAGNUM 340 - (88.100.44[08]) - DIA KIT, TRACTOR, 12 INCH (305MM) FRONT DUAL MFD SPACER KIT (88) - ACCESSORIES
1
5
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719684016

DIA KIT, ADD PROD

12 IN (305 MM) Front Dual MFD Spacer, Incl 2 - 5

1шт.

2

84136587

SPACER

12 IN (305 MM) MFD Dual

2шт.

3

283120A1

BOLT

20шт.

4

253212A1

NUT,M20 x 1.5, Class 10

20шт.

5

365372A1

SHIM,374mm ID x 476mm OD x 4.78mm Thk

MFD Spacer, 34 IN Wheel

4шт.
