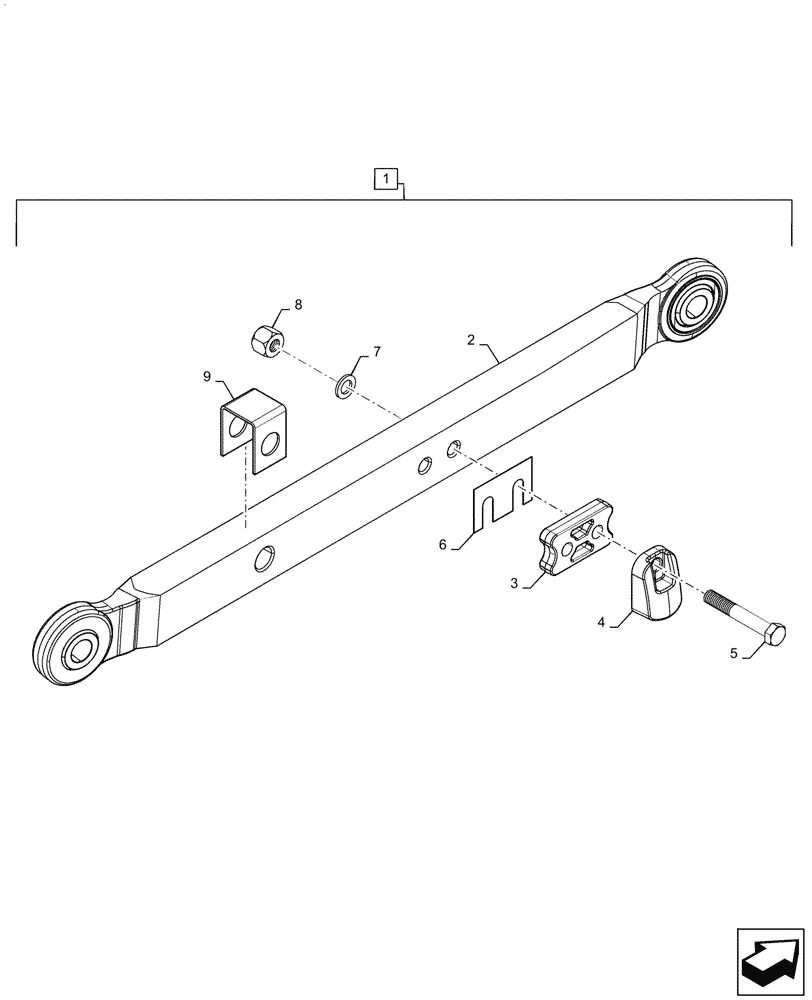

Запчасти Case IH MAGNUM 340 (88.100.37[07]) - DIA, KIT, LONG LOWER LINK (88) - ACCESSORIES

1

87314210

LOWER LINK

Kit, Long Lower Link, Incl 2 - 9

1шт.

2

433469A1

LOWER LINK

Assy, Solid Lower (SPCL)

2шт.

3

301927A1

SPACER

Cam Bumper CAT 3

2шт.

4

301248A2

BUMPER

Cam Sway Limiter

2шт.

5

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

4шт.

6

189946A1

SHIM,76mm OD x 1.03mm Thk

Cam Bumper

4шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

8

832-10420

NUT,M20 x 2.5, Cl 8

4шт.

9

293002A1

SPACER

U Shap Claw Link

2шт.
