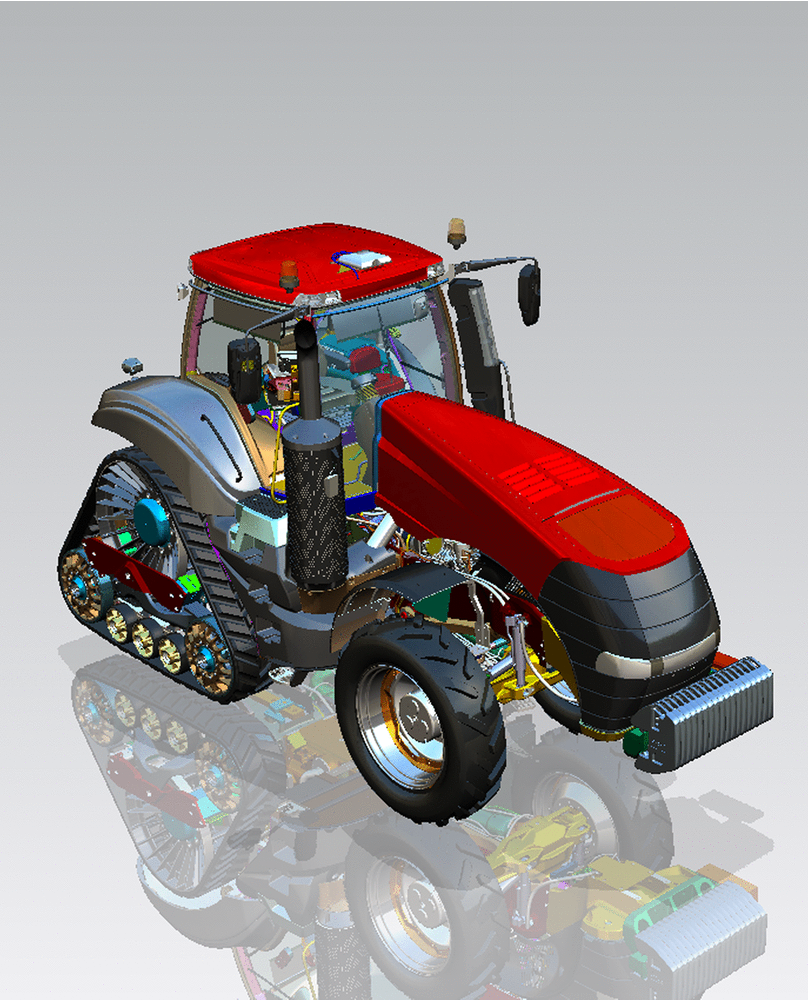

Запчасти Case IH MAGNUM 340 (05.100.01[01]) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

1

47430047

BELT

Main Poly -V with A/C, 2076mm, 8 Rib

1шт.

2

84257945

BELT

Viscous Fan Drive, 1936mm, 8 Rib

1шт.

3

504089127

BREATHER

Crankcase

1шт.

4

47364243

FILTER

DENOX DEF Supply Module

1шт.

5

87684088

CAB FILTER,CAB

1шт.

6

87356547

AIR FILTER

Secondary

1шт.

7

84191182

AIR FILTER,398mm L x 261mm W x 237mm Thk, Paper

Primary

1шт.

8

504179764

ENGINE OIL FILTER

1шт.

9

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

1шт.

10

47411638

FUEL FILTER

In Line

1шт.

11

84240234

HYDRAULIC OIL FILTER,Spin on, 14.48"

CVT

1шт.

12

84487937

HYDRAULIC OIL FILTER,Spin On, 14.48" OAL

PST

1шт.

13

84202794

HYDRAULIC OIL FILTER,Spin On, 9.41"

1шт.

14

293615A1

FILTER

1шт.

15

87267363

AIR FILTER,Cab Charcoal Recirculation

1шт.

16

5801439820

FUEL FILTER

Fuel

1шт.

17

1348335C1

SCREEN

Pump Inlet

1шт.

18

84367903

FILTER

Urea in Line Supply

1шт.
