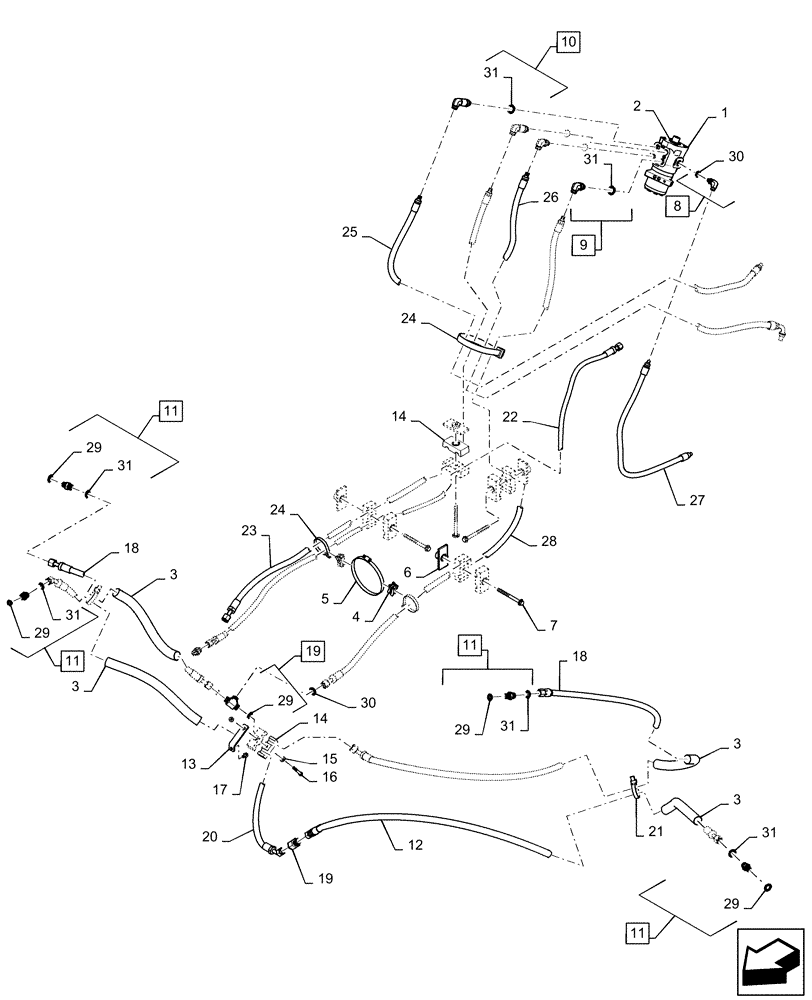

Запчасти Case IH MAGNUM 340 (41.200.AT[09]) - STEERING ASSY, CL 5, STANDARD & SUSPENDED AXLE - EU (41) - STEERING
![Схема запчастей Case IH MAGNUM 340 - (41.200.AT[09]) - STEERING ASSY, CL 5, STANDARD & SUSPENDED AXLE - EU (41) - STEERING](https://partsell.ru/storage/images/caseih/5166748.png)
№
Артикул
Название
Примечание
Количество
1
87618651
STEERING VALVE
ASSY, Steering Pump, 74/444 CC
1шт.
1
84591189
STEERING VALVE
ASSY, Steering Pump, 94/466 CC
1шт.
2
87454545
SEAL KIT
Steering Pump
1шт.
3
87707952
PROTECTIVE SLEEVE,33.5mm ID x 432mm L
4шт.
4
86991001
SPACER
Swivel Saddle Mount
2шт.
5
214-14104
HOSE CLAMP,155.45mm - 177.8mm
1шт.
6
384871A1
PLATE
Hose Clamp
4шт.
7
814-8070
BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8
4шт.
8
87401122
ELBOW
Incl 30
1шт.
9
87401123
ELBOW
Incl 31
2шт.
10
87401124
90 ELBOW
Incl 31
2шт.
11
700-102
HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl 29, 31
4шт.
13
87689261
BRACKET
Steering Hose Clamp
1шт.
14
87000151
CLAMP
Twin
5шт.
15
895-15008
WASHER,9mm ID x 20mm OD x 1.6mm Thk
1шт.
16
814-8060
BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8
1шт.
17
844-8016
BOLT,Hex, M8 x 16mm, Cl 8.8
1шт.
18
87705794
HOSE,12.7mm ID x 480mm L, SAE 100R17
Front Axle Steering Crossover
2шт.
19
701-409
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS
Incl 29
2шт.
20
87686533
HOSE,12.7mm ID x 575mm L, SAE 100R17
Front Axle Steering Crossover
1шт.
21
86991009
CABLE TIE,222mm L, Nylon
509mm L
2шт.
23
84212580
HOSE ASSY.,12.5mm ID x 2377mm L, SAE 100R17
Right Hand, STC
1шт.
24
86991007
CABLE TIE,509mm L
CABLE STRAP
3шт.
25
84352407
HYDRAULIC HOSE
Steering Return
1шт.
26
84127337
HOSE,12.7mm ID x 750mm L
Steering Supply
1шт.
27
84127336
HOSE,9.53mm ID x 825mm L
Steering Signal
1шт.
28
84212580
HOSE ASSY.,12.5mm ID x 2377mm L, SAE 100R17
Left Hand, STC
1шт.
29
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
10шт.
30
637-63093
O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro
1шт.
31
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
8шт.
