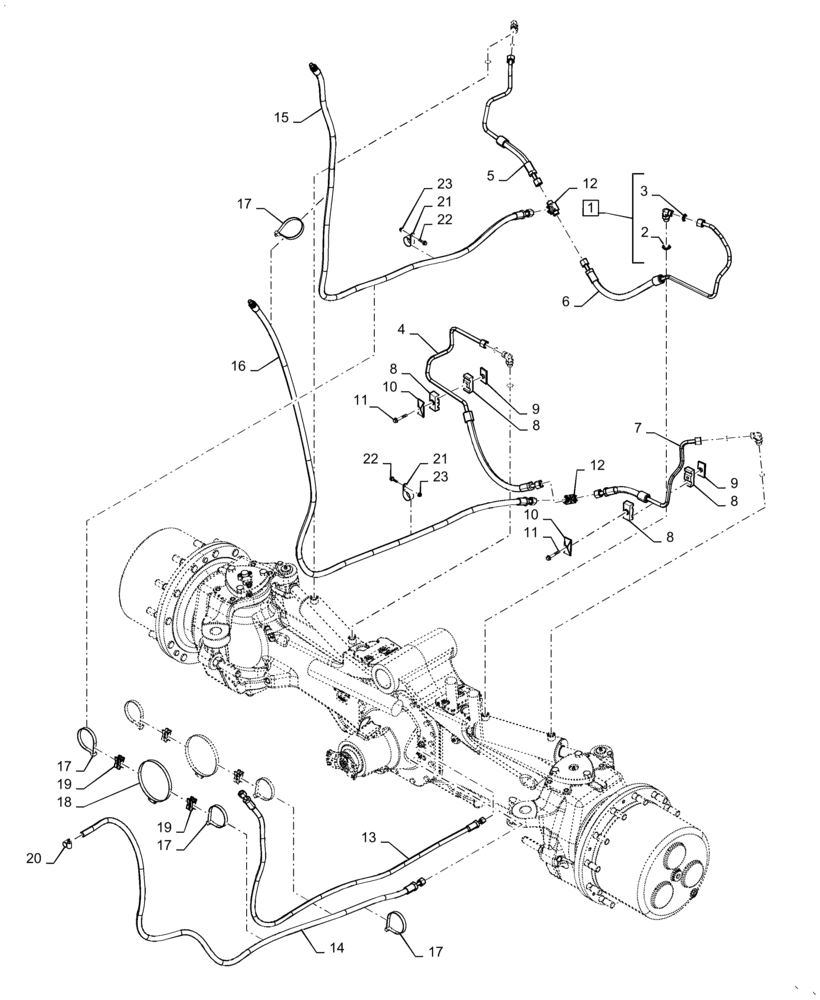

Запчасти Case IH MAGNUM 340 (41.200.AT[08]) - CVT - STEERING SYSTEM - SUSPENDED CNH AXLE CL 5 (41) - STEERING

1

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 2, 3

4шт.

2

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

3

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

4

84582659

HYD TUBE

LH Cyl Base Steering

1шт.

5

84582660

HYD TUBE

LH Cyl Rod Steering

1шт.

6

84582661

TUBE

RH Cyl Base Steering

1шт.

7

84582663

TUBE

RH Cyl Rod Steering

1шт.

8

87000149

CLAMP

2 Hole 12.7-12.7 Mm Dia Ribbed

2шт.

9

384871A1

PLATE

Hose Clamp Weld

2шт.

10

1347127C1

PLATE

Tube Clamp

2шт.

11

844-8050

BOLT,M8 x 1.25 x 50mm, Cl 8.8

2шт.

12

701-409

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

2шт.

13

47398724

HOSE,9.53mm ID x 1800mm L

Front Axle Diff Lock Supply Cvt

1шт.

14

47577610

HOSE

Front Diff Lock Return CVT

1шт.

15

47727139

HYDRAULIC HOSE

Steering LH/RH STC

1шт.

16

84362821

HOSE,12.7mm ID x 2452mm L, SAE 100R17

Steering RH STC

1шт.

17

86991007

CABLE TIE,509mm L

20 X .28 In, Nylon, Black

6шт.

18

214-14104

HOSE CLAMP,155.45mm - 177.8mm

2шт.

19

86991001

SPACER

Dual Swivel Saddle

4шт.

20

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

21

515-22317

CLAMP,1 1/4", Insul, 5/16" Bolt

2шт.

22

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

23

825-5146

SERRATED NUT,M6, Flg Ser

2шт.
