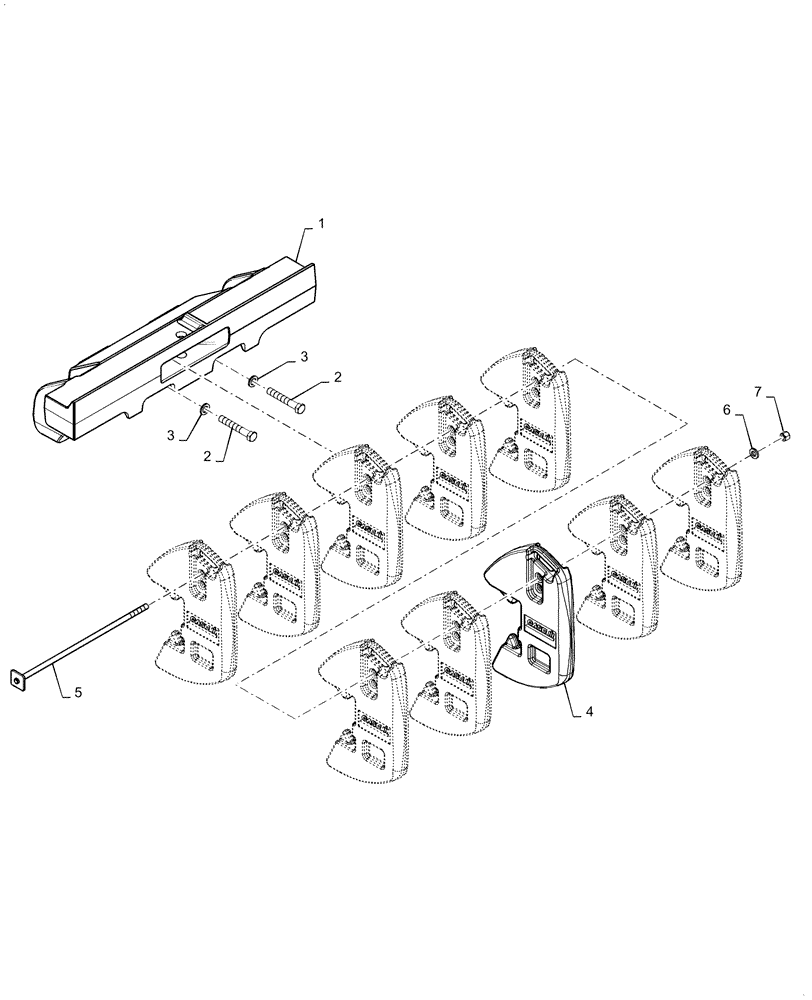

Запчасти Case IH MAGNUM 340 (39.140.AF[01]) - VAR- 420349 - FRONT WEIGHTS - 10X45 KG (39) - FRAMES AND BALLASTING

1

84232531

BRACKET, SUPPORTING

Front Weight

1шт.

2

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

8шт.

3

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

4

405846A3

WEIGHT

Front, 45 Kg (100 Lb)

10шт.

5

87307686

TRUSS ROD

1шт.

6

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

1шт.

7

832-10416

NUT,M16 x 2, Cl 8

1шт.
