Запчасти Case IH MAGNUM 340 (21.506.AQ[01]) - VAR - 429334, 429335 - TRANSMISSION - CVT - HIGH PRESSURE HYDRAULIC CIRCUIT (21) - TRANSMISSION

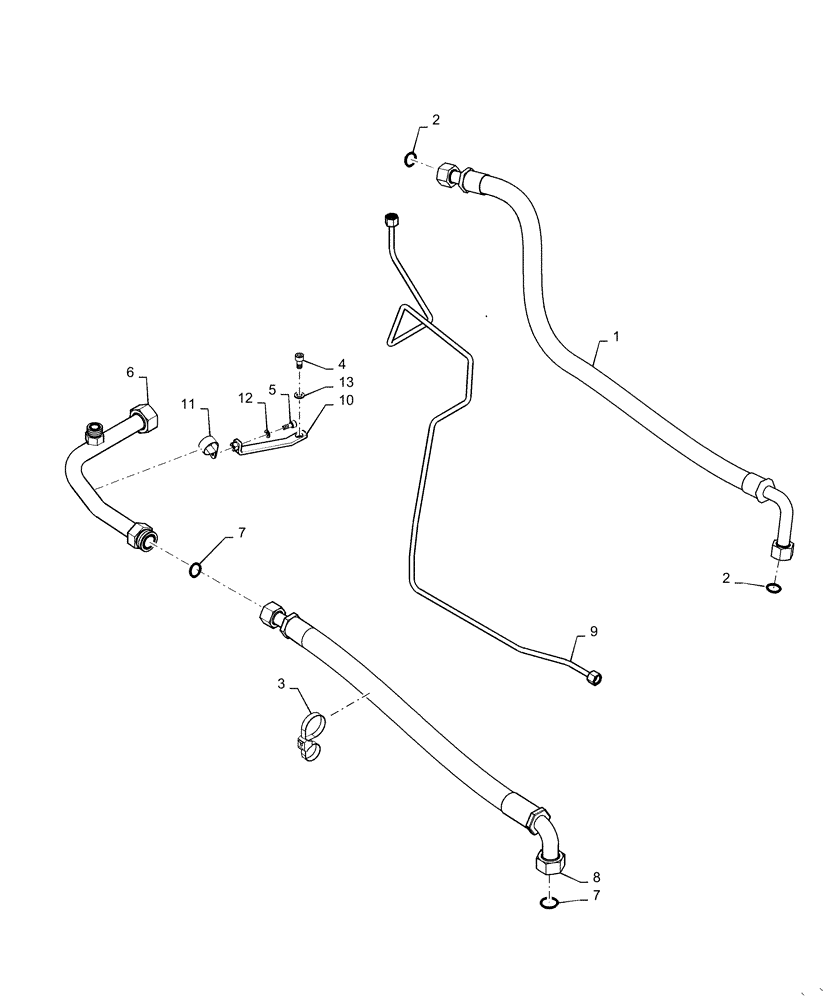

Схема запчастей Case IH MAGNUM 340 - (21.506.AQ[01]) - VAR - 429334, 429335 - TRANSMISSION - CVT - HIGH PRESSURE HYDRAULIC CIRCUIT (21) - TRANSMISSION
4
3
13
7
2
1
5
7
6
11
12
9
8
2
10

Артикул

Название

Примечание

Количество

1

84425558

HYDRAULIC HOSE,25.4mm ID x 1400mm L, SAE 100R17

Pump Out to Steering Priority Valve, CVT

1шт.

2

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

3

86991000

CLAMP

Dual Tie

2шт.

4

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

1шт.

5

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

1шт.

6

47614566

TUBE

Aux Manifold Return

1шт.

7

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

8

47614563

HOSE

Aux Manifold Return

1шт.

9

47496250

HYD TUBE

Pump Load Sense

1шт.

10

47614727

BRACKET

Tube Clamp

1шт.

11

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

Выбрано товаров: 13
