(04-12) - HARNESS - STEERING - MAGNUM 335

Запчасти Case IH MAGNUM 335 (04-12) - HARNESS - STEERING - MAGNUM 335 (04) - ELECTRICAL SYSTEMS

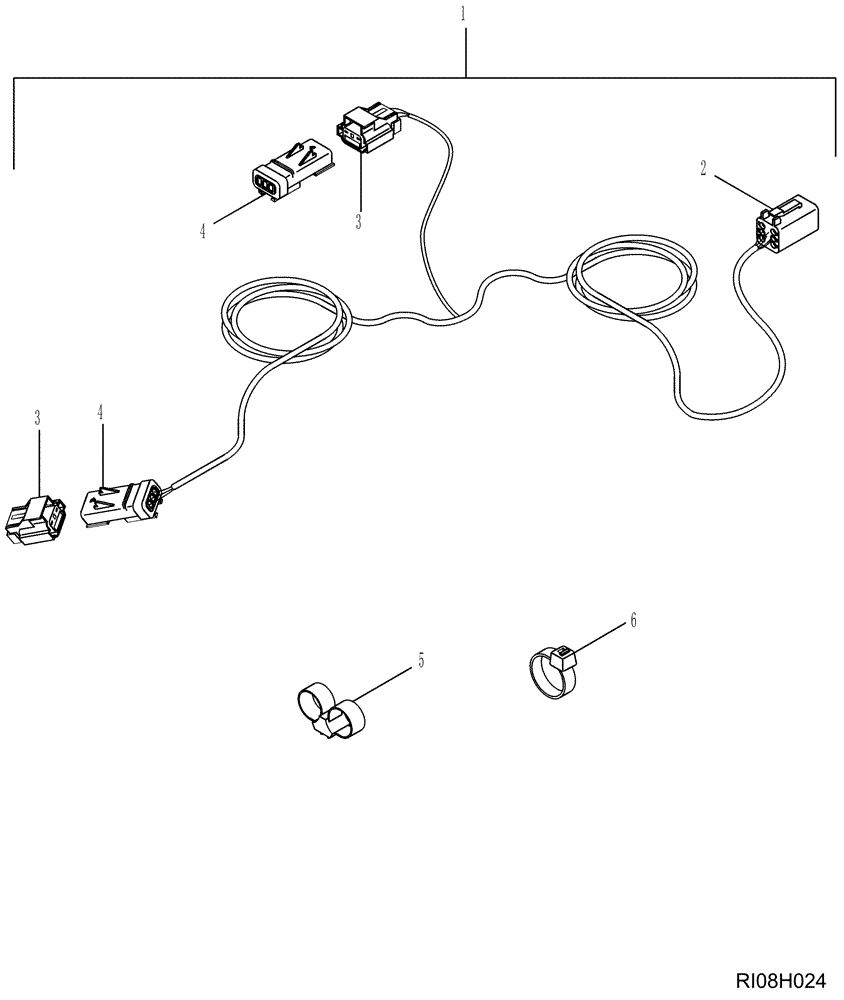

Схема запчастей Case IH MAGNUM 335 - (04-12) - HARNESS - STEERING - MAGNUM 335 (04) - ELECTRICAL SYSTEMS
3
6
4
3
1
ri08h024
2
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87704970

HARNESS

Steering

1шт.

2

225351C1

ELEC CONNECTOR,Female, 6 Pin

Steering Sensor

1шт.

3

87382910

WIRE CONNECTOR,Female, 3 Cavities

Steering Harness

1шт.

4

87382911

WIRE CONNECTOR,Male, 3 Cavities

Auxillary Harness

1шт.

5

86991000

CLAMP

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.
