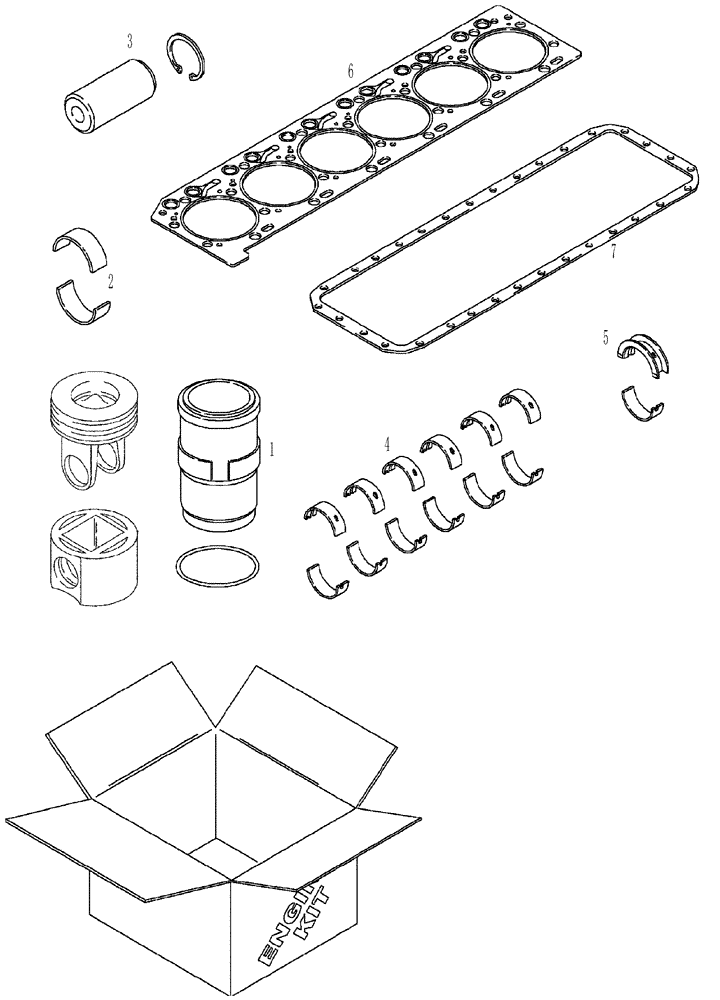

Запчасти Case IH MAGNUM 335 (02-27C) - KIT ENGINE OVERHAUL, MAGNUM 335 (02) - ENGINE

87487659

ENGINE OVERHAUL KIT

Inc. 1 - 8

1шт.

1

87685905

PISTON

KIT

6шт.

See Figure 02-31

1шт.

2

87356776

BEARING LINER

Connecting Rod, Standard

6шт.

See Figure 02-31

1шт.

3

87342670

PISTON PIN

6шт.

See Figure 02-31

1шт.

4

J945930

BEARING SET

Standard

6шт.

See Figure 02-28

1шт.

5

J945929

THRUST BEARING

Thrust, Standard

1шт.

See Figure 02-28

1шт.

6

87737237

CYLINDER HEAD GASKET,1.81mm Thk

1шт.

See Figure 02-21

1шт.

7

87308050

GASKET,0.95mm Thk

Oil Pan

1шт.

See Figure 02-18

1шт.
