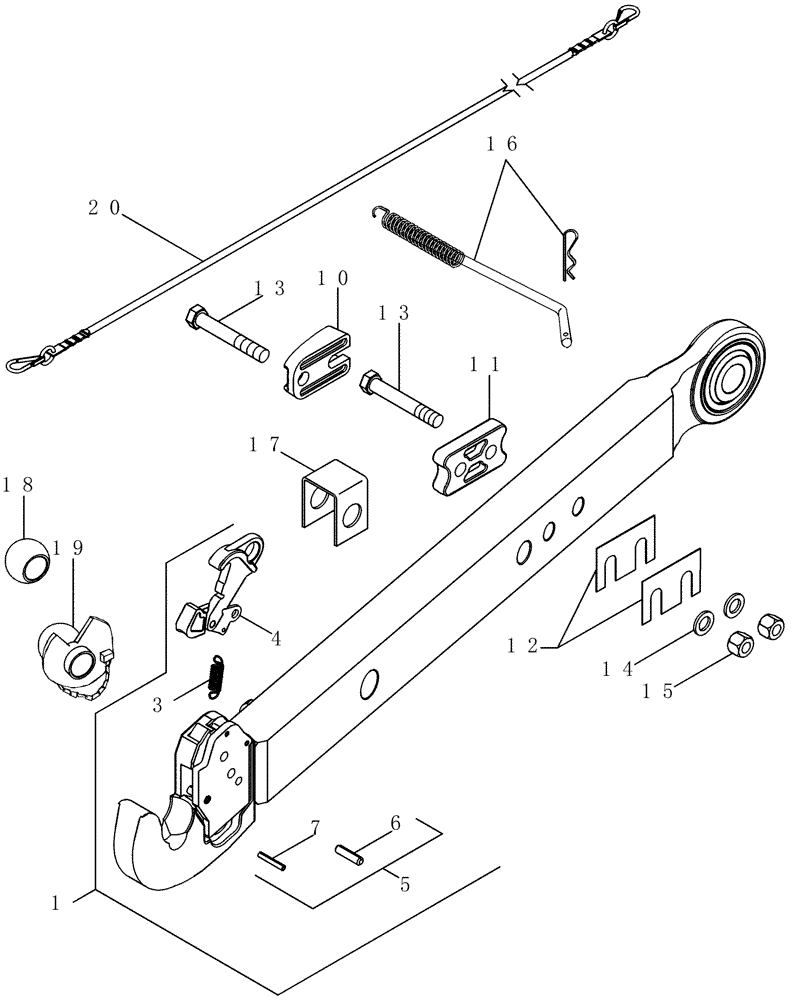

Запчасти Case IH MAGNUM 335 (09-60) - HITCH - LOWER LIFT LINKS - CATEGORY III - MAGNUM 335 (09) - CHASSIS/ATTACHMENTS

1

87455438

LOWER LINK

Right Hand, Inc. 2 - 7

1шт.

1

87455437

LOWER LINK

Left Hand, Inc. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

LINK, Right Hand, Shown

1шт.

2

NSS

NOT SOLD SEPARAT

LINK, Left Hand

1шт.

3

357749A1

SPRING,16.5mm OD x 36mm L

2шт.

4

370030A1

LATCH

2шт.

5

370217A1

COTTER PIN,2x10mm OD x 40mm L, 4x6mm OD x 40mm L

Kit, Inc. 6, 7

2шт.

6

738-51040

LOCK PIN,M10 x 40, Slotted

2шт.

7

838-3640

PIN,M6 x 40, Coiled

4шт.

10

301248A2

BUMPER

2шт.

11

301927A1

SPACER

2шт.

12

189946A1

SHIM,76mm OD x 1.03mm Thk

4шт.

13

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

4шт.

14

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

15

832-10420

NUT,M20 x 2.5, Cl 8

4шт.

16

1252040C1

SPRING

1шт.

17

293002A1

SPACER

2шт.

18

359189A2

BALL JOINT,37.5mm ID x 63.84mm OD

37.5 mm

2шт.

19

381642A1

BALL,Cat 3 Flanged, 37.50mm Dia, Low Sulfur, W/ Chain Assy

37.5 mm

2шт.

20

1348076C1

CABLE,4500mm L

1шт.
