Запчасти Case IH MAGNUM 335 (09-28) - SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

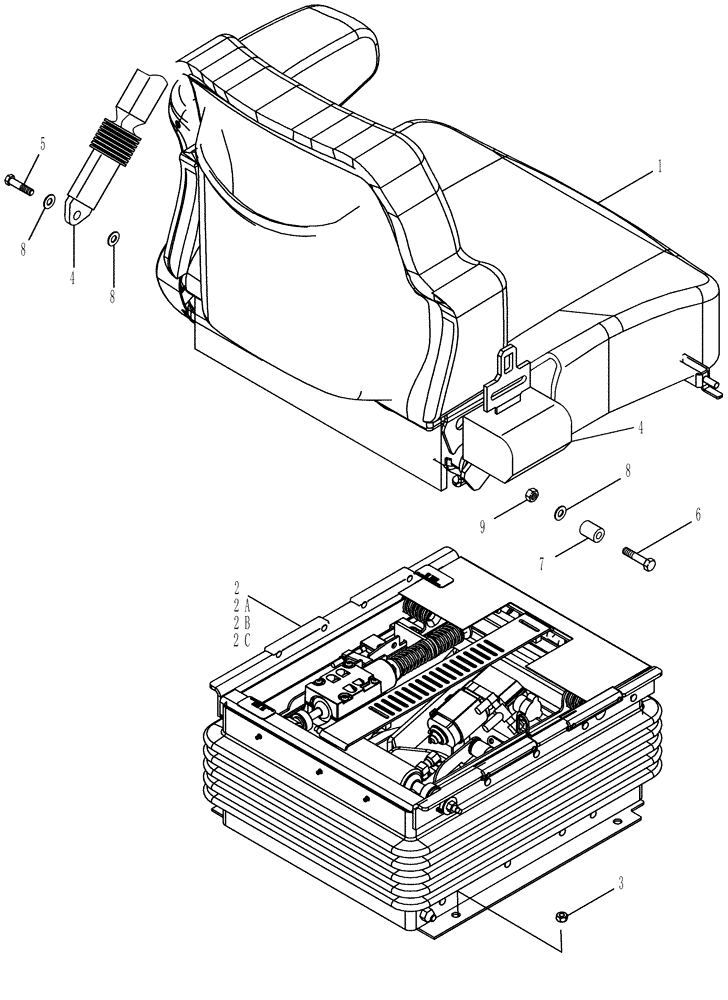

Схема запчастей Case IH MAGNUM 335 - (09-28) - SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS
2a
3
2
4
8
1
7
9
6
2c
5
8
8
2b
4

Артикул

Название

Примечание

Количество

1

87454957

SEAT ASSY.

Cloth, Wheat, Without Heat, Without Positive Response Suspension, Inc. 2, See Figure 09-29, 09-32, Start Serial: 7/25/2005

1шт.

1

84162204

SEAT ASSY.

Cloth, Confetti-Wheat, Without Heat, Without Positive Response Suspension, Inc. 2A, See Figure 09-29, 09-32, Start Serial: Z8RZ06001

1шт.

1

87553808

SEAT ASSY.

Cloth, Wheat, Without Heat, Without Positive Response Suspension, Inc. 2, 09-29, 09-32, Serial Range: -Z8RZ06001

1шт.

1

87643371

SEAT ASSY.

Cloth, Wheat, With 2 Position Heat, Without Positive Response Suspension, Inc. 2, See Figure 09-30, 09-32, Serial Range: -Z8RZ06001

1шт.

Heated Upper And Lower Seat Cushions With High, Low And Off

1шт.

1

84162208

SEAT ASSY.

Cloth, Confetti-Wheat, With 2 Position Heat, Without Positive Response Suspension, Inc. 2A, See Figure 09-30, 09-32, Start Serial: Z8RZ06001

1шт.

Heated Upper And Lower Seat Cushions With High, Low And Off

1шт.

1

84162210

SEAT ASSY.

Cloth, Confetti-Wheat, With 2 Position Heat, With Positive Response Suspension, Inc. 2C, See Figure 09-31, 09-33, Start Serial: Z8RZ06001

1шт.

Heated Upper And Lower Seat Cushions With High, Low And Off

1шт.

1

87643377

SEAT ASSY.

Cloth, Wheat, With 2 Position Heat, With Positive Response Suspension, Inc. 2B, See Figure 09-31, 09-33, Serial Range: -Z8RZ06001

1шт.

Heated Upper And Lower Seat Cushions With High, Low And Off

1шт.

1

87433296

SEAT ASSY.

Cloth, Wheat, With 3 Position Heat, Without Positive Response Suspension, Inc. 2, See Figure 09-30, 09-32, Serial Range: -1/22/2007

1шт.

Heated Upper And Lower Seat Cushions With High, Medium, Low And Off

1шт.

1

87553810

SEAT ASSY.

Cloth, Wheat, With 3 Position Heat, Without Positive Response Suspension, Inc. 2, 09-30, 09-32, Start Serial: 1/22/2007

1шт.

Heated Upper And Lower Seat Cushions With High, Medium, Low And Off

1шт.

1

87643371

SEAT ASSY.

Cloth, Air 2000, With 2 Position Heat

1шт.

1

87752526

SEAT ASSY.

Cloth, Air 2000, With 2 Position Heat

1шт.

1

87433299

SEAT ASSY.

Cloth, Wheat, With 3 Position Heat, With Positive Response Suspension, Inc. 2B, See Figure 09-31, 09-33, Serial Range: -Z8RZ06001

1шт.

Heated Upper And Lower Seat Cushions With High, Medium, Low And Off

1шт.

1

87433297

DRIVER SEAT

Leather, Red, With 3 Position Heat, With Positive Response Suspension, Inc. 2B, 09-31, 09-33, Start Serial: 1/26/2006

1шт.

Heated Upper And Lower Seat Cushions With High, Medium, Low And Off

1шт.

1

87553442

SEAT ASSY.

Leather, Red, With 3 Position Heat, With Positive Response Suspension, Inc. 2B, 09-31, 09-33, Serial Range: -Z8RZ06001

1шт.

Heated Upper And Lower Seat Cushions With High, Medium, Low And Off

1шт.

1

84162212

SEAT ASSY.

Leather, Red, With 3 Position Heat, With Positive Response Suspension, Inc. 2C, 09-31, 09-33, Start Serial: Z8RZ06001

1шт.

Heated Upper And Lower Seat Cushions With High, Medium, Low And Off

1шт.

2

87395380

SUSPENSION

Without Positive Response, See Figure 09-32

1шт.

2a

84155868

SERVICE KIT

Suspension, Without Positive Response, See Figure 09-32

1шт.

2b

87395381

SUSPENSION

With Positive Response, See Figure 09-33

1шт.

2c

84162213

SERVICE KIT

Suspension With Positive Response, See Figure 09-33

1шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

4

444877A1

SAFETY BELT ,50.8mm W x 1737.86mm L

1шт.

5

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

1шт.

6

806-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9

1шт.

7

87313413

TUBE SPACER

1шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

9

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

Выбрано товаров: 36
