Запчасти Case IH MAGNUM 3154 (10.216.AI[07]) - FUEL TANK & ASSOCIATED PARTS, LH - TIER 2B, TIER 3 (10) - ENGINE

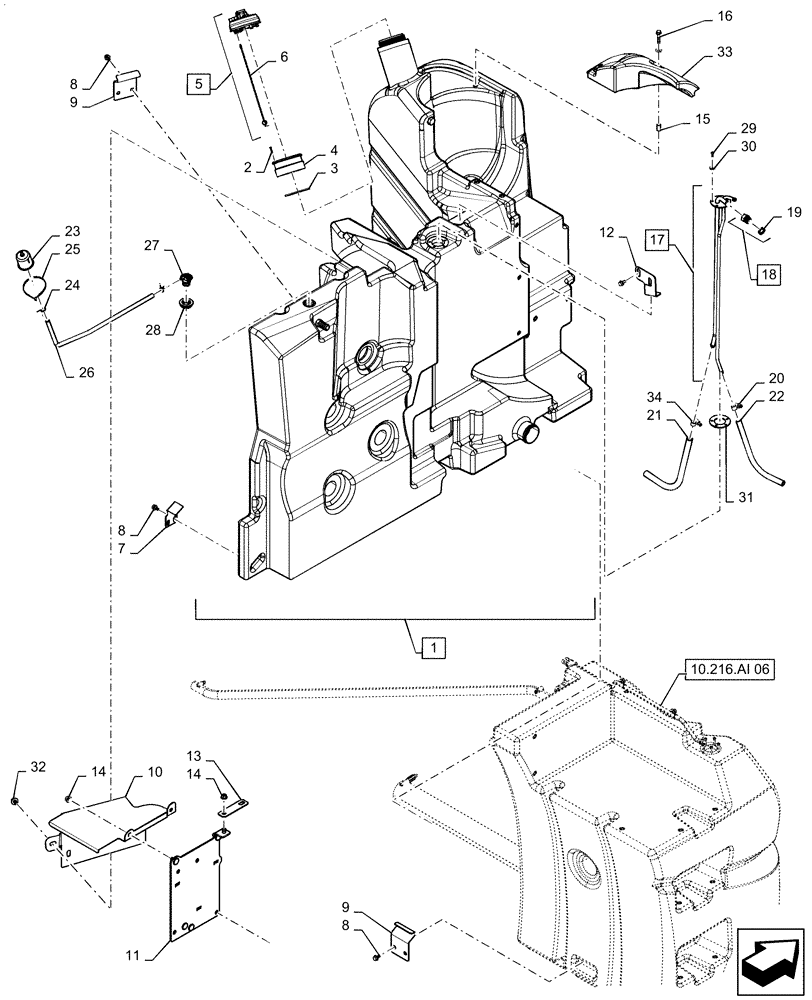

Схема запчастей Case IH MAGNUM 3154 - (10.216.AI[07]) - FUEL TANK & ASSOCIATED PARTS, LH - TIER 2B, TIER 3 (10) - ENGINE
22
19
24
16
10
17
5
25
1
12
9
21
8
18
13
20
8
6
3
11
15
14
10.216.ai 06
4
26
7
30
32
28
31
29
33
34
14
8
27
2
9
23

Артикул

Название

Примечание

Количество

1

47524958

FUEL TANK

LH, TIER 2B; Incl 2 - 6

1шт.

2

47429101

SELF-TAP SCREW

6-20 x 3/4 AB Pan

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET, Fuel Cap Adapter, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

ADAPTER, Fuel Cap, Incl in 1

1шт.

5

47421724

LOCKABLE FUEL CAP

Fuel Tank; Incl 6

1шт.

6

47421650

CHAIN

Fuel Tank Tether

1шт.

7

47379257

BRACKET

LH, Rear, Fuel Tank Hold Down

1шт.

8

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

9

47508940

BRACKET

RH, Rear, Fuel Tank Hold Down

1шт.

10

47667100

COVER

Electronic Module

1шт.

11

47495733

PLATE

Supply Module

1шт.

12

47508404

BRACKET

Fuel Tank Hold Down

1шт.

13

47492772

STIFFENER

Fuel Tank

1шт.

14

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

3шт.

15

47535924

COVER ASSY

WEMA

1шт.

16

844-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

2шт.

17

47384776

PIPE

Assy, Fuel Supply/Return; Incl 18 - 19

1шт.

18

NSS

NOT SOLD SEPARAT

FITTING Incl in 17

1шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

20

1348264C1

HOSE CLAMP

1шт.

21

84197988

FUEL HOSE

Supply, 400mm

1шт.

22

84197990

FUEL HOSE

Return, 300mm

1шт.

23

87433010

BREATHER

Fuel Tank

1шт.

24

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

25

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

26

275801A1

FUEL HOSE

Rollover Valve Vent

1шт.

27

275800A1

VALVE STEM

Rollover, Fuel Tank

1шт.

28

255094A1

GROMMET

Rollover, Fuel Tank

1шт.

29

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

5шт.

30

86509828

LOCK WASHER,M5

5шт.

31

87537695

GASKET

Fuel Sender

1шт.

32

844-10016

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

1шт.

33

47494442

COVER

WEMA

1шт.

34

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

1шт.

Выбрано товаров: 34
