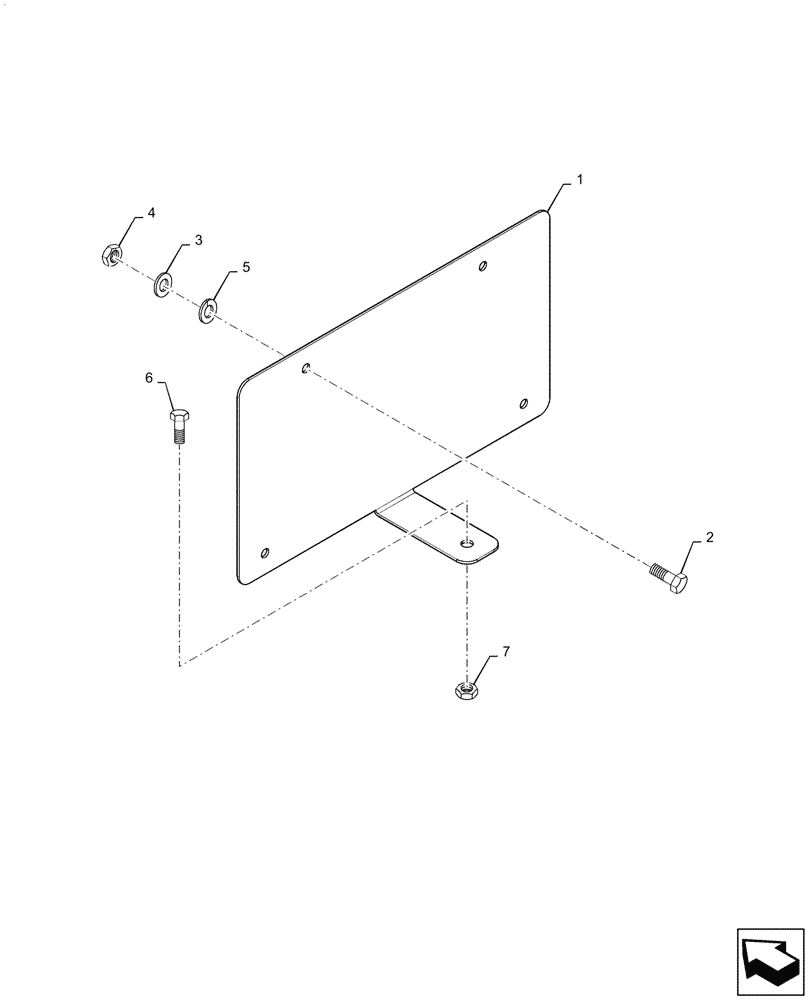

Запчасти Case IH MAGNUM 3154 (88.100.AC[02]) - LICENSE PLATE HOLDER - 3154 (88) - ACCESSORIES

1

47916750

License Plate Mounting

PLATE

1шт.

2

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

3

11194371

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.4mm Thk

4шт.

4

10720111

NUT,M6, Cl 8

4шт.

5

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

Sealing

4шт.

6

82880748

SCREW,Pozidrive, Pan HD, M6 x 2 x 14mm, Cl 4.8

2шт.

7

12574211

NUT,M6 x 1, Cl 8

2шт.
