Запчасти Case IH MAGNUM 3154 (10.001.AK[04]) - VAR- 420228, 429199 - ENGINE MOUNTING PARTS, WITH SUSPENDED MFD AXLE, TIER 2B, TIER 3 - 250, 280, 310, 340, 2654, 3154 (10) - ENGINE

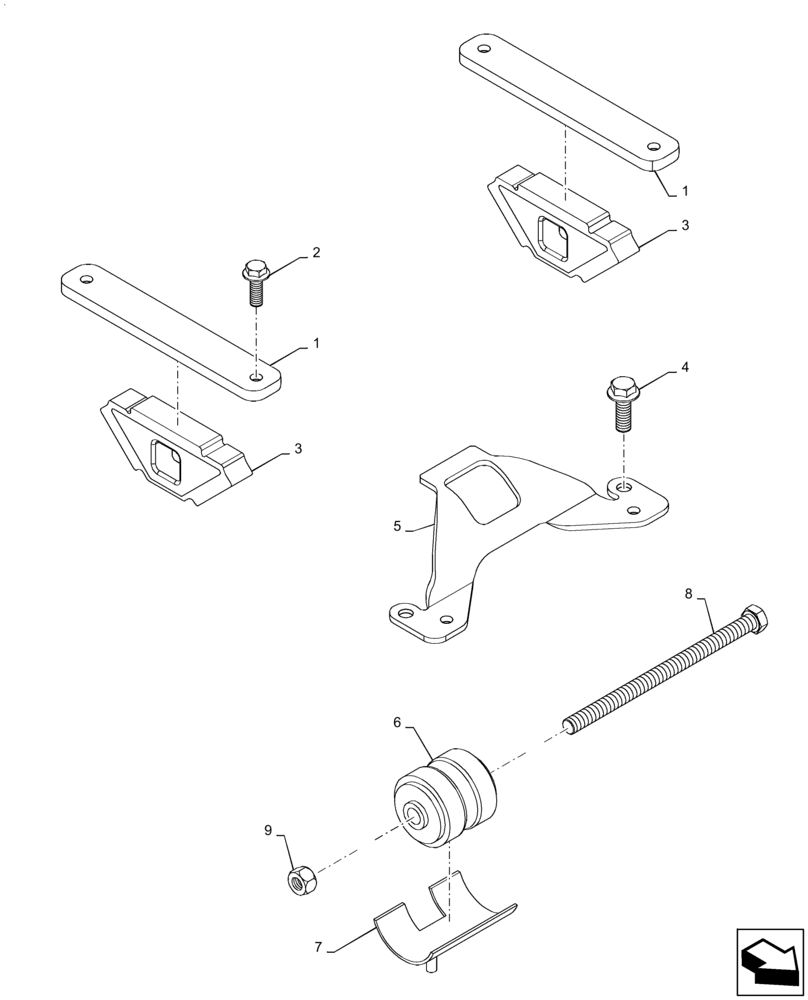

Схема запчастей Case IH MAGNUM 3154 - (10.001.AK[04]) - VAR- 420228, 429199 - ENGINE MOUNTING PARTS, WITH SUSPENDED MFD AXLE, TIER 2B, TIER 3 - 250, 280, 310, 340, 2654, 3154 (10) - ENGINE
2
8
3
7
6
3
1
1
4
5
9

Артикул

Название

Примечание

Количество

1

87689563

BRACKET

Rear ISO Engine Mount

2шт.

2

854-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

4шт.

3

251991A1

SUPPORT

Engine, Rear

2шт.

4

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

5

84427074

BRACKET

Front ISO Engine Mount

1шт.

6

247991A1

RUBBER MOUNTING,76.2mm OD x 86.4mm L

Front Engine Mount

1шт.

7

84492064

MOUNTING PLATE

Engine, Front

1шт.

8

1709186

SCREW,Hex, M16 x 280mm, Cl 10.9

1шт.

9

832-10416

NUT,M16 x 2, Cl 8

1шт.

Выбрано товаров: 9
