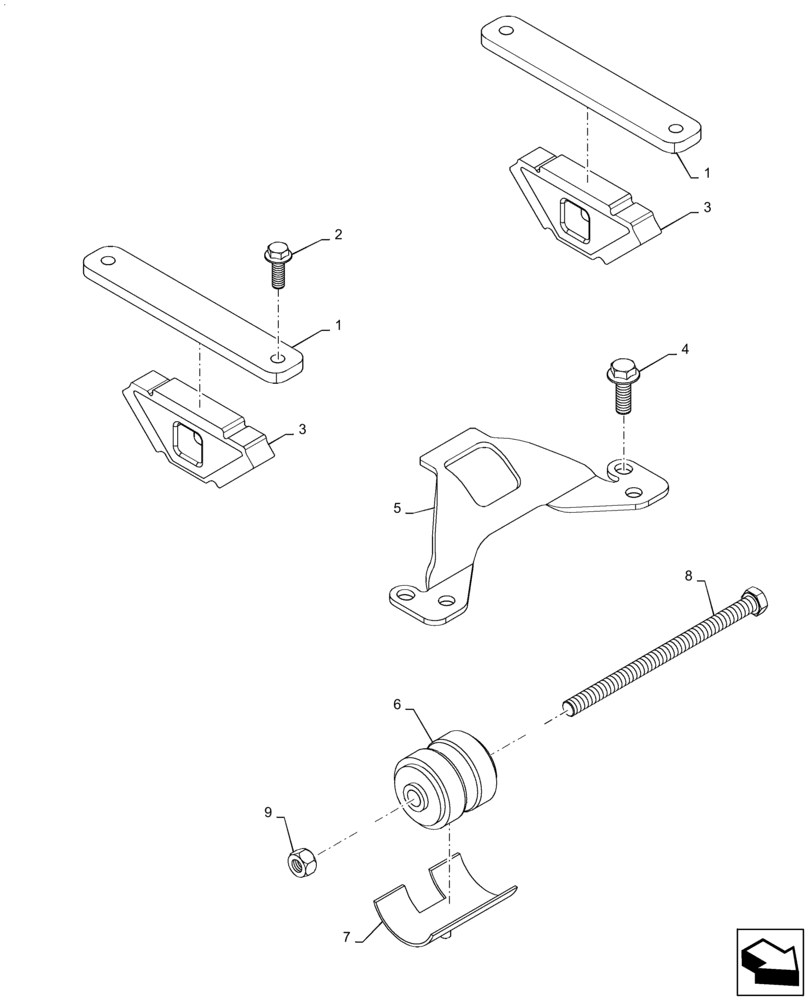

Запчасти Case IH MAGNUM 3154 (10.001.AK[03]) - VAR- 420224, 420277, 429286 - ENGINE MOUNTING PARTS, TIER 2B, TIER 3 - 250, 280, 310, 340, 380, 2654, 3154 (10) - ENGINE

1

87689563

BRACKET

Rear ISO Engine Mount

2шт.

2

854-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

4шт.

3

251991A1

SUPPORT

Engine, Rear

2шт.

4

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

5

84427074

BRACKET

Front ISO Engine Mount

1шт.

6

247991A1

RUBBER MOUNTING,76.2mm OD x 86.4mm L

Front Engine Mount

1шт.

7

84492063

MOUNTING PLATE

Engine, Front

1шт.

8

1709186

SCREW,Hex, M16 x 280mm, Cl 10.9

1шт.

9

832-10416

NUT,M16 x 2, Cl 8

1шт.
