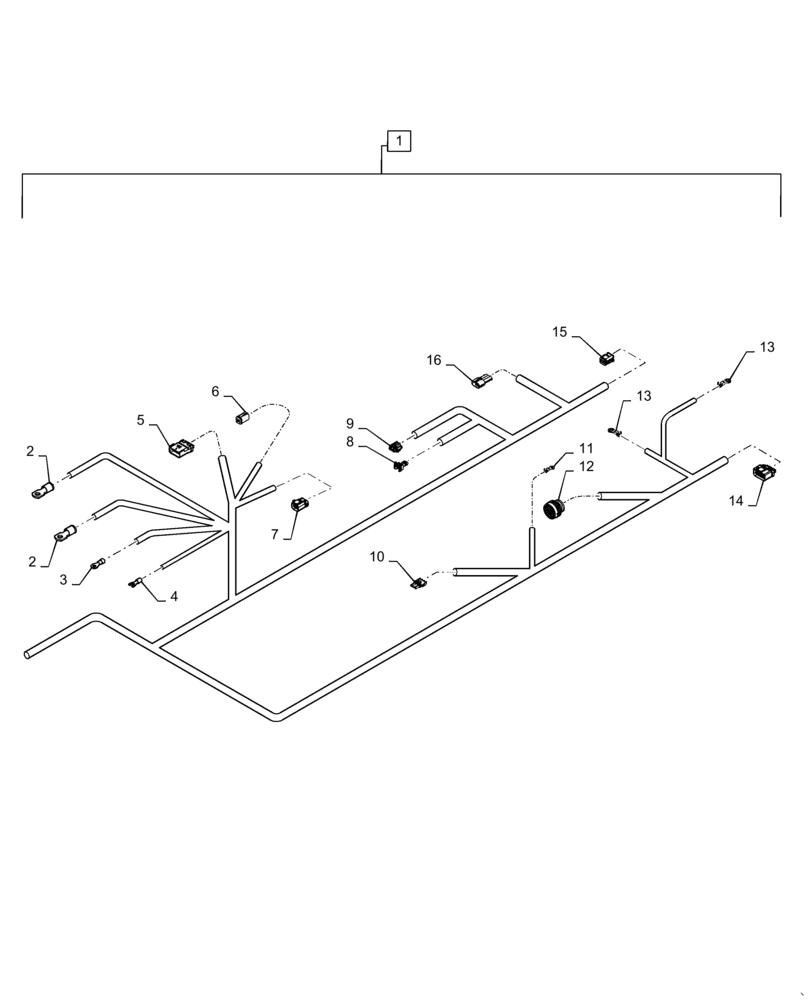

Запчасти Case IH MAGNUM 3154 (55.015.AB[07]) - WIRE HARNESS, FRONT FRAME (55) - ELECTRICAL SYSTEMS

1

47761403

WIRE HARNESS

Incl 2-16

1шт.

2

84140739

TERMINAL CONNECTOR,Ring, M12, 2.50 - 6.00mm

Aspirator Motor & Case Ground

2шт.

3

84140739

TERMINAL CONNECTOR,Ring, M12, 2.50 - 6.00mm

Starter Motor

1шт.

4

NSS

NOT SOLD SEPARAT

Starter Motor Relay Coil, M10 Spade Terminal Incl in 1

1шт.

5

87382929

WIRE CONNECTOR,Male, 14 Cavities

Front Hitch

1шт.

6

87694112

ELEC CONNECTOR,Female, 6 Pole

Steering Sensor Harness

1шт.

7

87382918

WIRE CONNECTOR,Female, 6 Cavities

Suspended Axle

1шт.

8

84607243

ELEC CONNECTOR,Female, 2 Cavities

Air Filter Restriction Switch

1шт.

9

87709809

ELEC CONNECTOR

Temp/Humidity Sensor

1шт.

10

87644909

WIRE CONNECTOR,Female, 3 Pins

Fuel Sender

1шт.

11

84159854

TERMINAL,M8

M5 Ring Terminal, Engine Main B+

1шт.

12

84526555

MULTIPOLE CONNECTOR

Cab Harness

1шт.

13

84159856

TERMINAL,5/16" Ring, SAE 14 - 16

M8 Ring Terminal, Ground, Cab Mounted

1шт.

14

87382926

WIRE CONNECTOR,Female, 14 Cavities

Outside Cab Harness

1шт.

15

84122167

ELEC CONNECTOR

LH Platform Harness

1шт.

16

87709204

ELEC CONNECTOR

Fan Aspirator

1шт.
