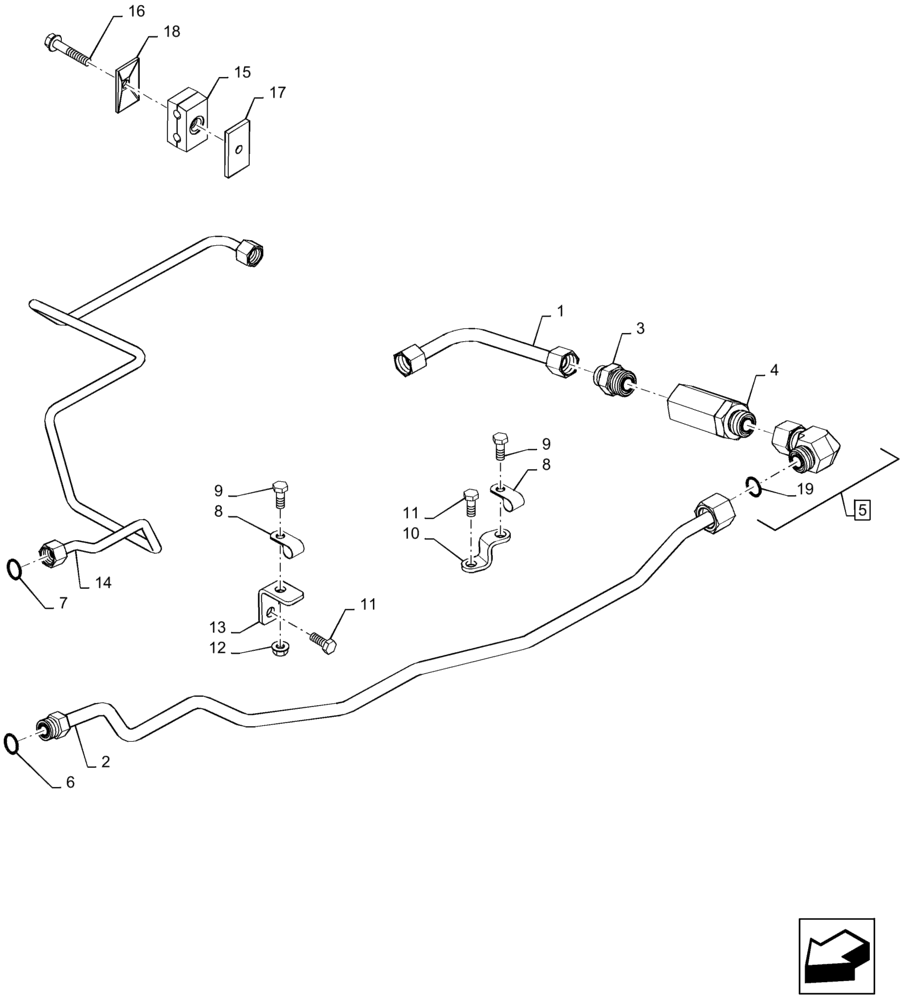

Запчасти Case IH MAGNUM 3154 (41.432.AC[02]) - STEERING SYSTEM, MFD WITH AUTOGUIDANCE (41) - STEERING

1

87620399

HYD TUBE,12.70 mm OD x 142.4 mm L

Supply Before Screen

1шт.

2

87620401

HYD TUBE,12.70 mm OD x 807 mm L

Supply After Screen

1шт.

3

201-135

HYD CONNECTOR,13/16" - 16 ORFS x 9/16" - 18 ORFS

1шт.

4

87319429

FILTER,1" - 14 ORFS x 1" - 14 THREADED

Screen

1шт.

5

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 19

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

10

86988840

BRACKET

Supply Tube Clamp Rear

1шт.

11

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

13

86988838

BRACKET

Supply Tube Clamp Front

1шт.

14

47713919

HYD TUBE

Steering Valve Load Sense

1шт.

15

1546024C1

CLAMP

Twin

1шт.

16

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

17

384871A1

PLATE

Hose Clamp

1шт.

18

384870A1

PLATE

Hose Clamp Cover

1шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
