Запчасти Case IH MAGNUM 3154 (41.216.AN[01]) - VAR - 420224, 420228 - STEERING CYLINDER ASSY, CL 4.75 (41) - STEERING

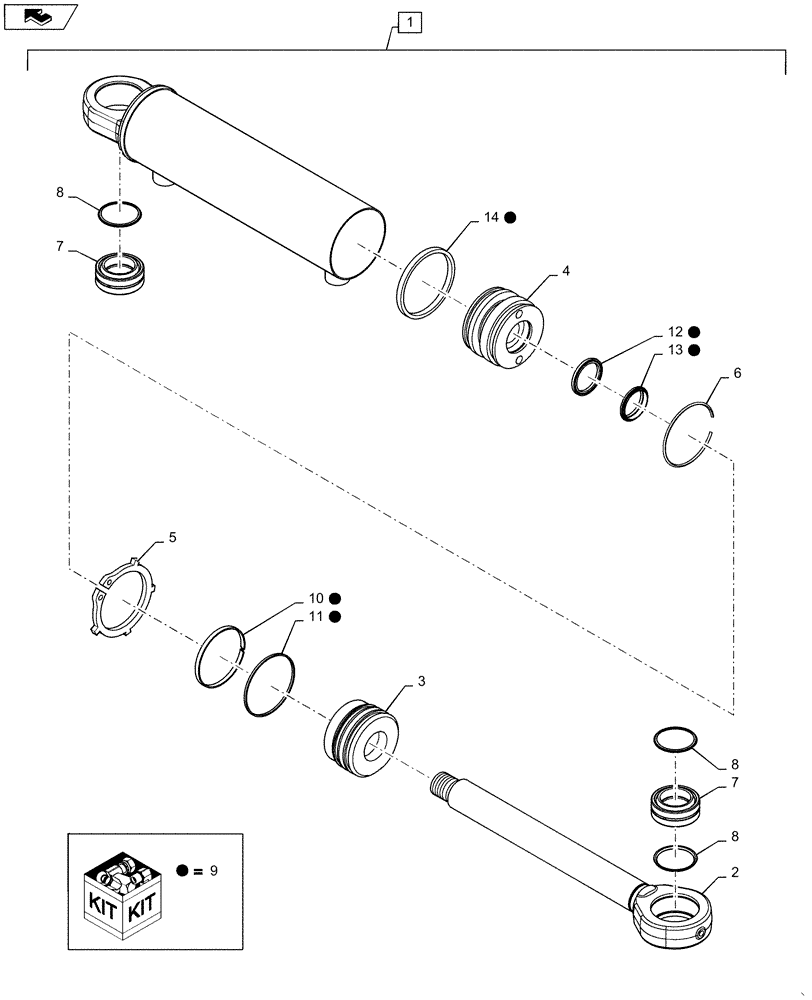

Схема запчастей Case IH MAGNUM 3154 - (41.216.AN[01]) - VAR - 420224, 420228 - STEERING CYLINDER ASSY, CL 4.75 (41) - STEERING
9
9
14
2
8
7
5
8
9
1
11
9
13
9
7
home
8
9
12
10
3
9
6
4

Артикул

Название

Примечание

Количество

1

84308818

CYLINDER

Steering Assy, CL4.75; Incl 2 - 14

1шт.

2

47502209

PISTON ROD

Axle Steer Cyl

1шт.

3

47502206

PISTON

Axle Steer Cyl

1шт.

4

47502205

CYLINDER END CAP,76.2mm Bore, 36mm Rod, mm W

Cylinder End

1шт.

5

47436962

RING

Seeger, Axle Steer Cyl

1шт.

6

47436960

RING

Retaining, Axle Steer Cyl

1шт.

7

47502210

BALL JOINT

Axle Steer Cyl

2шт.

8

47436955

RING

Retaining, Axle Steer Cyl

3шт.

9

47436943

SEAL KIT

Kit; Steering Cylinder CNH AXLE CL 4.75; Incl 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

GUIDE RING; Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON SEAL; Incl in 9

1шт.

12

NSS

NOT SOLD SEPARAT

ROD SEAL; Incl in 9

1шт.

13

NSS

NOT SOLD SEPARAT

ROD WIPER; Incl in 9

1шт.

14

NSS

NOT SOLD SEPARAT

STATIC SEAL; Incl in 9

1шт.

Выбрано товаров: 14
