Запчасти Case IH MAGNUM 3154 (41.206.AG[03]) - POWERSHIFT - EMERGENCY STEERING, STANDARD (41) - STEERING

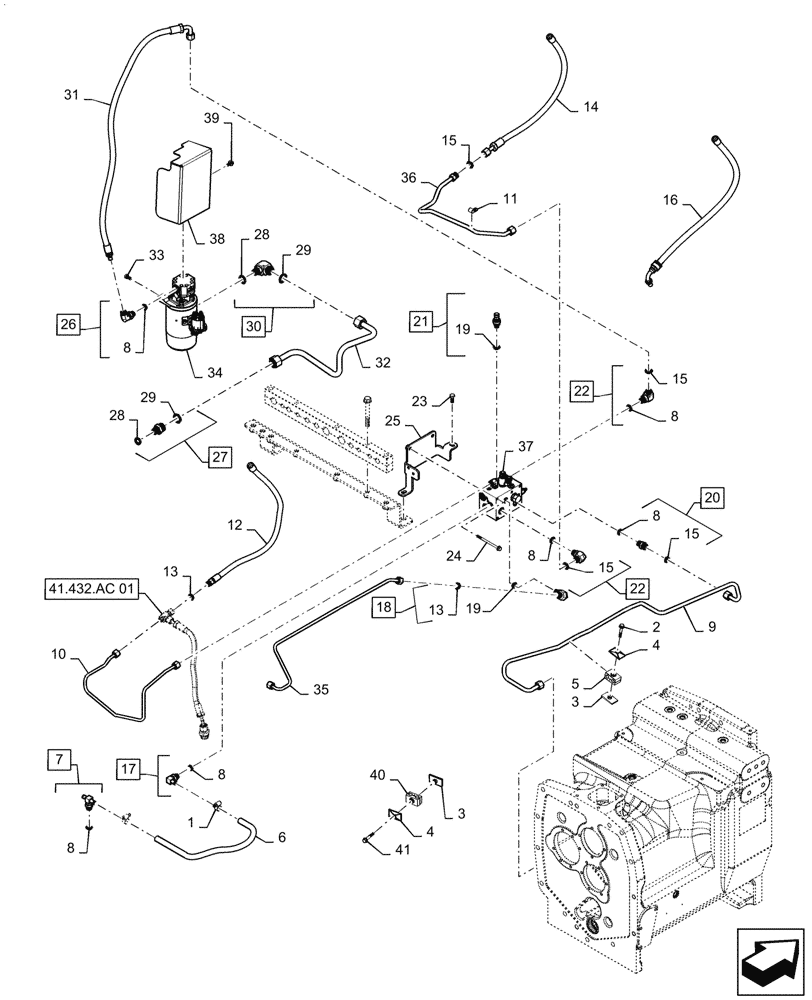

Схема запчастей Case IH MAGNUM 3154 - (41.206.AG[03]) - POWERSHIFT - EMERGENCY STEERING, STANDARD (41) - STEERING
41.432.ac 01
5
35
31
13
12
8
26
30
22
10
17
36
15
27
20
28
14
15
38
19
8
19
4
4
21
41
24
32
11
18
15
9
3
34
22
28
13
25
23
8
1
33
39
16
8
6
40
29
2
7
29
15
3
8
37
8

Артикул

Название

Примечание

Количество

1

214-1408

HOSE CLAMP,11.2mm - 19.8mm

2шт.

2

844-8050

BOLT,M8 x 1.25 x 50mm, Cl 8.8

1шт.

3

384871A1

PLATE

Hose Clamp

2шт.

4

384870A1

PLATE

Hose Clamp

2шт.

5

87705202

CLAMP,12.7mm OD Tube x 12.7mm OD Tube

2 Hole 12.7-12.7 mm Dia Ribbed

1шт.

6

87365235

HYDRAULIC HOSE,0.50" ID x 20.00"

1шт.

7

84518980

TEE

M18 x 1/2 Hose Barb; Incl 8

1шт.

8

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

6шт.

9

47484817

HYD TUBE

Emergency Steering Valve Supply

1шт.

10

47484816

HYD TUBE

Emergency Steering Valve Load Sense Out

1шт.

11

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

12

84127336

HOSE,9.53mm ID x 825mm L

Steering Signal

1шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

14

84127341

HOSE,12.7mm ID x 700mm L

Steering Supply, W/Autoguidance

1шт.

14

84127337

HOSE,12.7mm ID x 750mm L

Steering Supply, W/O Autoguidance

1шт.

15

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

16

84352407

HYDRAULIC HOSE

Steering Return

1шт.

17

87312846

ELBOW

M18 90 Degree Hose Barb; Incl 8

1шт.

18

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 13, 19

1шт.

19

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

20

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 8, 15

1шт.

21

375644A1

SENSOR

Pressure, Incl 19

2шт.

22

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 8, 15

2шт.

23

615-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

24

84193283

BOLT,Hex, M8 x 110mm, Cl 10.9

3шт.

25

47482803

BRACKET

Emergency Steering Valve

1шт.

26

87401123

ELBOW

SDE-12 x M18 w/STC End; Incl 8

1шт.

27

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl 28 - 29

1шт.

28

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

29

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

30

86579695

90 ELBOW,90 Degree, 1-3/16"-12 ORFS x M22 x 1.5 ORB

Incl 28 - 29

1шт.

31

47484813

HYDRAULIC HOSE,12.7mm ID x 1112mm L

Emergency Steering Pump Supply

1шт.

32

47484811

HYD TUBE

Emergency Steering Pump Supply

1шт.

33

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

2шт.

34

47410312

PUMP,12V

Emergency Steering Electric

1шт.

35

47484815

HYD TUBE

Emergency Steering Valve Load Sense Supply

1шт.

36

47484814

HYD TUBE

Emergency Steering Valve Supply to Hand Pump

1шт.

37

47488222

VALVE

Emergency Secondary System

1шт.

38

47496312

SHIELD

Steering Motor

1шт.

39

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

40

1546024C1

CLAMP

Tube

1шт.

41

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

2шт.

Выбрано товаров: 42
