Запчасти Case IH MAGNUM 3154 (41.200.AY[03]) - VAR - 429330, 429331, 429332, 429333 - PRIORITY & REGULATOR PWM VALVE, MAGNUM 310, 340, 3154 (41) - STEERING

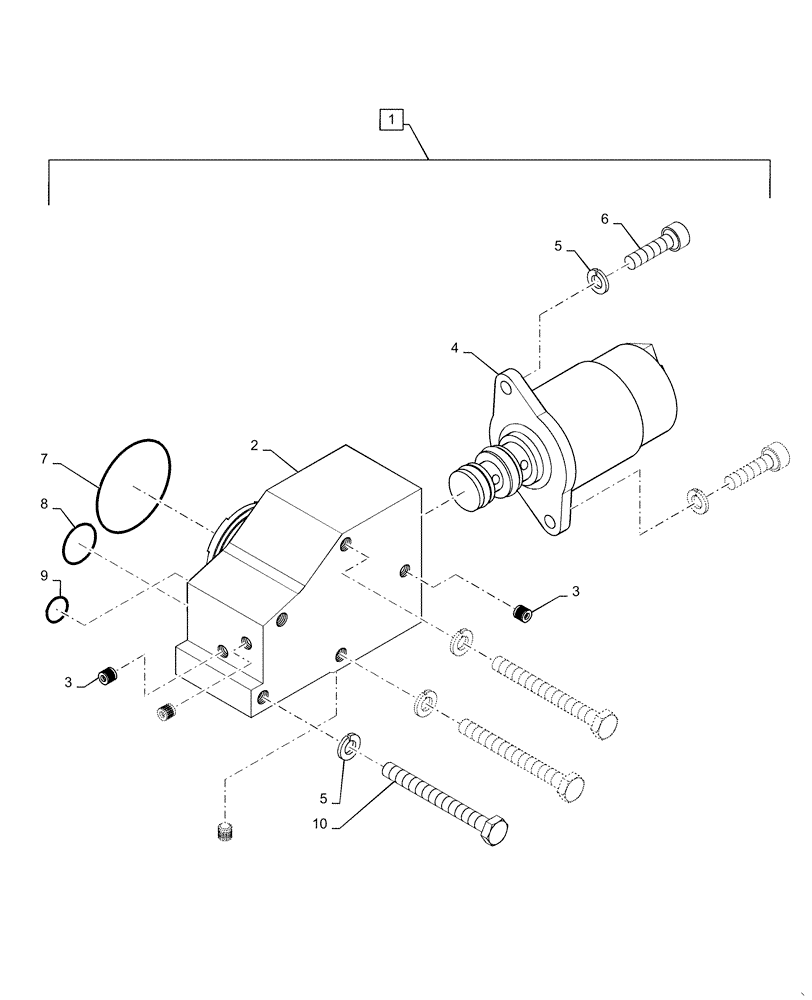

Схема запчастей Case IH MAGNUM 3154 - (41.200.AY[03]) - VAR - 429330, 429331, 429332, 429333 - PRIORITY & REGULATOR PWM VALVE, MAGNUM 310, 340, 3154 (41) - STEERING
7
6
9
3
4
2
10
3
5
5
8
1

Артикул

Название

Примечание

Количество

1

86983527

BLOCK

Assembly, PWM, Incl 2 - 10

1шт.

2

86983526

HOUSING

EH Valve

1шт.

3

282836A1

PLUG,4mm OD x 4mm L

Expansion

4шт.

4

87354468

SOLENOID VALVE

Control

1шт.

5

892-11004

LOCK WASHER,M4

6шт.

6

864-4016

HEX SOC SCREW,M4 x 16mm, Cl 8.8

2шт.

7

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

8

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

1шт.

9

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

10

87384106

BOLT,M4 x 42.92mm, Cl 8.8

4шт.

Выбрано товаров: 10
