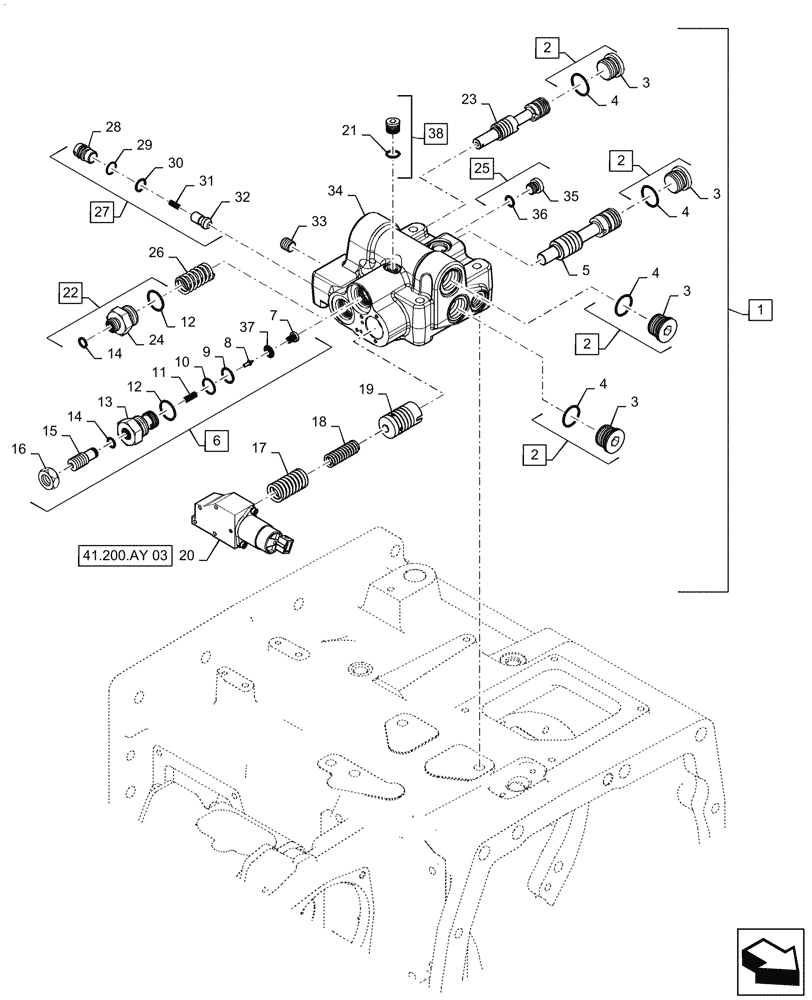

Запчасти Case IH MAGNUM 3154 (41.200.AY[02]) - VAR - 429330, 429331, 429332, 429333 - PRIORITY & REGULATOR PWM VALVE, MAGNUM 310, 340, 3154 PST (41) - STEERING

1

84340310

VALVE SECTION

Priority And Regulator, Incl 2 - 38

1шт.

2

221580A1

PLUG,M27 x 2 ORB

Incl 3, 4

4шт.

3

NSS

NOT SOLD SEPARAT

PLUG, Incl in 2

4шт.

4

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

4шт.

5

84498440

SPOOL

Regulator

1шт.

6

130060A2

PILOT VALVE

Pilot Relief, 19000 kPa, Incl 7 - 16, 37

1шт.

7

196095A1

SEAT

1шт.

8

G108556

VALVE POPPET

1шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

10

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

11

130059A1

SPRING

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

13

G108866

HOUSING,1-1/16" - 12

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

15

G108867

PLUG

1шт.

16

25-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

17

86983471

VALVE SPRING

Outer

1шт.

18

86983472

SPRING

Inner

1шт.

19

86983412

PISTON

1шт.

20

86983527

BLOCK

Assembly, PWM

1шт.

21

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

22

313940A1

FITTING

Incl 12, 14, 24

1шт.

23

87448952

SPOOL

Priority Inlet Dynamic Sense

1шт.

24

NSS

NOT SOLD SEPARAT

FITTING, Incl in 22

1шт.

25

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 35, 36

1шт.

26

408447A1

COMPRESSION SPRING

1шт.

27

1542563C1

KIT

Incl 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

PLUG, Incl in 27

1шт.

29

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

30

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING, Incl in 27

1шт.

32

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

33

87427769

PLUG

1шт.

34

84420910

VALVE BODY

1шт.

35

NSS

NOT SOLD SEPARAT

PLUG, Incl in 25

1шт.

36

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

37

196096A1

SCREEN

1шт.

38

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

Incl 21

1шт.
