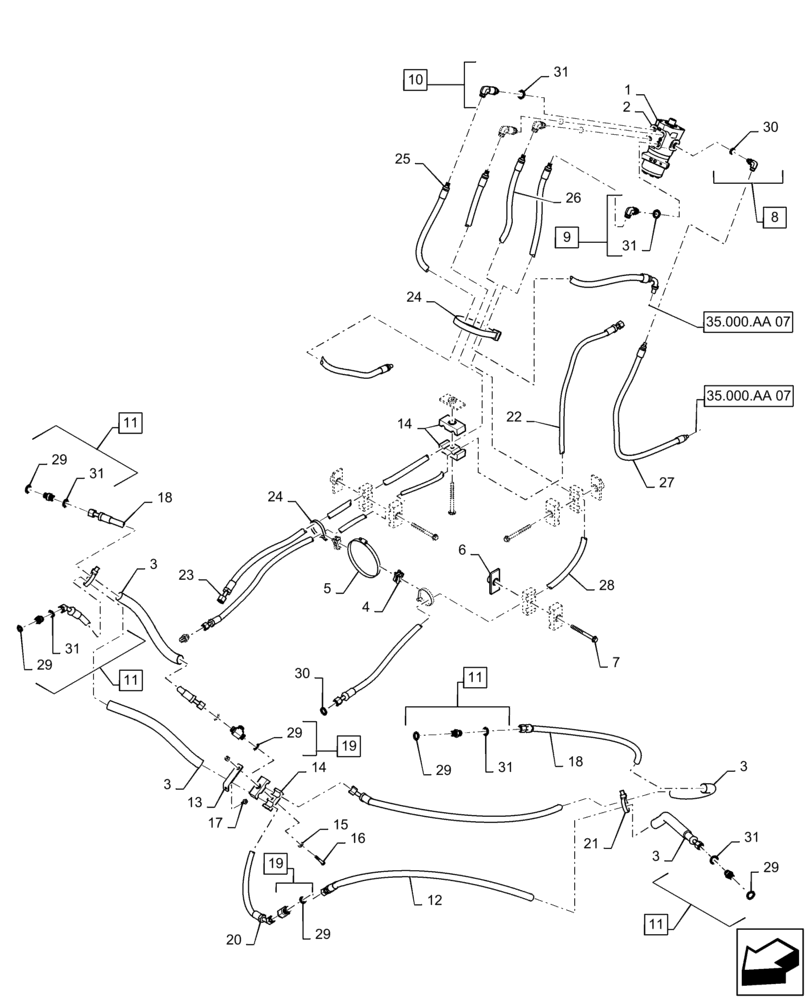

Запчасти Case IH MAGNUM 3154 (41.200.AT[04]) - STEERING SYSTEM, CL 5 AXLE, STANDARD & SUSPENDED AXLE, MFD, MAGNUM 280, 310, 340, 3154 (41) - STEERING

1

87415171

STEERING VALVE

ASSY, Steering Pump, 462 cc

1шт.

2

87454545

SEAL KIT

Steering Pump

1шт.

3

87707952

PROTECTIVE SLEEVE,33.5mm ID x 432mm L

4шт.

4

86991001

SPACER

2шт.

5

214-14104

HOSE CLAMP,155.45mm - 177.8mm

1шт.

6

384871A1

PLATE

4шт.

7

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

4шт.

8

87401122

ELBOW

Incl 30

1шт.

9

87401123

ELBOW

Incl 31

2шт.

10

87401124

90 ELBOW

Incl 31

2шт.

11

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 29, 31

4шт.

12

87689257

HOSE,12.7mm ID x 600mm L, SAE 100R17

1шт.

13

87689261

BRACKET

1шт.

14

87000151

CLAMP

5шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

16

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

17

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

18

87705794

HOSE,12.7mm ID x 480mm L, SAE 100R17

2шт.

19

701-409

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl 29

2шт.

20

87686533

HOSE,12.7mm ID x 575mm L, SAE 100R17

1шт.

21

86991009

CABLE TIE,222mm L, Nylon

CABLE STRAP

2шт.

22

84208232

HOSE ASSY.

Differential Lock Supply

1шт.

23

47727139

HYDRAULIC HOSE

Right Hand, STC

1шт.

24

86991007

CABLE TIE,509mm L

CABLE STRAP

3шт.

25

84352407

HYDRAULIC HOSE

Steering Return

1шт.

26

84127337

HOSE,12.7mm ID x 750mm L

Steering Supply

1шт.

27

84127336

HOSE,9.53mm ID x 825mm L

Steering Signal

1шт.

28

84362821

HOSE,12.7mm ID x 2452mm L, SAE 100R17

Left Hand, STC

1шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

10шт.

30

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

31

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

8шт.
