Запчасти Case IH MAGNUM 3154 (41.200.AT[02]) - STEERING SYSTEM, MFD - MAGNUM 250, 280, 310, 2654, 3154 (41) - STEERING

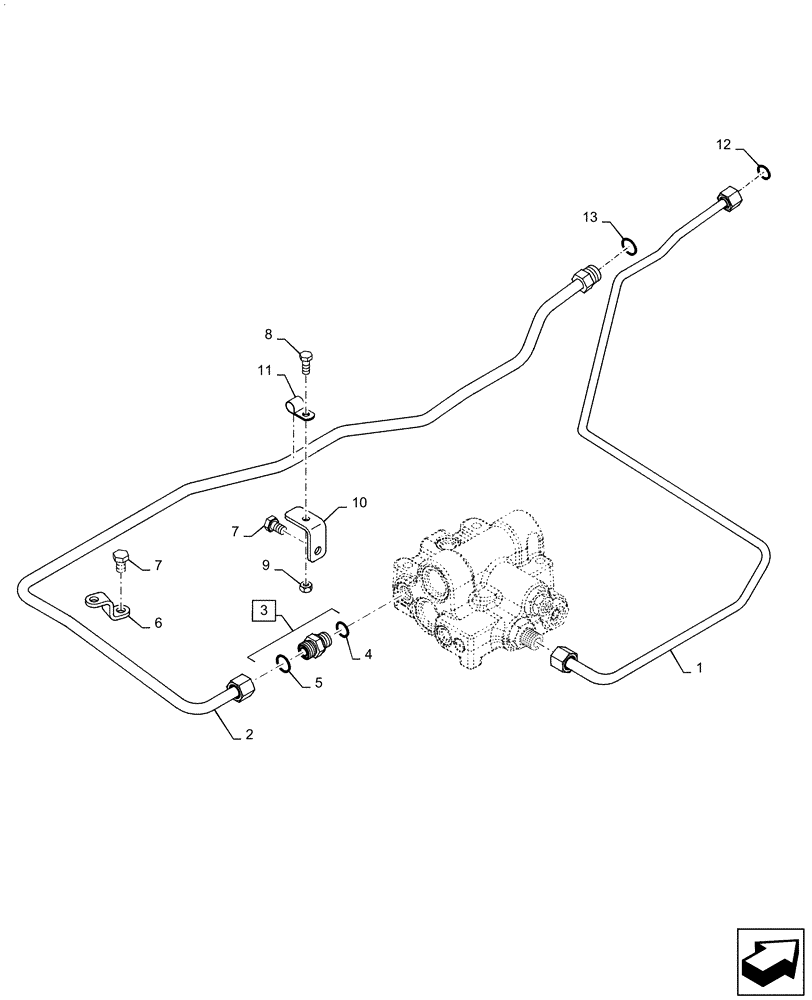

Схема запчастей Case IH MAGNUM 3154 - (41.200.AT[02]) - STEERING SYSTEM, MFD - MAGNUM 250, 280, 310, 2654, 3154 (41) - STEERING
3
7
6
10
8
1
12
4
2
5
7
13
11
9

Артикул

Название

Примечание

Количество

1

47713919

HYD TUBE

Steering Load Sense

1шт.

2

433591A1

TUBE

Steering Supply

1шт.

3

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 4, 5

1шт.

4

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

86988840

BRACKET

Steering Supply Tube Clamp

1шт.

7

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

10

86988838

BRACKET

Front Steering Supply Tube Clamp

1шт.

11

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Выбрано товаров: 13
