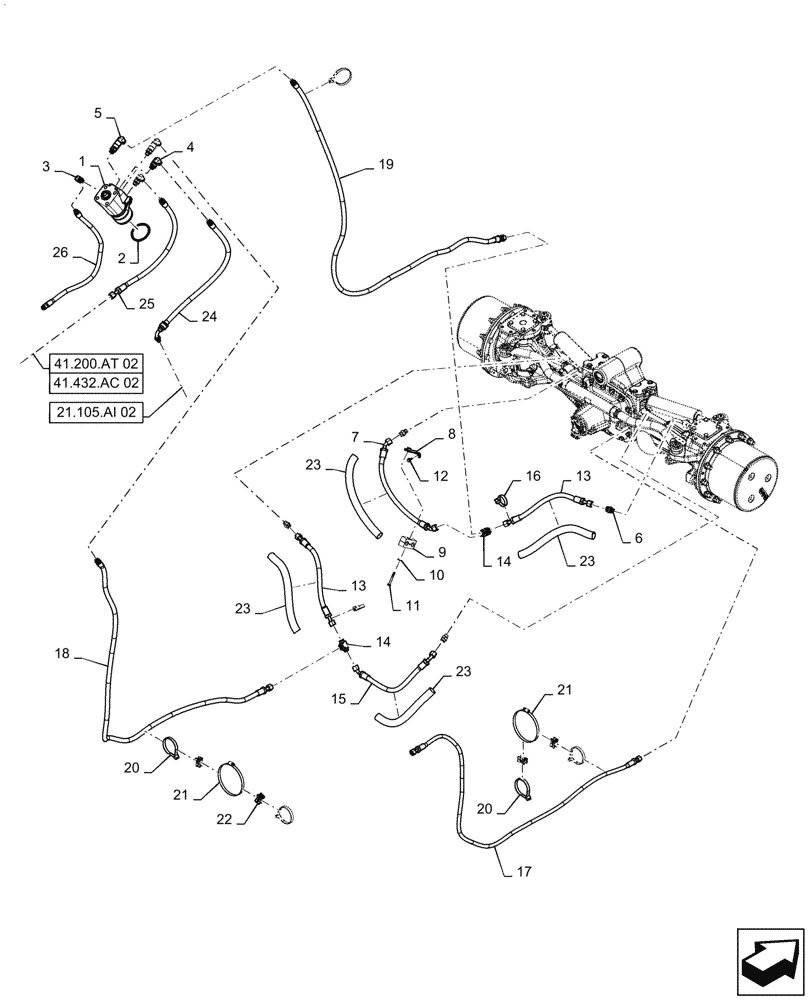

Запчасти Case IH MAGNUM 3154 (41.200.AT[01]) - STEERING SYSTEM, MFD, MAGNUM 250, 280, 310, 2654, 3154 (41) - STEERING

1

445304A2

PUMP

Steering Control - 293 CC

1шт.

1

445304A2R

REMAN-STEERING VALVE

Steering Control - 293 CC

1шт.

1

445304A2C

CORE-STEERING VALVE

Return Part Number

1шт.

1

445303A2

PUMP

Steering Control - 231 CC

1шт.

1

87364990

STEERING VALVE

Steering Control - Dual Displacement 74 / 304 CC

1шт.

1

87618651

STEERING VALVE

Steering Control - 74 / 444 CC

1шт.

1

87415171

STEERING VALVE

Steering Control - 462 CC

1шт.

2

87454545

SEAL KIT

Seal Kit Series 10 Steering Control Services 1

1шт.

3

87401122

ELBOW

10 x M12 w/ STC End

1шт.

4

87401123

ELBOW

12 X M18 w/STC End

2шт.

5

87401124

90 ELBOW

Long Drop w/STC End

2шт.

6

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

4шт.

7

87689257

HOSE,12.7mm ID x 600mm L, SAE 100R17

Front Axle Steering Crossover

1шт.

8

87689261

BRACKET

Steering Hose Clamp

1шт.

9

87000151

CLAMP

2 Hole 19.05 - 19.05 mm

1шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

11

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

12

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

13

87705794

HOSE,12.7mm ID x 480mm L, SAE 100R17

Front Axle Steering Crossover

2шт.

14

701-409

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

2шт.

15

87686533

HOSE,12.7mm ID x 575mm L, SAE 100R17

Front Axle Steering Crossover

1шт.

16

86991009

CABLE TIE,222mm L, Nylon

8.86 x 2.16", Nylon, Black

2шт.

17

84208232

HOSE ASSY.

Front Axle Diff Lock

1шт.

18

84212580

HOSE ASSY.,12.5mm ID x 2377mm L, SAE 100R17

Steering LH/RH STC

1шт.

19

84362821

HOSE,12.7mm ID x 2452mm L, SAE 100R17

Steering RH STC

1шт.

20

86991007

CABLE TIE,509mm L

20 x.28", Nylon, Black

5шт.

21

214-14104

HOSE CLAMP,155.45mm - 177.8mm

2шт.

22

86991001

SPACER

Dual Swivel Saddle

4шт.

23

87707952

PROTECTIVE SLEEVE,33.5mm ID x 432mm L

Hose Protective

4шт.

24

84352407

HYDRAULIC HOSE

Steering Return - PST, to Oil Cooler Return Tube

1шт.

25

84127337

HOSE,12.7mm ID x 750mm L

Steering Supply - PST w/o Autoguidance

1шт.

25

84127341

HOSE,12.7mm ID x 700mm L

Steering Supply - PST w/Autoguidance

1шт.

26

84127336

HOSE,9.53mm ID x 825mm L

Steering Signal, Steering Load Sense - PST

1шт.
