Запчасти Case IH MAGNUM 3154 (41.200.AA[01]) - VAR - 420010, 420012, 429373, 429374, 449112, 449059 - STEERING WHEEL & COLUMN (41) - STEERING

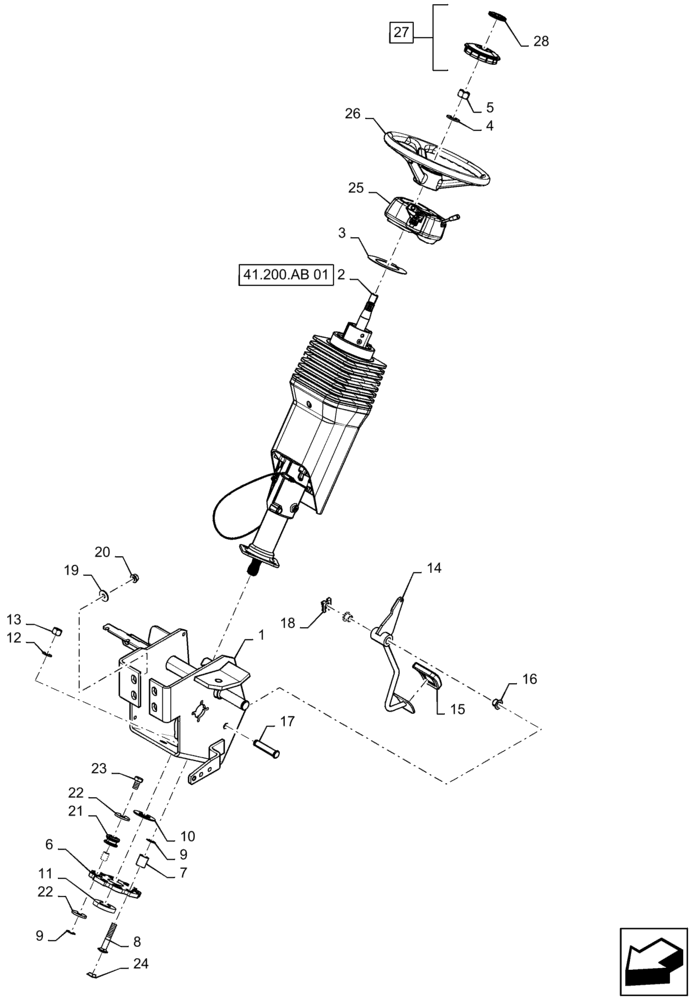

Схема запчастей Case IH MAGNUM 3154 - (41.200.AA[01]) - VAR - 420010, 420012, 429373, 429374, 449112, 449059 - STEERING WHEEL & COLUMN (41) - STEERING
14
4
16
27
21
1
9
11
3
22
25
12
20
41.200.ab 01
13
22
10
17
5
9
15
23
19
24
28
2
26
7
6
18
8

Артикул

Название

Примечание

Количество

1

84276367

BRACKET

Front Console

1шт.

2

84269917

STEERING COLUMN

1шт.

3

1977448C2

WASHER

Support, Boot

1шт.

4

895-11014

WASHER,M14 x 28 x 2.5

1шт.

5

86639148

NUT,M14 x 1.5, Cl 8

1шт.

6

366073A1

PLATE

Steering Hand Pump Mounting

1шт.

7

295478A1

SPACER

Steering Hand Pump

4шт.

8

370105A2

BOLT

Low Profile, M10 x 60

4шт.

9

329677A1

RETAINER,9.09mm ID x 19.87mm OD x 0.38mm Thk

Bolt

8шт.

10

307559A1

SEAL,25mm ID x 48mm OD x 2mm Thk

Steering Shaft Noise

1шт.

11

296775A2

SEAL

Steering Shaft Noise

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

13

412141

NUT,M10 x 1.5, Cl 8

4шт.

14

295191A3

PEDAL

Foot Release

1шт.

15

323657A1

PAD

Foot Release Pedal

1шт.

16

1533540C1

BUSHING,12mm ID x 14mm OD x 12mm L

Plastic

2шт.

17

295192A1

PIN,12mm OD x 62.5mm L

Foot Release Pedal

1шт.

18

277059A1

CLIP

12MM Retainer

1шт.

19

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

4шт.

20

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

21

434177A1

ISOLATOR

Center Bonded

4шт.

22

86636827

WASHER,0.41" ID x 1.25" OD x 0.13" Thk

8шт.

23

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

4шт.

24

84216688

RUBBER BUTTON

Button, Rubber, Square

4шт.

25

84384379

CONSOLE

CIH FNRP POD, Serial Range: -ZERD06753

1шт.

25

84384379R

REMAN ELECT CONTROL

CIH FNRP POD

1шт.

25

84384379C

CORE-ELECTRONIC CONT

Return Number

1шт.

25

47477517

MODULE

CIH FNRP POD, Start Serial: ZERD06754

1шт.

26

301200A1

STEERING WHEEL

Deluxe

1шт.

26

359033A1

STEERING WHEEL

Luxury

1шт.

27

361024A3

CAP

Incl 28

1шт.

28

87613502

INSERT

Case

1шт.

Выбрано товаров: 32
