Запчасти Case IH MAGNUM 3154 (37.100.AA[13]) - VAR - 429388 - EEC EURO DRAWBAR W/LONG LADDER FRAME - HDRA (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

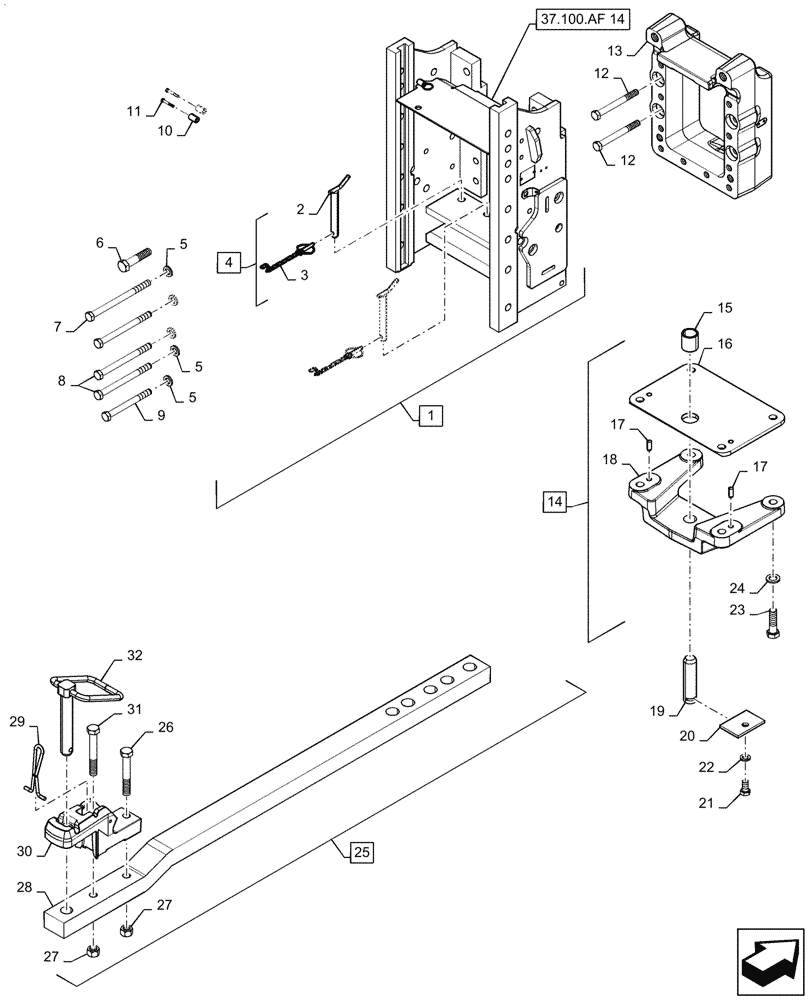

Схема запчастей Case IH MAGNUM 3154 - (37.100.AA[13]) - VAR - 429388 - EEC EURO DRAWBAR W/LONG LADDER FRAME - HDRA (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
14
11
5
21
25
8
1
13
5
18
27
10
5
37.100.af 14
28
27
7
32
17
19
29
15
24
4
31
26
12
2
16
20
30
12
3
23
17
9
6
22

Артикул

Название

Примечание

Количество

1

84583166

FRAME

Assy, German/Italian Trailer Hitch - 360, Incl 4

1шт.

2

450465A1

PIN

Drawbar Retaining

2шт.

3

449060A1

PIN,19mm OD x 149mm L

Chain Assy, Rubig Style

2шт.

4

449061A1

PIN ASSY.

Drawbar Retainer

2шт.

5

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

6

828-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

2шт.

7

828-16220

BOLT,Hex, M16 x 2 x 220mm, Cl 10.9

2шт.

8

84233540

BOLT,Hex, M16 x 190mm, Cl 12.9

6шт.

9

827-16160

BOLT,Hex, M16 x 2 x 160mm, Cl 10.9

2шт.

10

87352470

TUBE SPACER

4шт.

11

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

4шт.

12

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

4шт.

13

47411636

BRACKET

Hitch Spacer

1шт.

14

47479904

BRACKET

Assy, Drawbar Pivot Cat 3, Incl 15 - 18

1шт.

15

47481270

BUSHING

Euro Drawbar

1шт.

16

47479905

PLATE

Drawbar Pivot

1шт.

17

84529659

DOWEL,12mm OD x 40mm L

Pin, 12 x 40 mm

2шт.

18

84514147

BRACKET, PIVOT

Drawbar Pivot

1шт.

19

1982103C1

PIN,34.87mm OD x 140mm L

Drawbar Pivot

1шт.

20

87720346

RETAINER

Drawbar Pin

1шт.

21

86508623

BOLT,Hex, M16 x 30mm, Cl 10.9

1шт.

22

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

23

87015555

BOLT,Hex, M20 x 80mm, Cl 10.9

4шт.

24

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

25

84527077

DRAWBAR

Assy, Euro Drawbar W/Clevis, HD Axle, Incl 27 - 32

1шт.

26

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

1шт.

27

829-1420

NUT,M20, Cl 10

2шт.

28

84527079

DRAWBAR

European HD Axle

1шт.

29

232617A1

LATCH

Trigger Draw Pin

1шт.

30

275055A3

TOW HOOK,247.65mm L x 76.2mm W x 44.45mm Thk, 92mm Offset

Swinging Drawbar Hammerstrap

1шт.

31

827-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9

1шт.

32

275056A3

HITCH PIN,31.75mm OD x 200mm L

Assy, Drawbar Hitch Sz 4

1шт.

Выбрано товаров: 32
