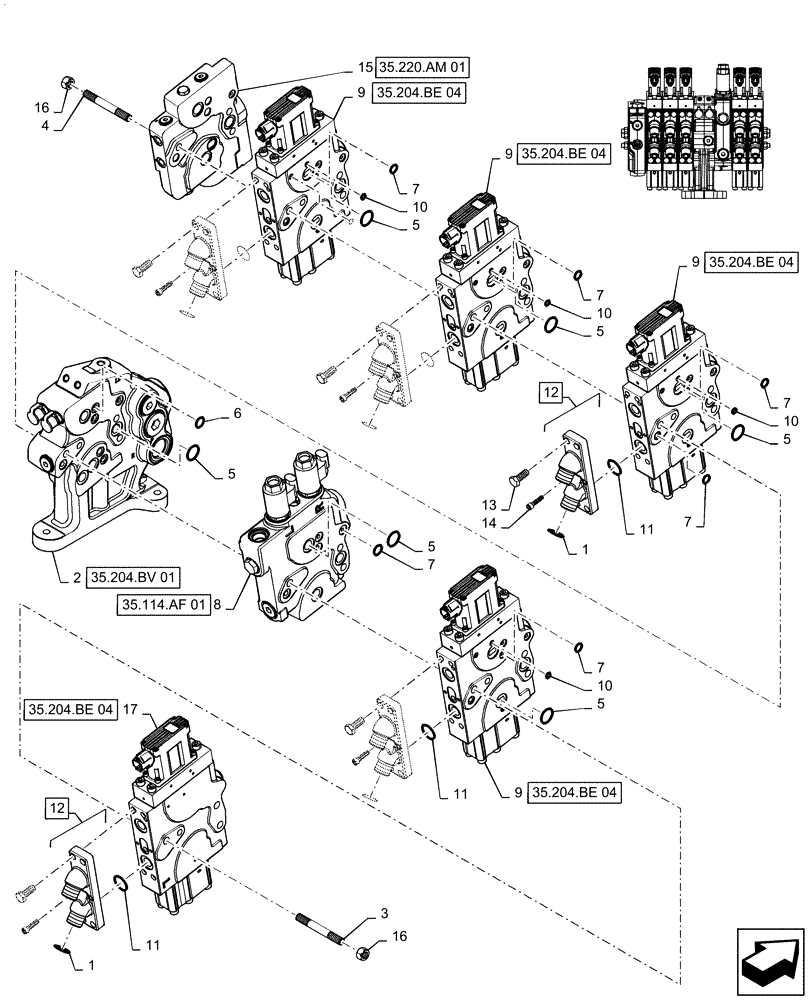

Запчасти Case IH MAGNUM 3154 (35.204.BE[15]) - VALVE ASSY, 5 STACK AUX VALVES STD/HI FLOW WITH TRAILER BRAKE (35) - HYDRAULIC SYSTEMS

1

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

10шт.

2

87659941

MANIFOLD VALVE

Inlet/Outlet Manifold Std/Hi Flow

1шт.

3

87604618

STUD,M12 x 1.75 x 185mm

RH

3шт.

4

87604617

STUD,M12 x 1.75 x 235mm L

M12 x 1.75 Length 235, LH

3шт.

5

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

17шт.

6

87635380

O-RING,2.62mm Thk x 12.37mm ID, -112, 80 Duro

6шт.

7

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

26шт.

8

84124235

VALVE

Hydraulic Assembly Hitch

1шт.

8

47434190R

REMAN-HYD VALVE

Hydraulic Assembly Hitch

1шт.

8

47434190C

CORE-VALVE HYD

Return Number

1шт.

9

87496186

HYD VALVE SECTION

Assy Aux Valve Main

4шт.

9

47434186R

REMAN-HYD VALVE

Assy Aux Valve Main

4шт.

9

47434186C

CORE-VALVE HYD

Return Number

4шт.

10

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

12шт.

11

87635387

O-RING,2.62mm Thk x 21.89mm ID, -118, 80 Duro

15шт.

12

435643A1

COVER

Assy, Port Aux; Incl 1

5шт.

13

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

20шт.

14

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

10шт.

15

87706526

HYD VALVE SECTION

Trailer Brake

1шт.

16

829-1312

NUT,M12 x 1.75, Cl 10

6шт.

17

87496189

VALVE SECTION,Assembly, Aux Valve

Aux Valve

1шт.

17

47434188R

REMAN-HYD VALVE

Aux Valve

1шт.

17

47434188C

CORE-VALVE HYD

Return Number

1шт.
