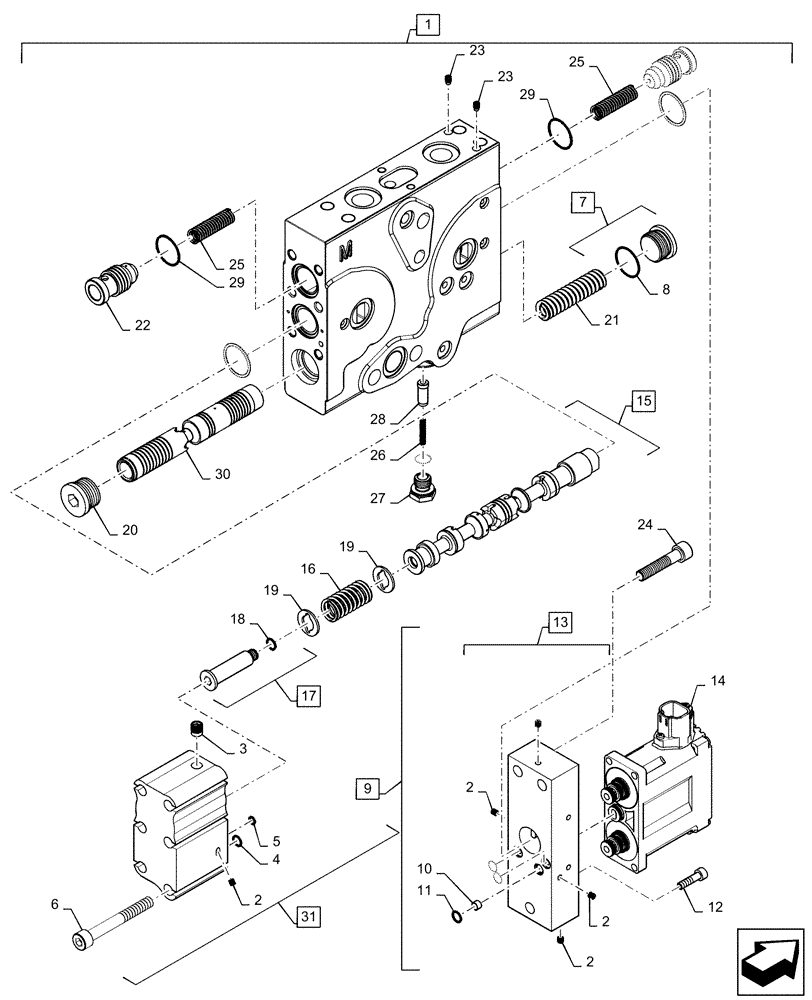

Запчасти Case IH MAGNUM 3154 (35.204.BE[01]) - REMOTE CONTROL VALVE - BSN ZGRF01054 (35) - HYDRAULIC SYSTEMS

1

47595556

VALVE

Assy, Main CCH; Incl 2 -31

1шт.

1

47595556R

REMAN-HYD VALVE

Assy, Main CCH; Incl 2 -31

1шт.

1

47595556C

CORE-VALVE HYD

Return Number

1шт.

1

47595559

VALVE

Assy, Left CCH; Incl 2 -31

1шт.

1

47595559R

REMAN-HYD VALVE

Assy, Left CCH; Incl 2 -31

1шт.

1

47595559C

CORE-VALVE HYD

Return Number

1шт.

1

47595558

VALVE

Assy, Right CCH; Incl 2 -31

1шт.

1

47595558R

REMAN-HYD VALVE

Assy, Right CCH; Incl 2 -31 - Conditional Sub to 47735820R

1шт.

1

47595558C

CORE-VALVE HYD

Return Number

1шт.

2

282836A1

PLUG,4mm OD x 4mm L

Expansion 4MM

10шт.

3

282839A1

PLUG,8mm OD x 8.5mm L

Expansion

1шт.

4

87635378

O-RING,1.78mm Thk x 5.28mm ID, -9, 80 Duro

1шт.

5

87635377

O-RING,1.78mm Thk x 2.9mm ID, -6, 80 Duro

2шт.

6

864-8065

HEX SOC SCREW,M8 x 65mm, Cl 8.8

6шт.

7

47426874

PLUG,7/8" - 14

Spring Stop; Incl 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

47434056

SOLENOID

Assy, Pilot Head; Incl 10 - 14

1шт.

9

47434056R

REMAN-SOLENOID

Assy. Pilot Head

1шт.

9

47434056C

CORE-SOLENOID

Return Number

1шт.

10

87714123

FILTER

Filtration 100-150 Micron

1шт.

11

87722012

O-RING,2.62mm Thk x 4.42mm ID, -106, 80 Duro

3шт.

12

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

4шт.

13

NSS

NOT SOLD SEPARAT

Block Assy, Solenoid Adapter; Incl in 9

1шт.

14

NSS

NOT SOLD SEPARAT

Solenoid, Pilot Head; Incl in 9

1шт.

15

47499455

SPOOL

Assy, Main; Incl 16 - 19

1шт.

16

47423002

SPRING,17.6mm OD x 45.86mm L

Centering Aux

1шт.

17

47426760

PLUG,5/16" - 24

Extension; Incl 18

1шт.

18

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

19

87437168

WASHER,11.75mm ID x 21mm OD x 1.5mm Thk

Centering

2шт.

20

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

1шт.

21

436854A1

SPRING,15.11mm OD x 63.35mm L

Compression

1шт.

22

47640123

POPPET

Lock Check

2шт.

23

84579020

PLUG,1.81" - 2.75"

Expander

2шт.

24

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

3шт.

25

87437167

VALVE SPRING,8.08mm ID x 10.92mm OD x 53.27mm L

Aux Load Check Return

2шт.

26

87648596

SPRING,3.81mm OD x 23.19mm L

Aux Signal Check

1шт.

27

87648607

PLUG,M12 x 1.5 ORB

Load Sense

1шт.

28

87648631

PIN,8mm OD x 19mm L

Load Sense

1шт.

29

47422966

SEAL,23.52mm ID x 1.78mm Thk

O-Ring

4шт.

30

47434055

SPOOL,15.9mm ID x 18.75mm OD x 133.6mm L

Pressure Comp

1шт.

31

NSS

NOT SOLD SEPARAT

Valve Body Assy, EH Pilot ; Incl 2 - 6; Incl in 1

1шт.
