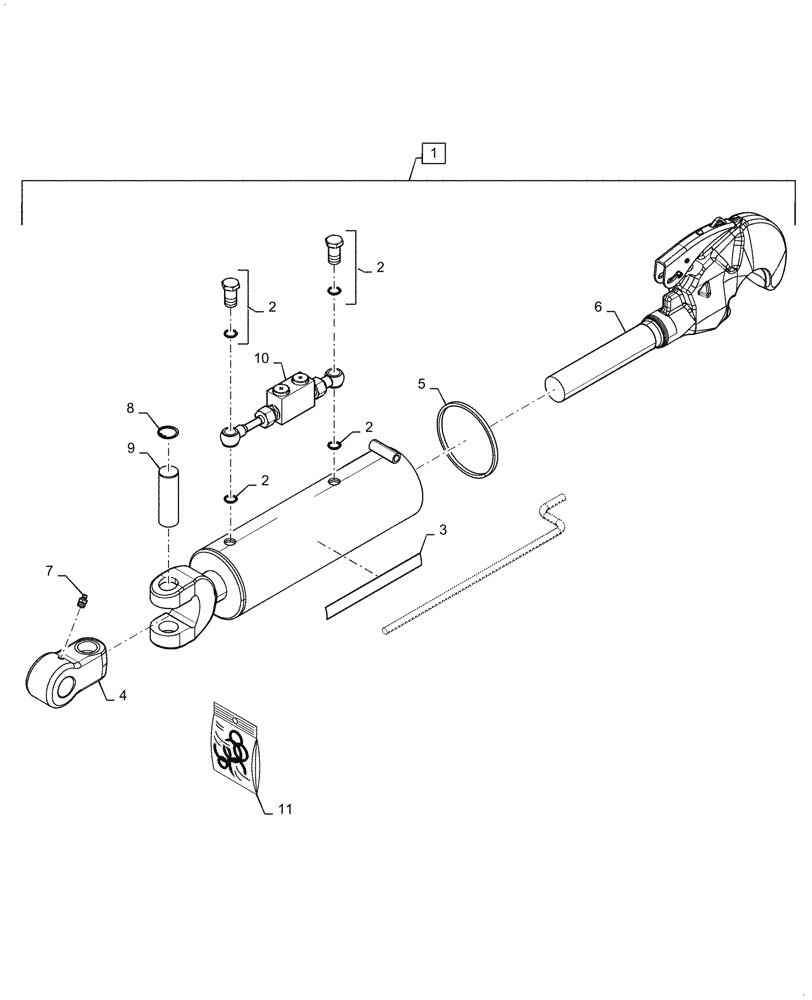

Запчасти Case IH MAGNUM 3154 (35.124.AD[02]) - VAR - 429409, 429410 - TOP LINK, HYDRAULIC, CLAW, STANDARD REAR AXLE (35) - HYDRAULIC SYSTEMS

1

84559243

UPPER LINK

Cat 4 Hydraulic Claw, Standard Rear Axle, Incl 2 - 11

1шт.

2

47392862

SERVICE KIT

Banjo Fitting

1шт.

3

47392864

DECAL

Cylinder Position

1шт.

4

84418714

CLEVIS

Upper Link

1шт.

5

47392863

SNAP RING

1шт.

6

47392859

LINK ARM ASSY KIT

Cat 4 Hydraulic Claw, Standard Rear Axle

1шт.

7

378716A1

LUBE NIPPLE,Hex, M10 x 1 x 17.5mm L

1шт.

8

800-2128

SNAP RING,M28, Int

1шт.

9

310476A2

PIN

Rod Pivot

1шт.

10

87707446

LOCK VALVE

1шт.

11

87707546

SEAL KIT

1шт.
