Запчасти Case IH MAGNUM 3154 (35.106.AD[03]) - VAR- 420301, 420302 - POWERSHIFT - HYDRAULIC SYSTEM, PISTON PUMP & FILTER, STANDARD & HIGH CAPACITY - ASN ZERF09032 (35) - HYDRAULIC SYSTEMS

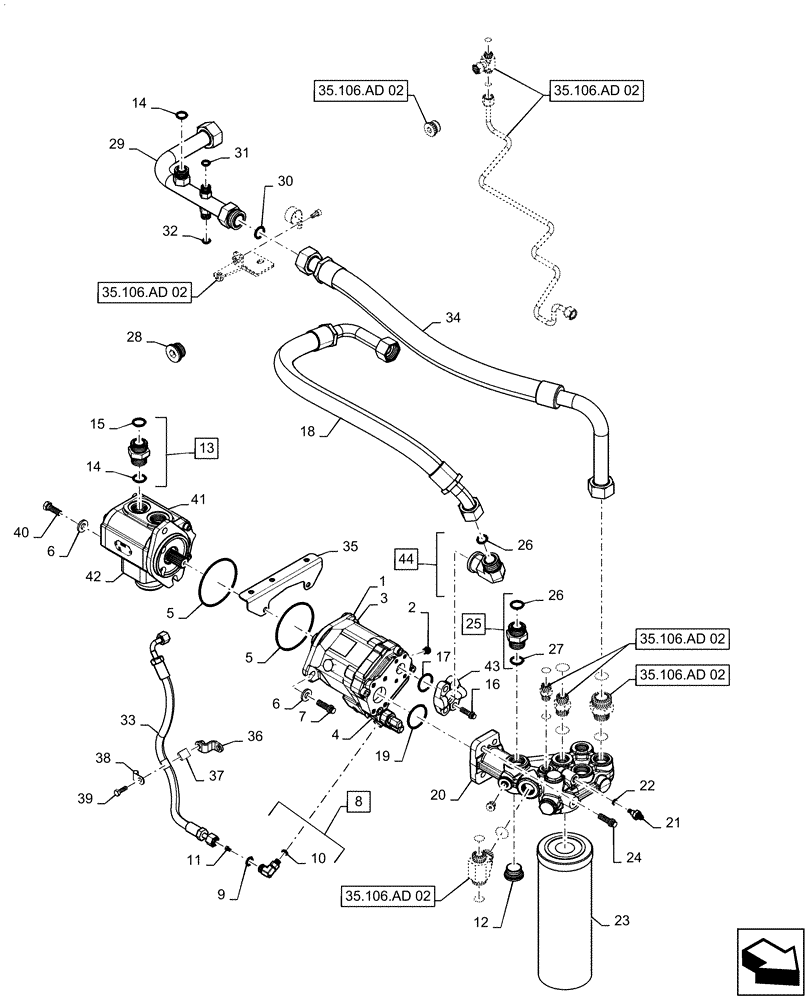

Схема запчастей Case IH MAGNUM 3154 - (35.106.AD[03]) - VAR- 420301, 420302 - POWERSHIFT - HYDRAULIC SYSTEM, PISTON PUMP & FILTER, STANDARD & HIGH CAPACITY - ASN ZERF09032 (35) - HYDRAULIC SYSTEMS
35.106.ad 02
17
22
36
7
15
12
18
21
14
16
4
31
26
29
30
10
9
6
1
37
5
11
23
19
38
6
35
14
43
3
26
42
27
41
44
20
8
2
34
5
13
32
25
28
39
33
24
40
35.106.ad 02
35.106.ad 02
35.106.ad 02
35.106.ad 02
35.106.ad 02

Артикул

Название

Примечание

Количество

1

87538174

PUMP,156 LPM (41.3 GPM)

1шт.

Standard Flow Hydraulic Pump (Var - 420301)

1шт.

1

87538174R

REMAN-HYD PUMP

1шт.

Standard Flow Hydraulic Pump (Var - 420301)

1шт.

1

87538174C

CORE-HYDRAULIC PUMP

Return Number

1шт.

Standard Flow Hydraulic Pump (Var - 420301)

1шт.

1

87538168

PUMP,211 LPM (55.6 GPM)

1шт.

High Capacity Hydraulic Pump (Var - 420302)

1шт.

1

87538168R

REMAN-HYD PUMP

1шт.

High Capacity Hydraulic Pump (Var - 420302)

1шт.

1

87538168C

CORE-HYDRAULIC PUMP

Return Number

1шт.

High Capacity Hydraulic Pump (Var - 420302)

1шт.

2

218-5157

PLUG,Hex Hd, 7/8"-14 ORB

1шт.

3

87489367

SERVICE KIT

Compensator

1шт.

4

87553152

GASKET

Control Valve

1шт.

5

238-5345

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

2шт.

6

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

7

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

2шт.

8

451226A1

90 ELBOW

Use With Non-Suspended MFD Axle; Incl 9, 10

1шт.

8

86994121

TEE

Use With Suspended MFD Axle; Not Illustrated; Incl 9, 10

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

11

133519C1

SCREEN

1шт.

12

221527A1

PLUG,Hex Soc, M33 x 2, ORB

1шт.

13

700-164

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 14, 15

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

15

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

16

868-10030

12 PT SCREW,M10 x 30mm, Cl 12.9

4шт.

17

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

18

47671564

HYDRAULIC HOSE

PFC Pump Outlet

1шт.

19

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

Standard Flow Hydraulic Pump (Var - 420301)

1шт.

19

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

High Capacity Hydraulic Pump (Var - 420302)

1шт.

20

47608783

FILTER HEAD

1шт.

Standard Flow Hydraulic Pump (Var - 420301)

1шт.

20

47608784

FILTER HEAD

1шт.

High Capacity Hydraulic Pump (Var - 420302)

1шт.

21

1957801C1

PRESSURE SWITCH

N/O, Incl 22

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

84487937

HYDRAULIC OIL FILTER,Spin On, 14.48" OAL

Charge/Lube

1шт.

24

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

1шт.

25

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 26, 27

3шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

27

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

28

221527A1

PLUG,Hex Soc, M33 x 2, ORB

Standard Flow

1шт.

29

84274474

HYD TUBE

Auxillary Manifold Return

1шт.

30

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

31

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

32

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

33

47413295

HOSE,9.53mm ID x 615mm L, SAE 100R17

Pump Load Sense

1шт.

34

87385538

HOSE

Auxillary Manifold Return

1шт.

35

451054A1

BRACKET

A Tube Clamp

1шт.

36

86988840

BRACKET

Rear Supply Tube Clamp

1шт.

37

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

1шт.

38

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

39

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

40

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

41

87407008

SERVICE KIT

Charge Pump

1шт.

42

84347565

PUMP,37.4 CC

Charge Lube

1шт.

43

86980728

COLLAR CLAMP

1шт.

44

87677649

90 ELBOW

Split Flange, Incl 26

1шт.

Выбрано товаров: 62
