Запчасти Case IH MAGNUM 3154 (25.100.AB[01]) - FRONT AXLE MOUNTING PARTS, NON-SUSPENDED AXLE (25) - FRONT AXLE SYSTEM

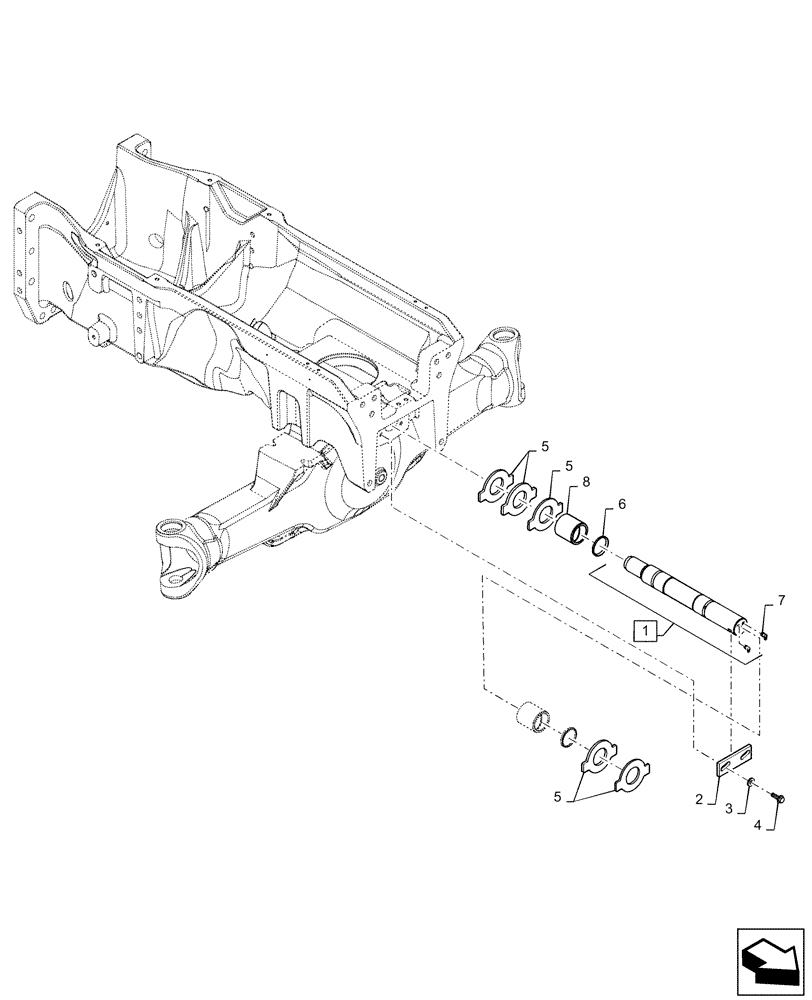

Схема запчастей Case IH MAGNUM 3154 - (25.100.AB[01]) - FRONT AXLE MOUNTING PARTS, NON-SUSPENDED AXLE (25) - FRONT AXLE SYSTEM
7
1
5
4
5
5
6
2
3
8

Артикул

Название

Примечание

Количество

1

87400196

PIN ASSY.,60.26mm OD x 510mm L

Pivot; Incl 11

1шт.

2

84409103

PLATE

Front Axle Pivot

1шт.

3

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

4

857-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

2шт.

5

87309060

THRUST WASHER,60.8mm ID x 112mm OD x 7.75mm Thk

5.75/7.75mm

1шт.

5

87309061

THRUST WASHER,6.25mm Thk

6.25/8.25mm

1шт.

5

87309062

THRUST WASHER,7mm Thk

7.00/9.00mm

1шт.

5

87309063

THRUST WASHER,7.5mm Thk

7.50/9.50mm

1шт.

5

87369711

THRUST WASHER,60.8mm ID x 112mm OD x 8mm Thk

8.00/10.00mm

1шт.

6

87400202

SEAL

MFD Pivot Pin Dirt Excluder

2шт.

7

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

1шт.

8

87433501

BUSHING,60.46mm ID x 74.97mm OD x 75.78mm L

MFD Axle Pivot Pin

2шт.

Выбрано товаров: 12
