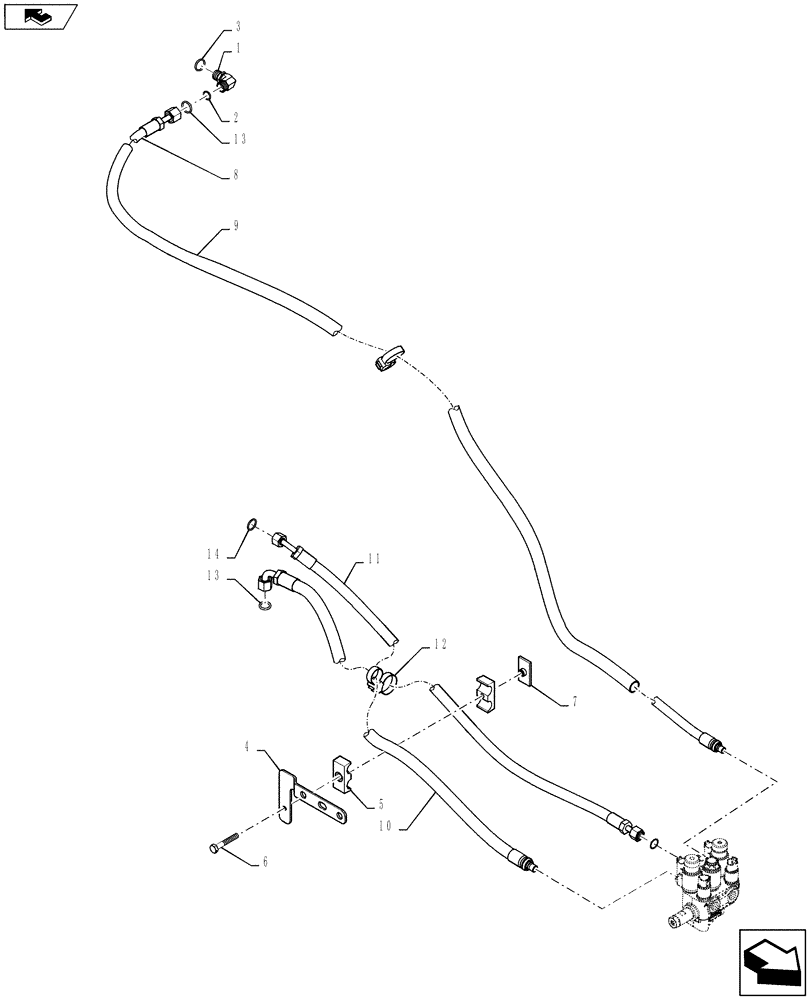

Запчасти Case IH MAGNUM 315 (25.122.AL[04]) - DANA AXLE - HYDRAULIC SYSTEM, CLASS V, SUSPENDED MFD AXLE-MAGNUM 290,315,340 (25) - FRONT AXLE SYSTEM

1

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 2, 3

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

84351261

BRACKET

1шт.

5

329804A1

CLAMP,22mm ID

1шт.

6

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

7

384871A1

PLATE

1шт.

8

84354237

HOSE

Suspended Axle Valve Supply, Inc. 13 (Qty 1)

1шт.

9

87403388

CONDUIT

1шт.

10

84354235

HOSE

Suspended Axle Valve Return, Inc. 13 (Qty 1)

1шт.

11

84354236

HOSE

Suspended Axle Valve, Load Sense, Inc. 14

1шт.

12

86991000

CLAMP

1шт.

13

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

14

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
