Запчасти Case IH MAGNUM 315 (25.108.AB[04]) - VAR - 420224, 420228 CNH STEERING KNUCKLE AND HUB, CLASS 4.75 (25) - FRONT AXLE SYSTEM

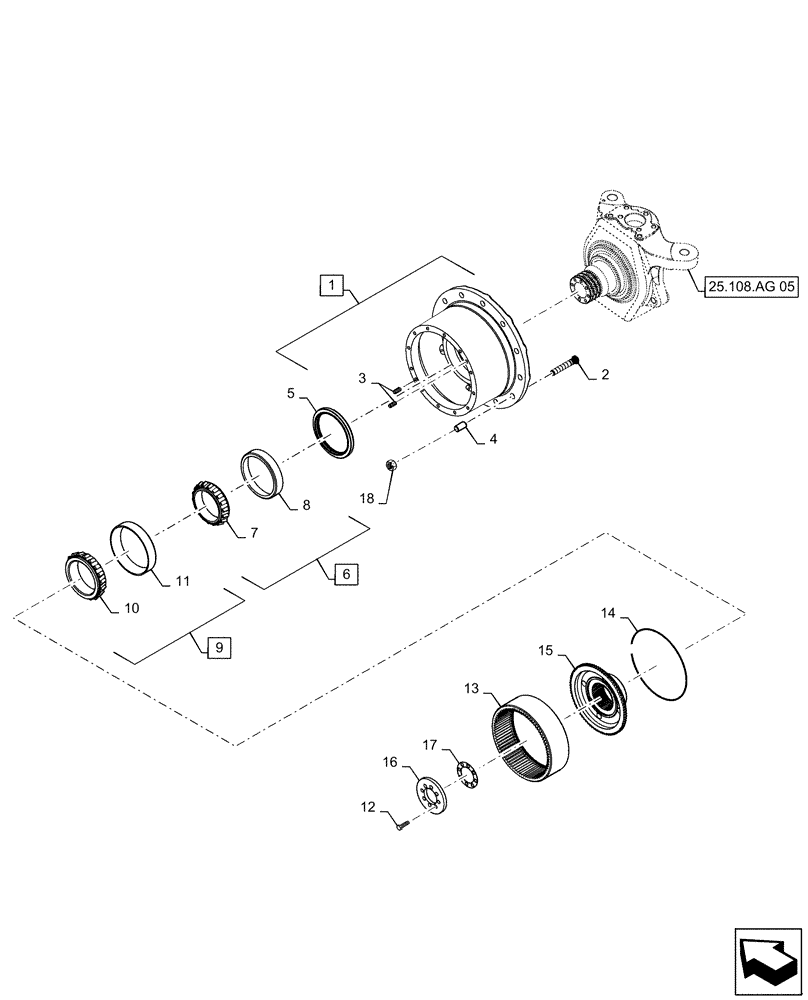

Схема запчастей Case IH MAGNUM 315 - (25.108.AB[04]) - VAR - 420224, 420228 CNH STEERING KNUCKLE AND HUB, CLASS 4.75 (25) - FRONT AXLE SYSTEM
18
6
5
9
11
3
1
2
12
25.108.ag 05
8
17
7
16
4
10
14
13
15

Артикул

Название

Примечание

Количество

1

84347201

HOUSING

Assy, Wheel Hub, Incl 2 - 4

1шт.

2

47394106

STUD

Wheel M20 x 1.5 x 79.5L

12шт.

3

837-12030

DOWEL,M12 x 30mm OAL

2шт.

4

87555323

PROTECTIVE SLEEVE

Stud

12шт.

5

87390178

SEAL

Hub

1шт.

6

84557192

TAPERED BEARING,123.83mm ID x 182.56mm OD x 39.69mm W

Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Bearing Cone

1шт.

8

NSS

NOT SOLD SEPARAT

Bearing Cup

1шт.

9

84557189

TAPERED BEARING,133.35mm ID x 196.85mm OD x 46.04mm W

Incl 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Bearing Cone

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing Cup

1шт.

12

47562559

BOLT,Hex, M12 x 40mm, Cl 10.9

Torque, M12 x 40 10.9 PHC

8шт.

13

84345698

GEAR

Ring Final Drive 80T

1шт.

14

84346778

RING

Retaining

1шт.

15

84345697

CARRIER

Ring Gear Planetary

1шт.

16

84338966

RING CARRIER

Retaining

1шт.

17

47492060

SHIM KIT

65 x 102.3 W/ 8X DIA 13 Hole

1шт.

18

253212A1

NUT,M20 x 1.5, Class 10

M20 x 1.5

12шт.

Выбрано товаров: 18
