Запчасти Case IH MAGNUM 310 (21.155.AN[05]) - VAR - 429330, 429331, 429332, 429333 - POWERSHIFT - RANGE TRANSMISSION, COUNTERSHAFT (21) - TRANSMISSION

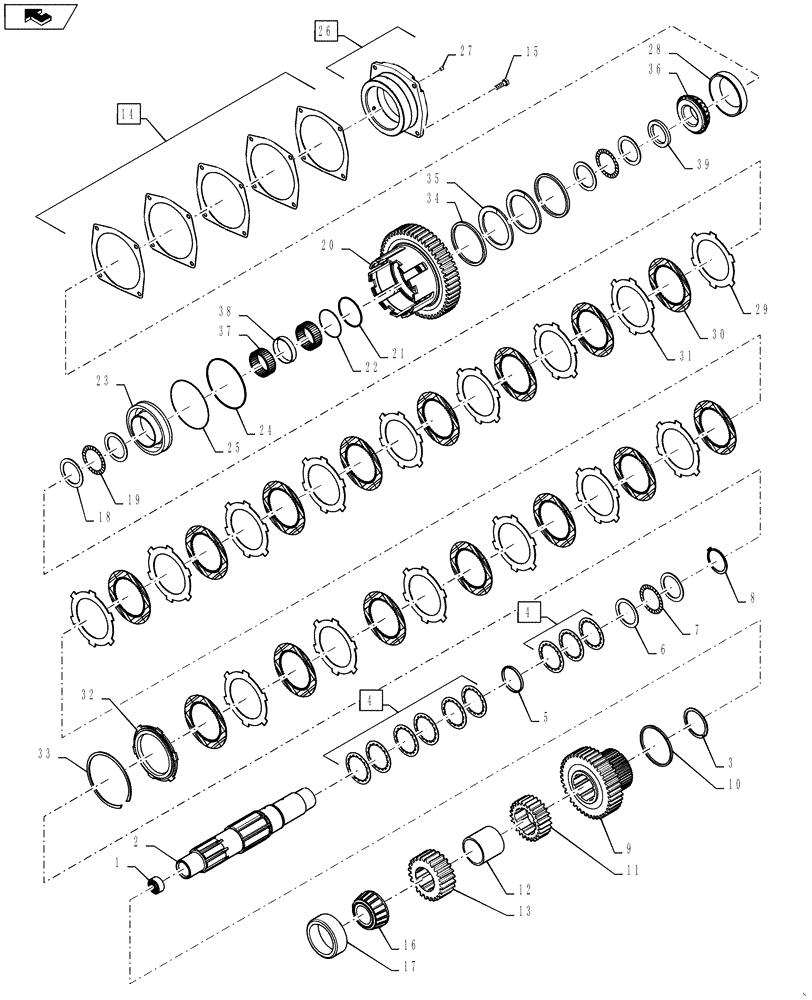

Схема запчастей Case IH MAGNUM 310 - (21.155.AN[05]) - VAR - 429330, 429331, 429332, 429333 - POWERSHIFT - RANGE TRANSMISSION, COUNTERSHAFT (21) - TRANSMISSION
30
13
8
24
31
6
39
25
5
37
22
29
4
28
4
12
2
32
20
18
26
23
1
21
19
3
15
10
9
14
home
36
27
33
16
7
38
17
35
11
34

Артикул

Название

Примечание

Количество

1

1277191C1

NEEDLE BEARING

Needle

1шт.

2

87434362

SHAFT ASSY.

Range Countershaft, IPTO Intermediate Drive B10 TS, Serial Range: -ZER*08526

1шт.

2

47459750

COUNTERSHAFT

Range, Start Serial: ZER*08527

1шт.

3

144348C1

SNAP RING,Ext Rtng, 66.294mm ID

1шт.

4

87425389

BELLEVILLE SPRING

11шт.

5

87434656

SEAL,63.75mm ID x 67.75mm OD x 5.5mm Thk

Clutch Lube

1шт.

6

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

2шт.

7

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

1шт.

8

87639535

SNAP RING,Ext, #250, 59.842mm ID

1шт.

9

1285978C1

PINION

Med Range Driven 39T

1шт.

10

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

Shift Clutch TFE Seal

1шт.

11

220057A1

GEAR

Hi Range Driven 25T

1шт.

12

1286041C2

SPACER

HI/Constant Mesh Gear, Serial Range: -ZER*08526

1шт.

12

47459738

SPACER

HI/Constant Mesh Gear, Start Serial: ZER*08527

1шт.

13

1285990C2

PINION

Constant Mesh Driver 23T, Serial Range: -ZER*08526

1шт.

13

47459334

GEAR

Constant Mesh Driver 23T, Start Serial: ZER*08527

1шт.

14

93277C1

SHIM KIT

5шт.

15

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

16

253485A1

ROLLER BEARING,49.22mm ID x 44.39mm W

1шт.

17

253486A1

BEARING CUP,103.2mm OD x 36.41mm W

1шт.

18

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

4шт.

19

374011R1

BEARING ASSY,2.257" ID x 2.99" OD

2шт.

20

87439841

GEAR

Low Range Driven 54T

1шт.

21

1286077C1

RING,74.96mm ID x 78mm OD x 2.28mm Thk

Low Range Driven ID TFE

1шт.

22

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

1шт.

23

242491A5

PISTON

Low Range Shift Clutch

1шт.

24

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

Shift CL Piston OD TFE

1шт.

25

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

1шт.

26

87435631

CAGE

Assy, Range C Shaft

1шт.

27

87520608

EXPANSION PLUG,8mm

1шт.

28

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

1шт.

29

87738316

DISC,107mm ID x 158mm OD x 2.01mm Thk

Clutch Separator

1шт.

30

86990276

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

Shift Clutch Friction

15шт.

31

87622084

DISC,107mm ID x 158mm OD x 1.22mm Thk

Shift Clutch Separator

14шт.

32

1342645C3

CLUTCH DISC

1шт.

33

1285996C1

SNAP RING,151mm OD, Internal

Backing Plate

1шт.

34

1286028C2

RING,109.41mm ID x 113.41mm OD x 2.87mm Thk

Low Range Driven Gear

2шт.

35

297418A2

SEALING RING,Locking, 105.68mm ID x 113.05mm OD x 3.68mm Thk

Cast Iron Sealing

2шт.

36

287679C1

BEARING ASSY,50.8mm ID x 26.91mm W

1шт.

37

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

2шт.

38

93269C1

SPACER,62.45mm ID x 66.48mm OD x 12.68mm L

Bearing

1шт.

39

1286038C2

SPACER

Range Countershaft Front Bearing

1шт.

Выбрано товаров: 42
