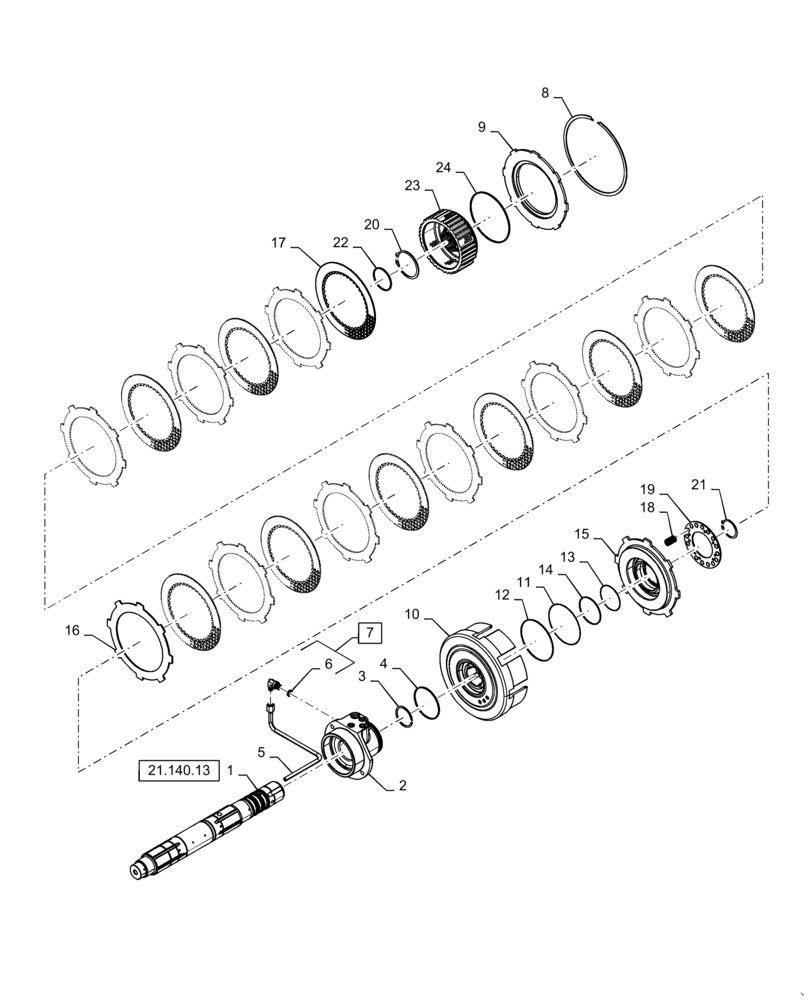

Запчасти Case IH MAGNUM 310 (21.155.AI[01]) - VAR - 429330, 429331, 429332, 429333 - POWERSHIFT - RANGE TRANSMISSION, MASTER CLUTCH (21) - TRANSMISSION

1

87434653

SHAFT ASSY.

Range Input

1шт.

2

254337A2

CAGE

Range Input Shaft Bearing

1шт.

3

101-11225

SNAP RING,#225, Ext

1шт.

4

1286027C2

RING,91.31mm ID x 95.31mm OD x 2.87mm Thk

1шт.

5

1963935C2

TUBE

Constant Mesh Gear Lube

1шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl 6

1шт.

8

1963876C1

SNAP RING,249mm OD, Internal

1шт.

9

235851A2

DISC,151.3mm ID x 244mm OD x 13mm Thk

Backing

1шт.

10

87311451

HOUSING

Carrier, Master Clutch

1шт.

11

93138C1

RING,1.78mm Thk x 114.02mm ID, -47, 60 Duro

1шт.

12

92562C1

RING,120.46mm ID x 123.5mm OD x 2.28mm Thk

1шт.

13

93137C1

RING,1.78mm Thk x 72.75mm ID, -40, 60 Duro

1шт.

14

92561C1

RING,78.46mm ID x 81.5mm OD x 2.28mm Thk

1шт.

15

112299A2

PISTON ASSY

Master Clutch

1шт.

16

1285974C1

BRAKE PLATE

Separator

9шт.

17

87730817

CLUTCH DISC

Friction

9шт.

18

93136C2

SPRING,18.29mm OD x 35.82mm L

16шт.

19

112329A3

RETAINER

Spring Retainer

1шт.

20

100-11200

SNAP RING,#200, Ext

1шт.

21

100-11306

SNAP RING,#306, Ext

1шт.

22

92555C1

RING,Locking, 63.81mm ID x 67.81mm OD x 2.87mm Thk

1шт.

23

235913A3

HUB

Master Clutch

1шт.

24

235987A1

RING,146.5mm ID x 150.5mm OD x 2.87mm Thk

1шт.
