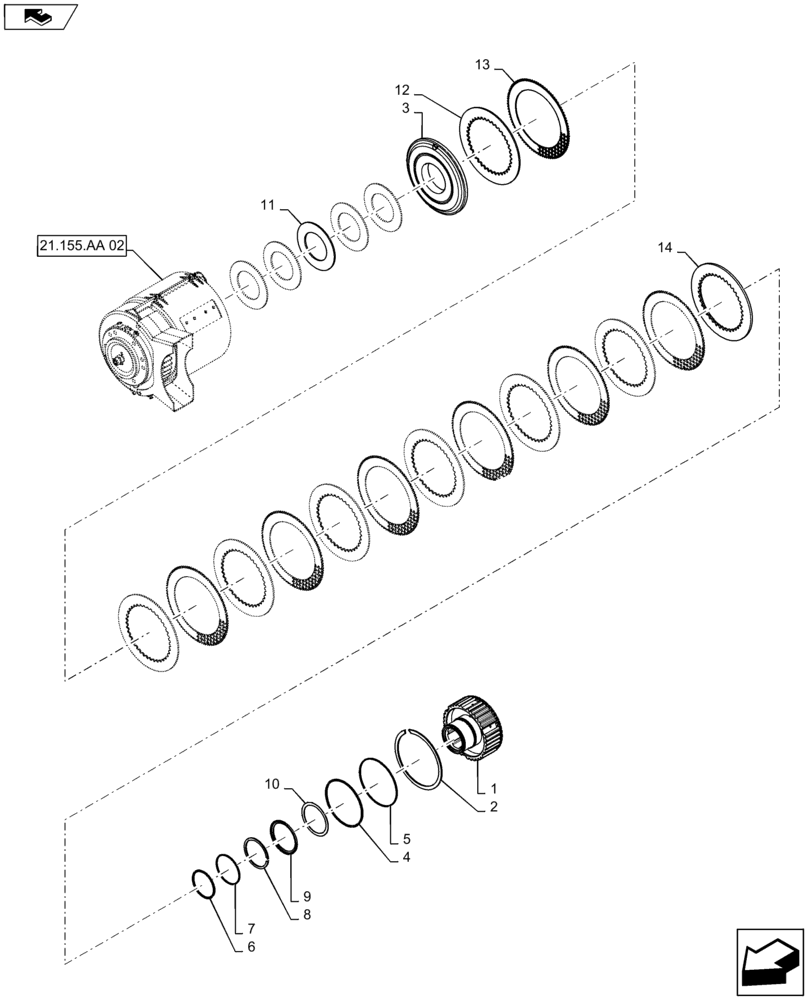

Запчасти Case IH MAGNUM 310 (21.155.AA[06]) - POWERSHIFT - RANGE TRANSMISSION - PARK EMERGENCY BRAKE - EU ONLY (21) - TRANSMISSION

1

84524000

HUB

Emergency Brake

1шт.

2

87347811

CIRCLIP

Retaining, External

1шт.

3

84524002

PISTON

Emergency Brake

1шт.

4

87037455

O-RING,0.103" Thk x 5.237" ID, -160, Cl 7, 75 Duro

1шт.

5

87433971

SEAL,139.65mm ID x 143.05mm OD x 2.87mm Thk

Park Brake, MFD, Large

1шт.

6

238-7151

O-RING,0.103" Thk x 2.99" ID, -151, Cl 7, 75 Duro

1шт.

7

87433970

SEAL,85.4mm ID x 88.8mm OD x 2.87mm Thk

Park Brake, MFD, Small

1шт.

8

87434027

CIRCLIP

Retaining, External

1шт.

9

84530165

SNAP RING

Retaining

1шт.

10

87329116

SHIM,84.5mm ID x 100mm OD x 1.52mm Thk

1шт.

10

47572512

SHIM,84.5mm ID x 100mm OD x 1.27mm Thk

1шт.

10

87639547

SHIM,84.5mm ID x 100mm OD x 1mm Thk

1шт.

11

87305967

BELLEVILLE SPRING

Park Brake and MFD

5шт.

12

87449793

SEPARATOR

Plate

7шт.

13

84159178

CLUTCH PLATE,173mm ID x 238mm OD x 2.85mm Thk

Friction

7шт.

14

87347805

BACKING PLATE

39T

1шт.
